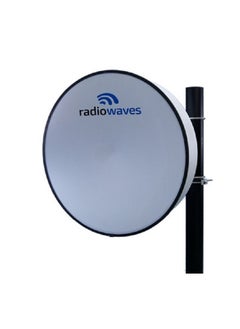

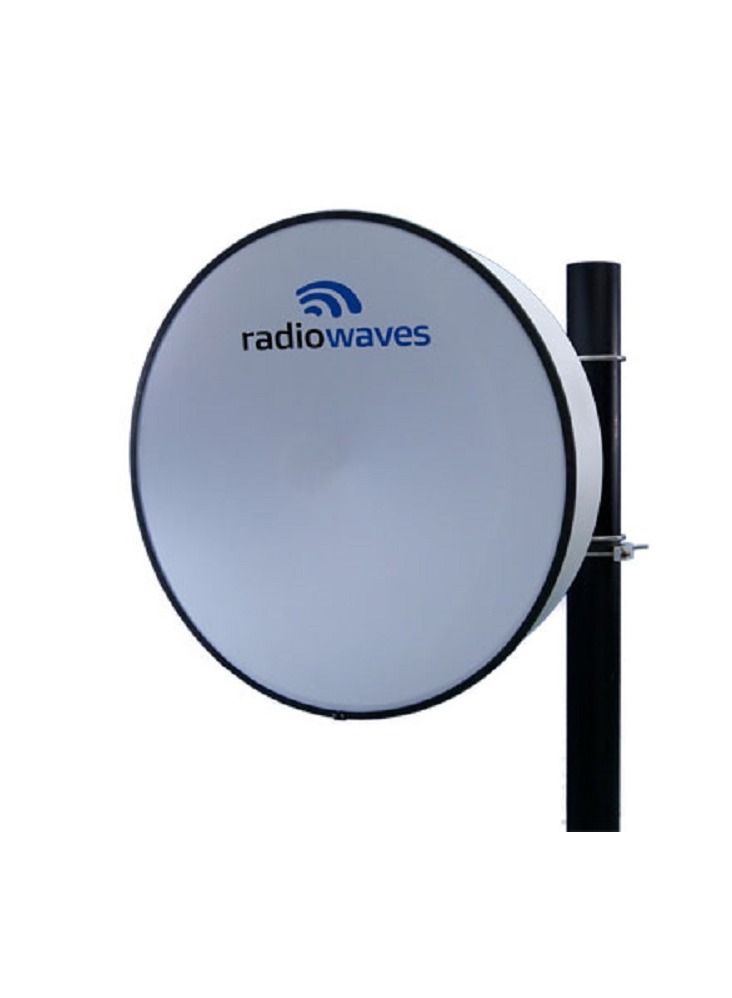

High Performance, 3' (0.9M) Parabolic, 10.7 - 11.7 GHz, Direct Mount, REMEC Rectangular Antenna

OverviewThe HP High Performance Series by RadioWaves offers a full line of high performance parabolic antennas engineered to provide ETSI class 2/3 radiation pattern performance as well as excellent gain. RadioWaves field-proven pre-assembled antennas and robust pole-mounts ensure “set and forget” installation with minimal post-installation maintenance. The included radome ensures robust and reliable performance under the most challenging conditions. If it’s rugged, it must be RadioWaves! FEATURES AND BENEFITS High Performance ETSI Class 2/3* Parabolic Antennas – Excellent performance for a wide range of applications Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality *ETSI Class depends on frequency band General Specifications Antenna Type High Performance Parabolic Reflector Antenna 3 ft | 0.9 m Polarization Single Electrical Specifications Operating Frequency Band 10.7 - 11.7 GHz Half Power Beamwidth, Horizontal 2.1 degrees Half Power Beamwidth, Vertical 2.1 degrees Cross-Polarization Discrimination 30 dB Front to Back Ratio (F/B) 62 dB Gain, Low Frequency 38.1 dBi Gain, Mid Frequency 38.5 dBi Gain, High Frequency 39 dBi VSWR 1.37:1 Return Loss -16.1 dB Mechanical Specifications Fine Azimuth Adjustment +/- 10 degrees Fine Elevation Adjustment +/- 10 degrees Mounting Pipe Diameter, Min 2.5 inch | 5.1 cm Mounting Pipe Diameter, Max 4.5 inch | 11.4 cm Net Weight 50 lbs | 12.3 kg Wind Velocity Operational 90 mph | 145 km/h Wind Velocity Survival Rating 125 mph | 201 km/h Mechanical Configuration HP3 Axial Force (FA) 403 lbs | 1792 N Side Force (FS) 200 lbs | 890 N Twisting Moment (MT) 344 ft-lbs | 466 Nm Operating Temperature Range -40 to +60 C Max Pressure, PSIG, (if waveguide interface) 5 Regulatory Compliance FCC Part 101 Cat. A Industry Canada Compliance SRSP310.7 B ETSI 302217 R1 C3 RoHS-compliant Yes Shipping Information Package Type Wood Crate Gross Weight 143 lbs | 69.8 kg Dimensions, L x W x H 47 x 28 x 48in | 119 x 71 x 122 cm Shipping Volume 36.56 cu ft | 1.04 cu m
