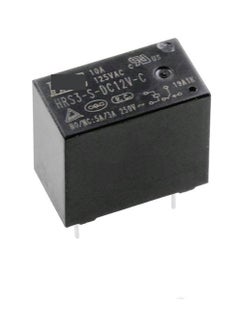

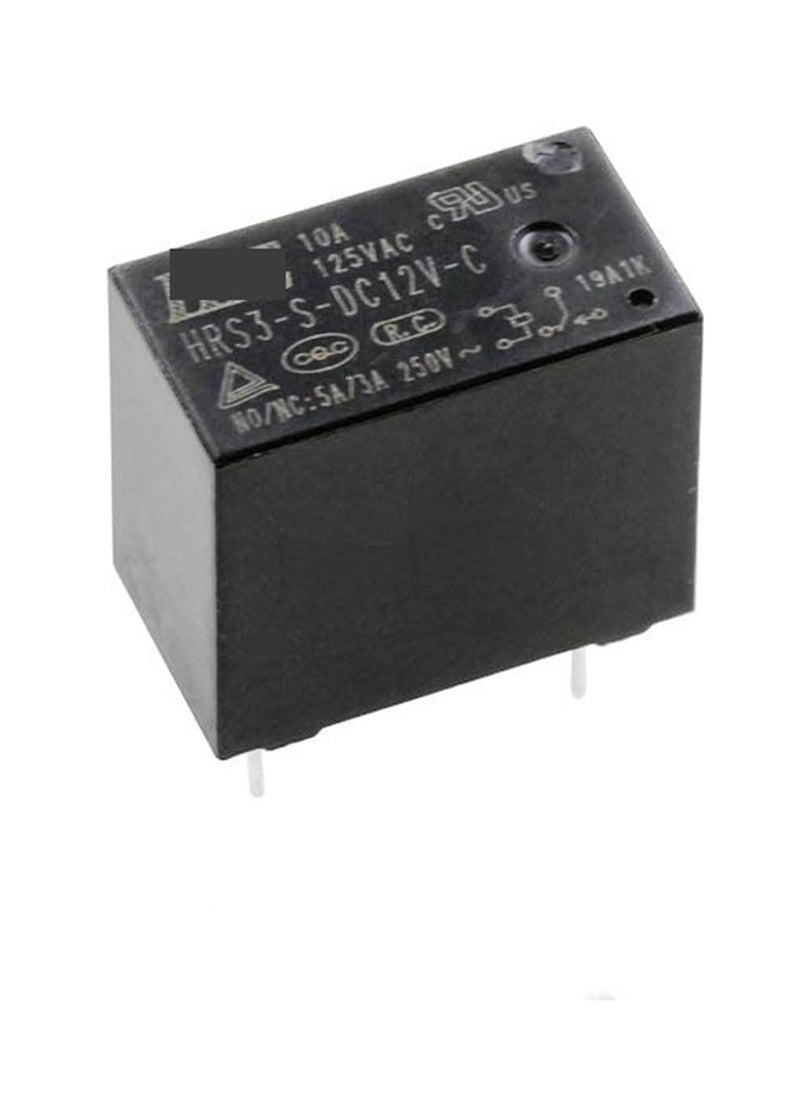

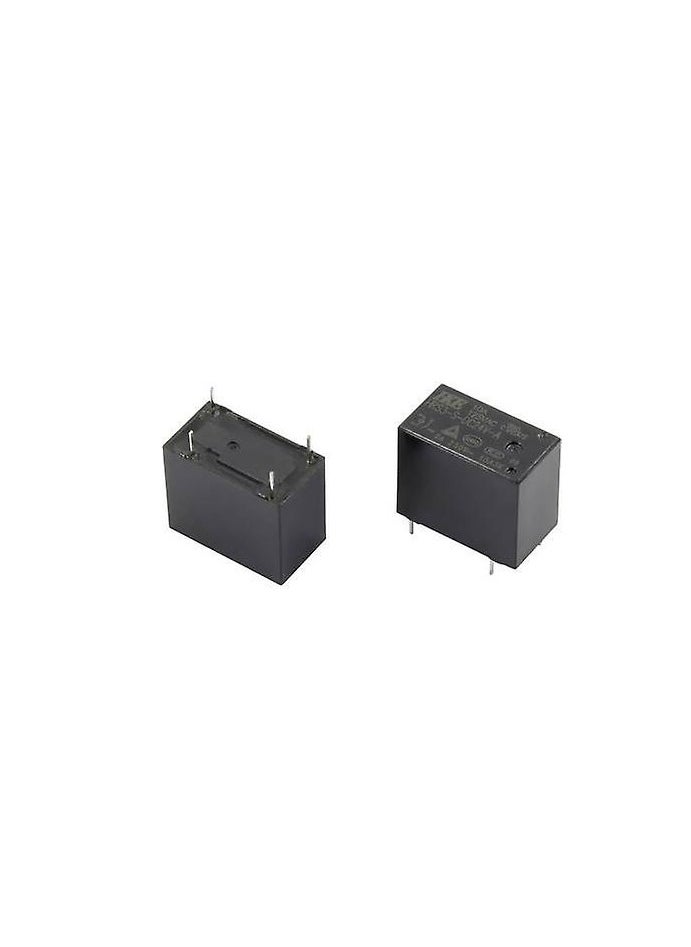

HKE PCB RELAY 12VDC 10A 4PIN

OverviewType HRS3-S-DC12V-A Coil nominal voltage 12 V DC Min. pick-up voltage 8.4 V DC Control mode monostable, 1 coil Resistance (coil) 320 Ω Coil voltage rating 450 mW Contact type 1 maker Contact material Ag Switching voltage (max.) 28 V DC, 250 V AC Switching current (max.) 10 A Max. switching capacity 280 W, 1250 VA Connection Solder pins Response time 10 ms Fall time 5 ms Electrical lifespan 100 000 Switching cycles Durability 1000 0000 switching cycles Min. temperature -40 °C Max. temperature +85 °C Length 18.6 mm Width 10.4 mm Height 15.8 mm Dim (L x W x H) 18.6 x 10.4 x 15.8 mm Product type PCB relay
