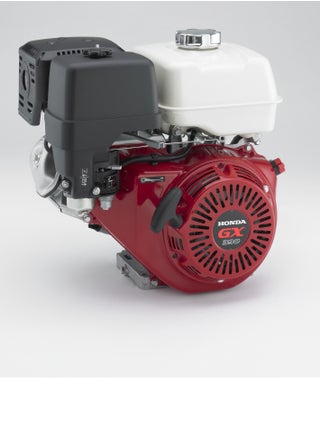

Honda General Purpose Engine Gx390H2 SH1

Highlights

• Type: 4-stroke, overhead valve, single-cylinder, horizontal shaft.
• Bore & Stroke: 88 x 64mm.
• Displacement: 389 cm3.
• Compression Ratio: 8.2:1.
• Net Power: 8.7kW (11.7hp) at 3600rpm.
• Continuous Rated Power: 6.4 kW at 3000rpm 7.0 kW / 3600 rpm.
• Maximum Net Torque: 26.5Nm at 2500rpm.
• Ignition System: Digital CDI with variable ignition timing.
• Starting System: Recoil / Electrical.
• Fuel Consumption at Rated Power: 3.5L/h at 3600rpm.
• Recommended Oil: 10W/30 API SG.
• Oil Capacity: 1.1L.
