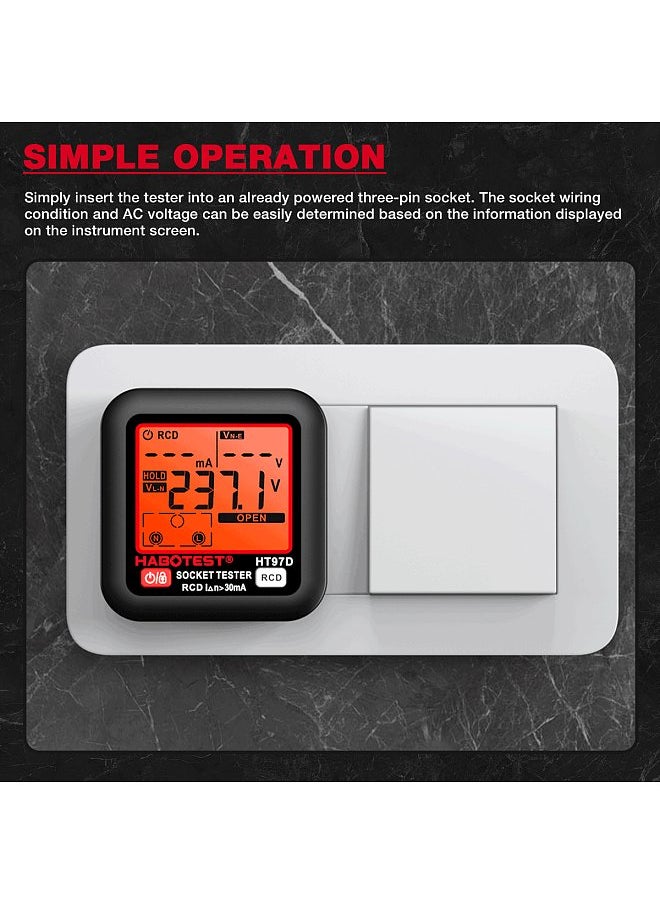

Highlights- SIMPLE OPERATION: Simply insert the tester into an already powered three-pin socket. The socket wiring condition and AC voltage can be easily determined based on the information displayed on the instrument screen.
- SOCKET WIRING SEQUENCE TEST: Insert the tester into a standard three-pin power socket
- DATA RETENTION: After inserting into the socket, the data automatically locks after three seconds. Once locked, press the unlock button to release the data.
- LEAKAGE SWITCH DETECTION: Insert the tester into a three-pin socket, ensuring that the display indicates correct wiring
- AUTOMATIC SHUTDOWN: If there is no operation within 5 minutes of powering on, the instrument will automatically shut down.
OverviewSpecifications:

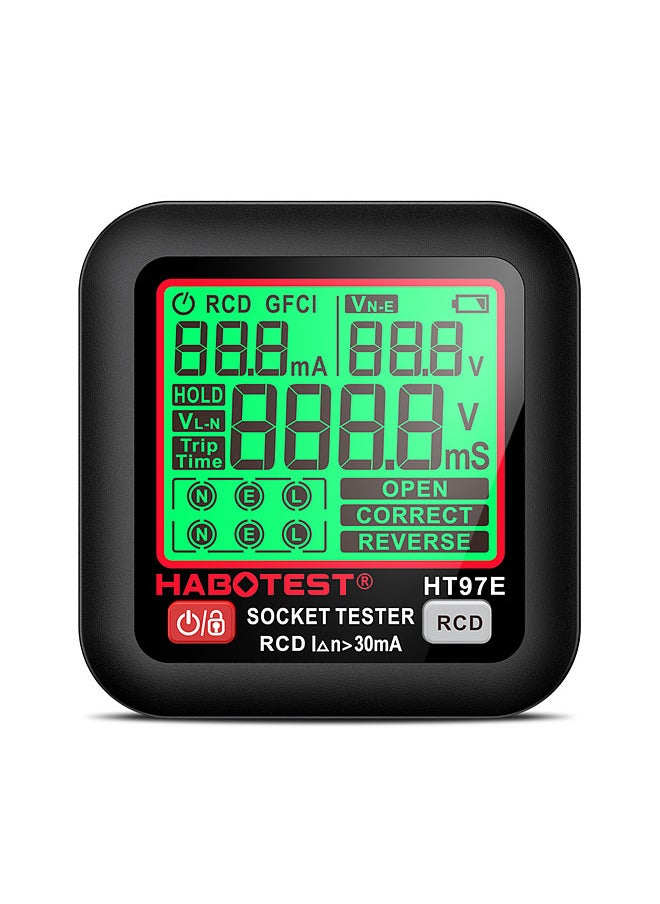

Model: HT97B / HT97D / HT97E (Optional)
Material: ABS
Voltage Range: AC30~260V/45~65Hz, ±(2.0%+2); AC30~260V/45~65Hz, ±(2.0%+2); AC30~260V/45~65Hz, ±(2.0%+2)
Leakage Voltage Range: 0~99V/45~65Hz, ±(2.0%+2); 0~99V/45~65Hz, ±(2.0%+2); 0~99V/45~65Hz, ±(2.0%+2)
Trip Time Test: 10-1000mS, ±(2.0%+4); 10-1000mS, ±(2.0%+4); 10-1000mS, ±(2.0%+4)
GFCI Test: >5mA (HT97B)
RCD Test: >30mA (HT97D & HT97E)
Voltage Measurement (48V~250V/45~65Hz): Yes
LCD Display: Yes
Backlight: Yes
Socket Connection Detection:
1. 10-1000mS, ±(2.0%+4)
2. Open ground
3. Open neutral
4. Open live
5. Live wire and ground wire reverse
6. Live wire and neutral wire reverse
7. Live wire and ground wire reverse, missing ground wire

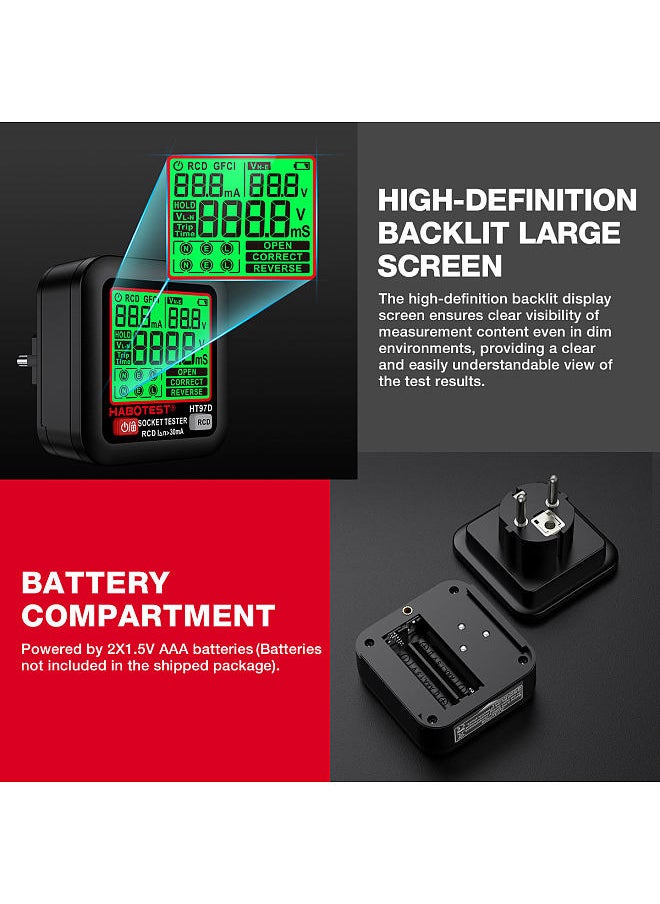

Power Supply: 2 * 1.5V AAA batteries (Not included)
Safety Rating: EN61010-1, -2-030; EN61326-1, CAT II 300V
Item Size: 67 * 65 * 63mm / 2.63 * 2.56 * 2.48in
Item Weight: 103g / 3.63oz
Package Weight: 138g / 4.86oz
Package Size: 7.5 * 7.5 * 8cm / 2.95 * 2.95 * 3.15in
