Understanding the Product
1. Ice Pusher Board
2. Infrared Full Ice Sensor: When the ice level renches the height detectable be the infrared sensor, the display panel will indicate full ice and the light will turn on

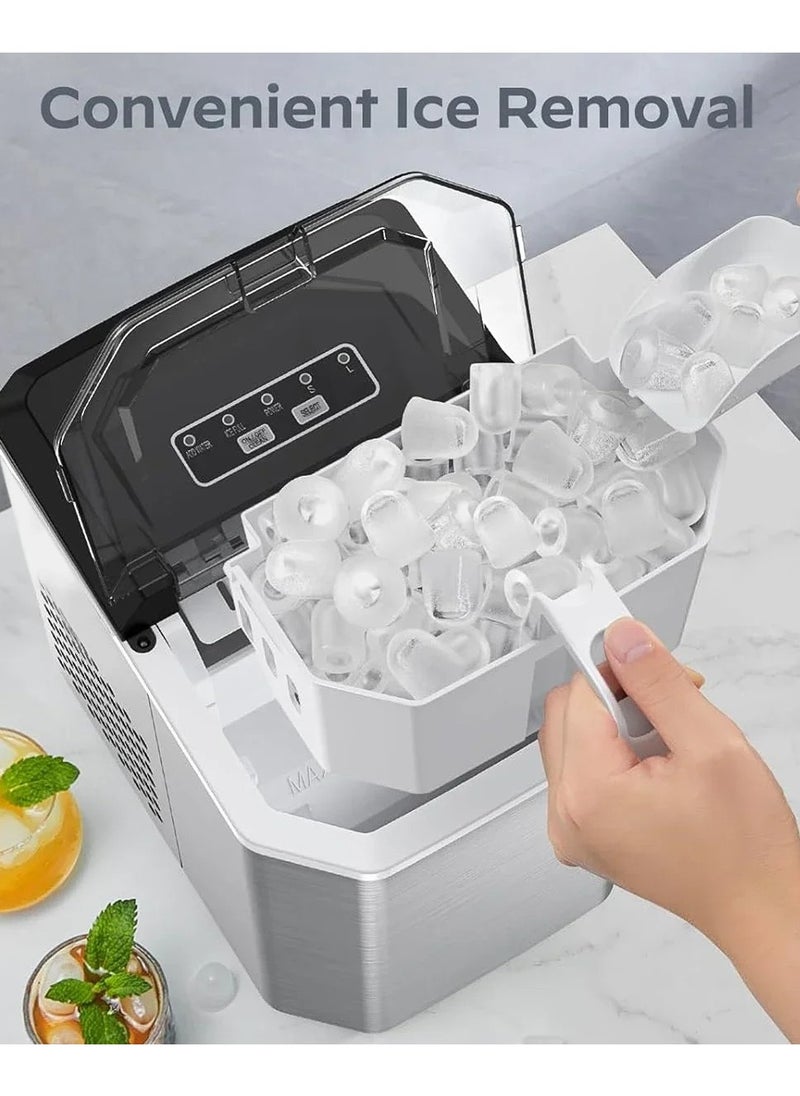

3. Ice Basket: Used for storing and moving ice cubes.
4. Lid: With a transparent viewing window, allowing the ice level to be clearly visible inside.
5. Air Outlet: The air outlet is located at the side. To ensure smooth airflow, it should he at least 300mm away from objecta
6. Drain Plug:Pull down to drain the water fros the water tank, located at the bottom inside the water tank.

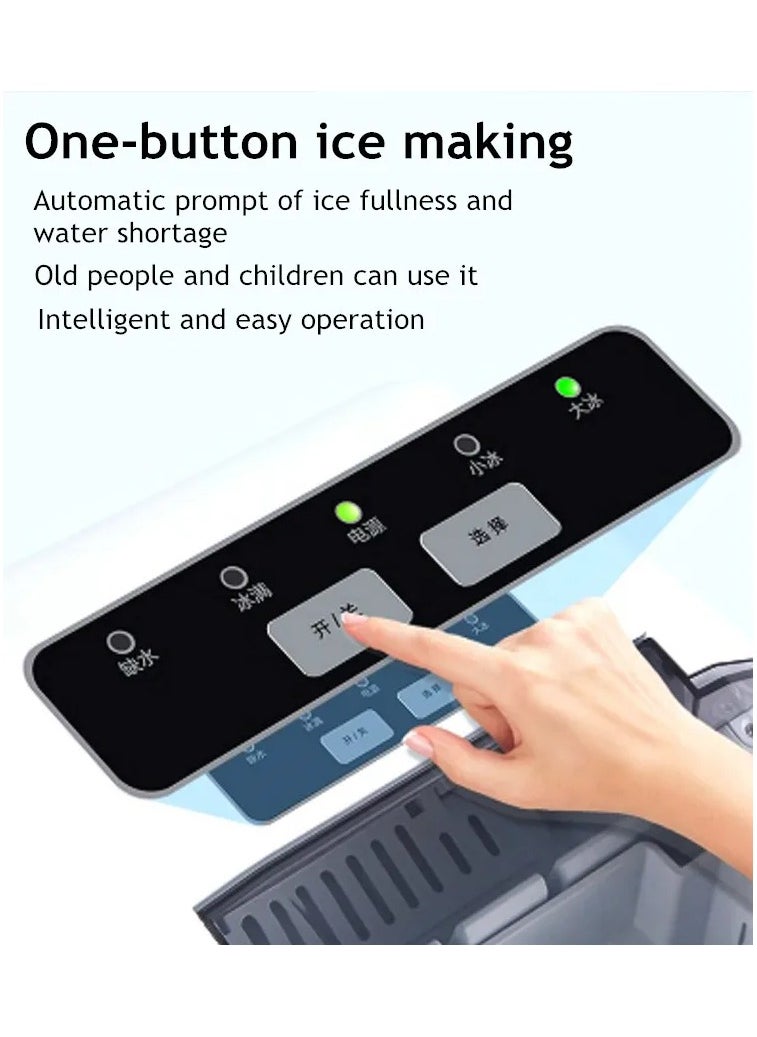

7. Control Panel
A. Select ice cube size: small, medium, large
B. Power indicator C. Full ice indicator
D. Water shortage indicator: indicates the nond to add water to the tank E Power on/off button F. Ice cube size selection button
Instructions for Use

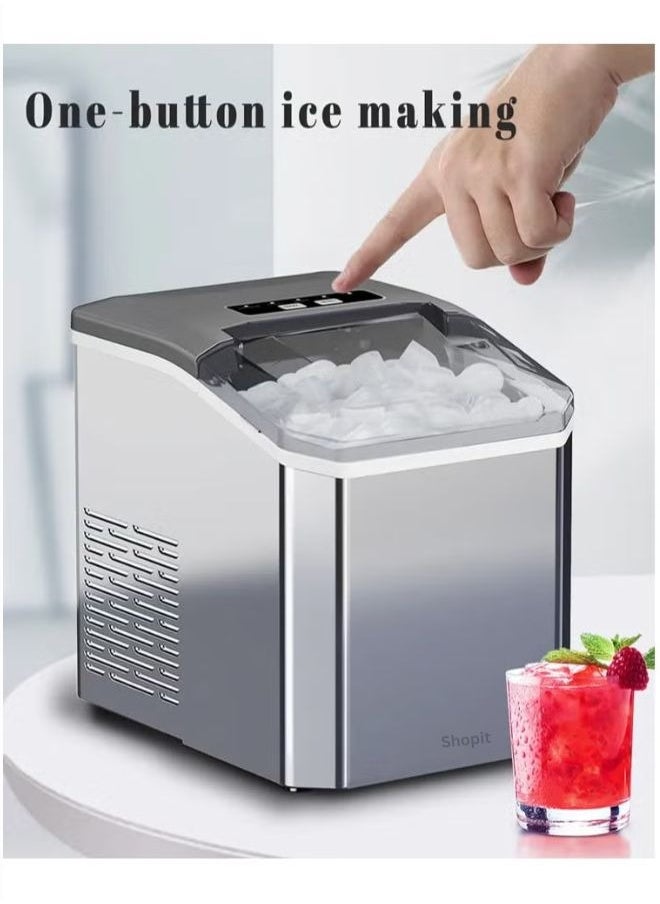

1. Starting the Machines Open the lid, remove the ice basket and add water to the water tank. Be careful not to extend the maximum water level. Then place the ice basket hack, close the lid, and press the "Power" button on the control panel to start ming ton
2. Selecting Ice Cube Size: The machine has three sizes of ice cubes. Adjust the size uring the "Select" button on the control panel.

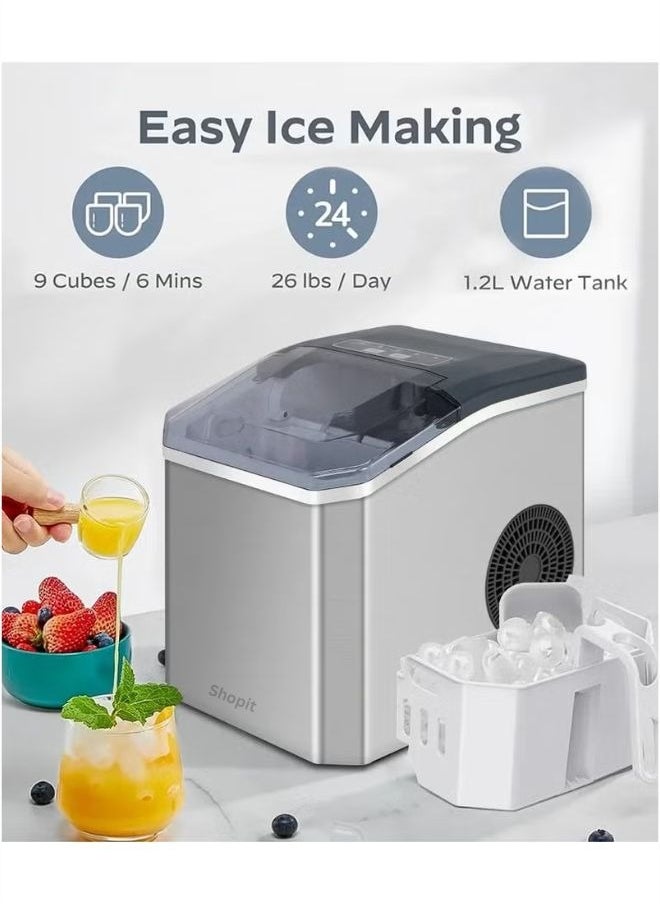

3. Ice Making Cycle: Each cycle takes about 6-13 minutes, depending on the size of the ice cubes selected and the ambient temperature. The ice-making speed will also vary based on water and room temperature.

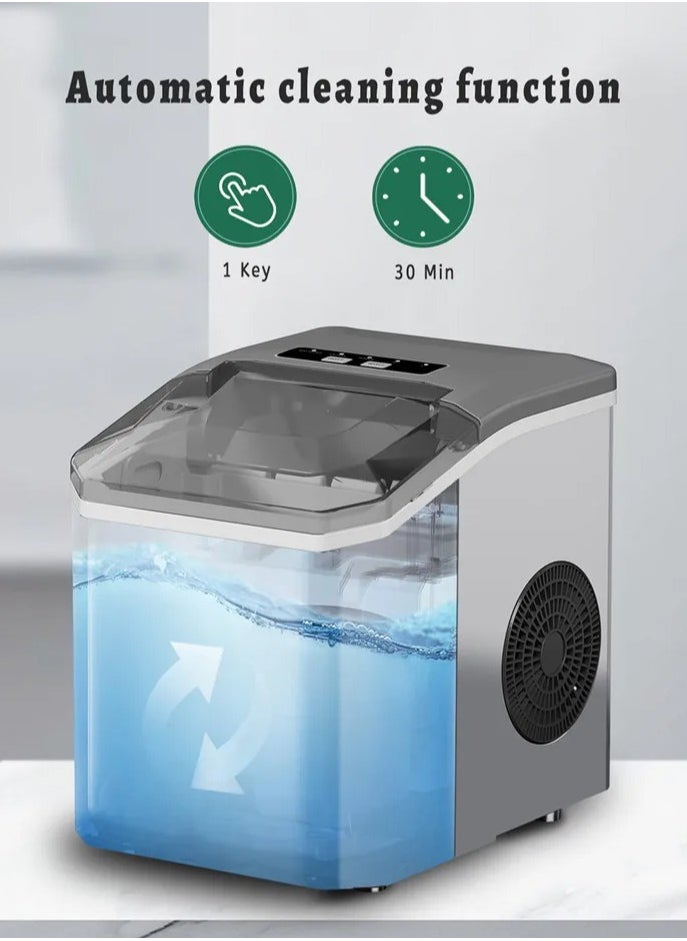

4. Cleaning After User Once the machine has completed a cycle, wait until the unit is idle. Press the "Power" button for 3 seconds, and the full ice and power lights will flash alternately, activating the self-cleaning function. During the cleaning process. be careful as there may be water in the tank. If you need to stop cleaning, press the "Power" button for 1 second.
5. Other Notes: When the "Full lee" light is on, the machine will automatically stop making ice. The ice cubes must be removed to continue operation. When the "Add Water" light is on, water needs to be added to the tank. After adding water, press the
Safety Guidelines
Material | Stainless Steel |

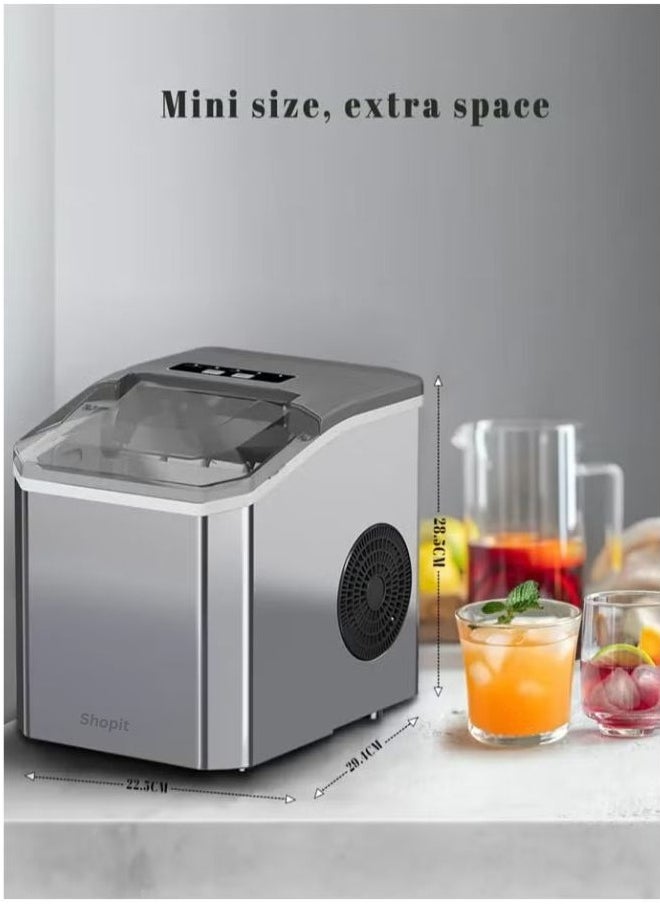

Product Length | 30 cm |
Product Width | 30 cm |
Capacity | 1.5 L |
What's In The Box | Ice Maker, Manual |
Model Name | Ice Maker |
Installation | Countertop |
Product Height | 25 cm |
Energy Used | Electric |
Wattage | 120 W |
Model Number | YH16M |
