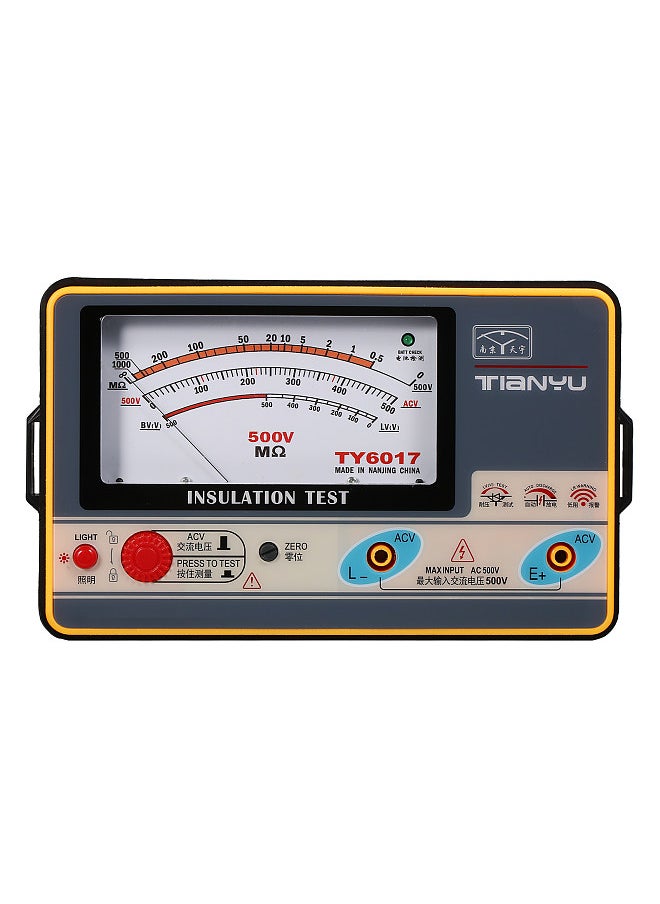

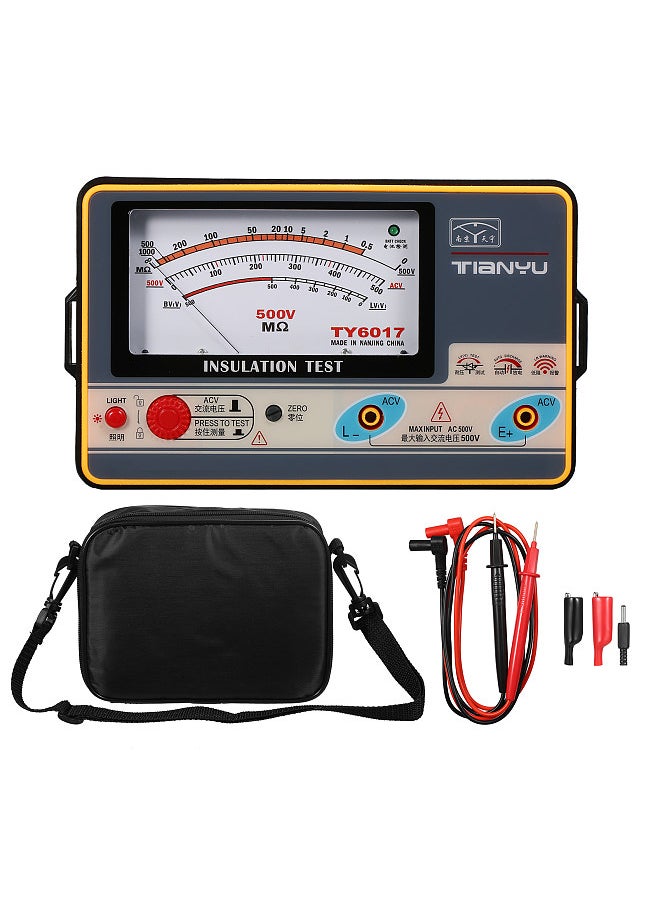

Highlights- The rated test voltage is 500V, with a measurement range of up to 1000MΩ and has the ability to measure AC voltage.
- Wide measurement range, with locking button, easy for you to choose and use.
- Can measure AC voltage below 500V (full scale linear indication).

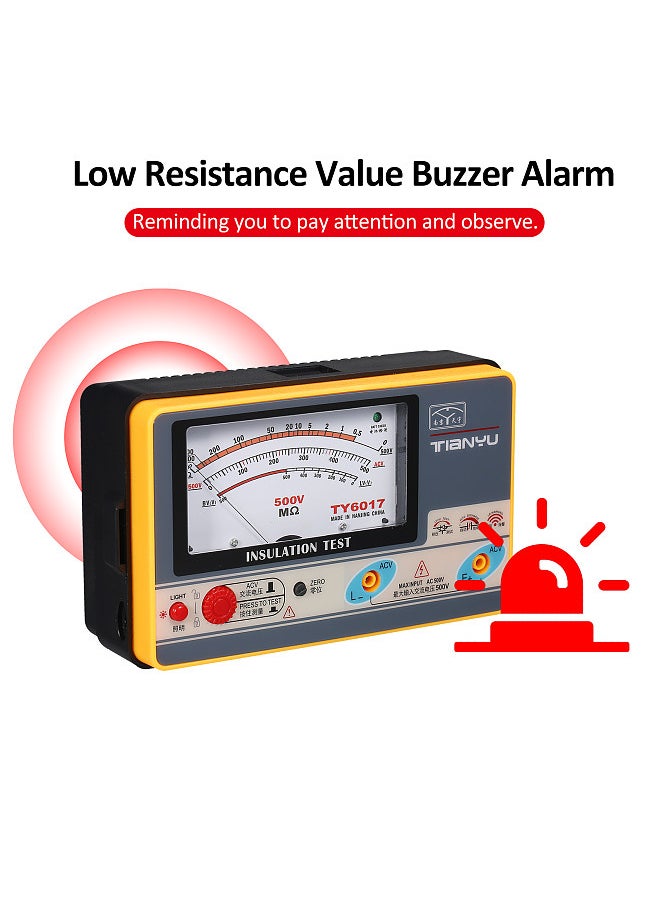

- Low resistance value buzzer alarm, reminding you to pay attention and observe.
- The battery voltage status indicator light (BATT CHECK light on) also serves as a high voltage indicator for the operation of the megohmmeter.

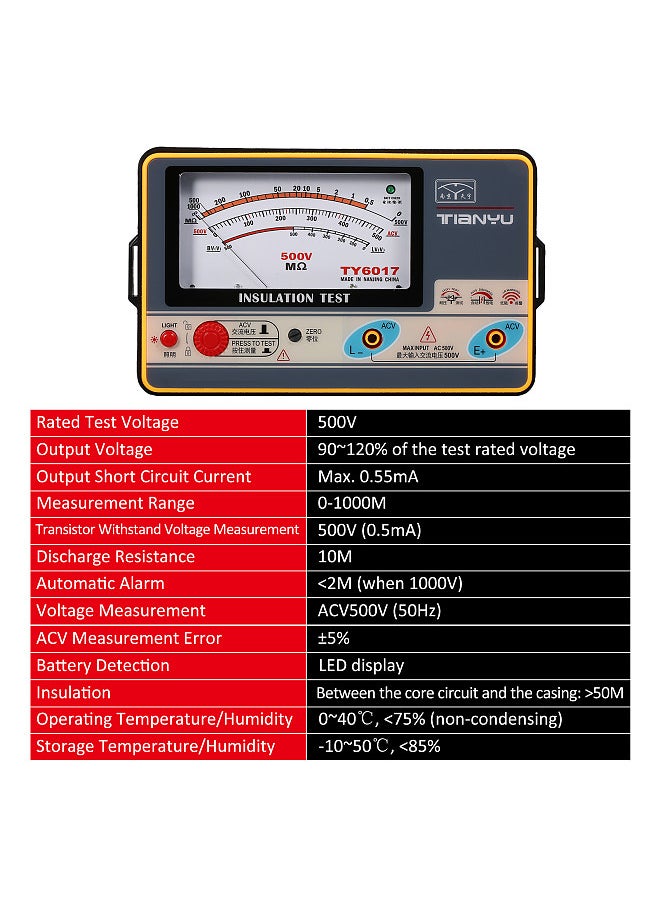

OverviewSpecifications:
Material: ABS
Rated Test Voltage: 500V
Output Voltage: 90~120% of the test rated voltage
Output Short Circuit Current: Max. 0.55mA
Measurement Range: 0-1000M
Transistor Withstand Voltage Measurement: 500V (0.5mA)
Discharge Resistance: 10M
Automatic Alarm: ＜2M (when 1000V)
Voltage Measurement: ACV500V (50Hz)
ACV Measurement Error: ±5%
Battery Detection: LED display
Insulation: Between the core circuit and the casing: >50M
Operating Temperature/Humidity: 0~40℃, ＜75% (non-condensing)
Storage Temperature/Humidity: -10~50℃, ＜85%

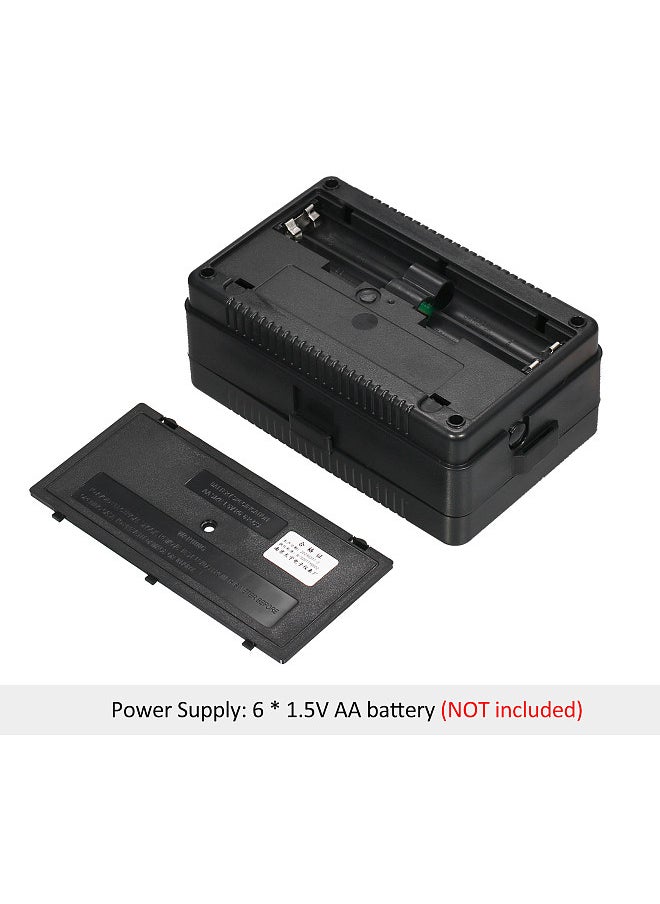

Power Supply: 6 * 1.5V AA battery (NOT included)

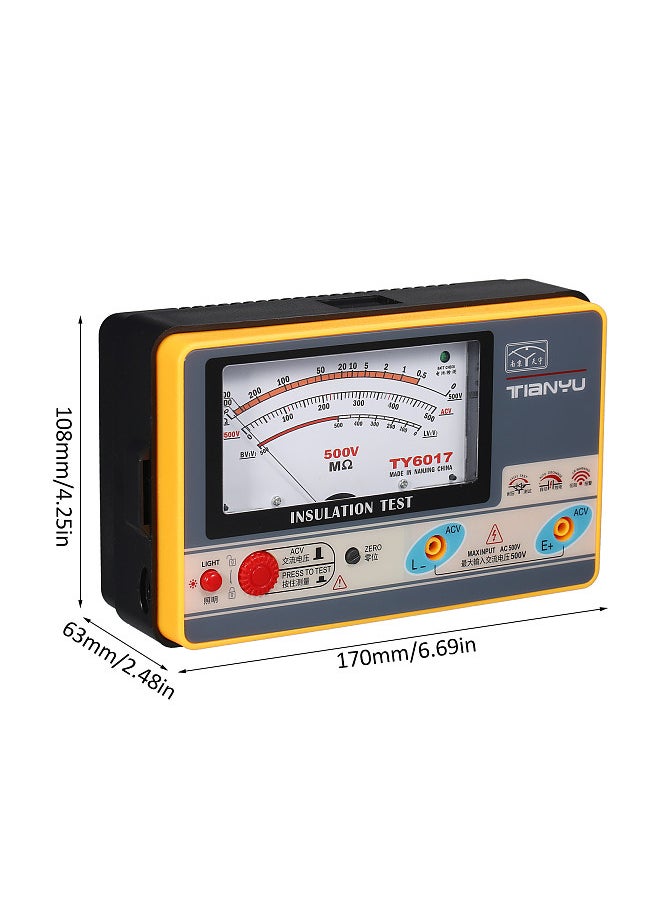

Item Size: 176 * 110 * 70mm / 6.93 * 4.33 * 2.76in
Item Weight: 508g / 17.93oz
Package Weight: 799g / 28.20oz
Package Size: 21.5 * 16.5 * 8cm / 8.46 * 6.50 * 3.15in
