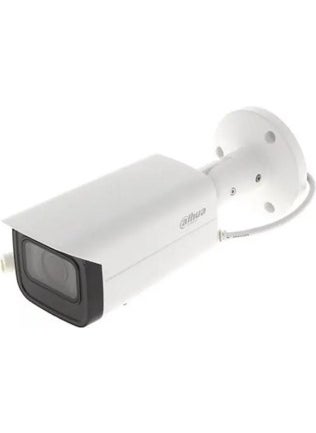

Dahua - IPC-HFW1431T-ZS-2812-S4 4mpix 2.8-12 mm Motorized Lens SD Card H265+ 50 m Night Vision IP67 Poe Bullet IP Camera - Image 1

Available Soon

Dahua

IPC-HFW1431T-ZS-2812-S4 4mpix 2.8-12 mm Motorized Lens SD Card H265+ 50 m Night Vision IP67 Poe Bullet IP Camera

Name: noon E-commerce
Address: Boulevard Plaza Tower 2, Sheikh Mohammed bin Rashid Boulevard, Dubai, Dubai, 454602, AE
Telephone: +971551972585
Price range: $ - $$$

Sorry! This product is not available.

Product Overview

Overview

Color	White
Connection Type	Wired

Dahua IPC-HFW1431TP-ZS-S4 Technical Specifications
Camera
Image Sensor resolution	1/3”4 Megapixel progressive CMOS
Effective Pixel	2688(H), x1520(V)
RUM	128 MB
RAM	128 MB
Scanning System	progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.03 Lux @ F1.7
IR Distance	50 m (164.0 ft)
IR On/Off Control	Auto / Manual
IR LED	2nd
Pan / Tilt / Rotate Range	Horizontal: 0 ° –360 ° Vertical: 0 ° –90 ° Rotation: 0 ° –360 °
Lens
Lens Type	Motorized vari-focal
Mounting Type	φ14
Focal Length	2.8mm–12mm
Max. aperture	F1.7
View Angle	Horizontal: 98 ° –31 ° Vertical: 55° –18 ° çdiagonal: 116 ° –36 °
Iris Type	Fixed diaphragm
Close Focus Distance	0.8m (2.6ft)
Video
Compression	H.265; H.264; H.264B; MJPEG
Smart Codec	Available
Video Frame Rate	Main Stream: 2688 × 1520 (1fps – 20fps) 2560 × 1440 (1fps – 25/30fps) Substream: 704 × 576 (1fps – 20/25fps) 704 × 480 (1fps – 20/30fps)
Image Flow Capacity	2 stream
resolution	2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240)
Bitrate Controlü	CBR / VBR
Video Bitrate	H.264: 32 Kbps – 6144 Kbps H.265: 12 Kbps – 6144 Kbps
Day / Night	Auto (ICR) / Color / B / W

BLC	Available
HLC	Available
WDR	120dB
White Balance	Automatic / natural / street light / outdoor / manual / private area
Earnings Controlü	Manual/Automatic
Noise Reduction	3D DNR
Motion Detection	OFF / ON (4 fields, rectangular)
ROI	Available (4 fields)
Smart IR	Available
Image Rotation	0 ° / 90° / 180 ° / 270 ° (Support 90° / 270° at 2688° 1520° resolution.)
mirror	Available
Private Area Masking	4 fields
network
network	RJ-45 (10/100 Base-T)
Protocol	HTTP; TCP; HARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
ONVIF	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
User / Authorization	20
Edge Storage	Dahua Cloud; FTP; SFTP; Micro SD card (max. 256 GB); NAS
Scanner	IE Chrome Firefox
Software Management	Smart PSS, DSS, DMSS
Smart phone	IOS, Android
Certificates
Certificates	CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
power
power Source	12V DC/POE (802.3af)
power Consumption	< 7.4W

Environmental Conditions
Working Conditions	-30° C to +60° C (-22°F to +140°F) / less than 95%
Endurance Conditions	-40 ° + 60 ° C (-40°F to +140°F)
Protection Certificate	IP67
Safe
Safe	Metal
Dimensions	244.1 mm × Φ90.4mm
Net weight	0.85kg

Specifications

Colour Name

White
