Highlights- HA2401RTGXE series amplifiers are designed to be installed indoors or in weather-resistant enclosures. Integral mounting tabs allow the amplifier to be secured
OverviewHA2401RTGXE series amplifiers are designed to be installed indoors or in weather-resistant enclosures. Integral mounting tabs allow the amplifier to be secured

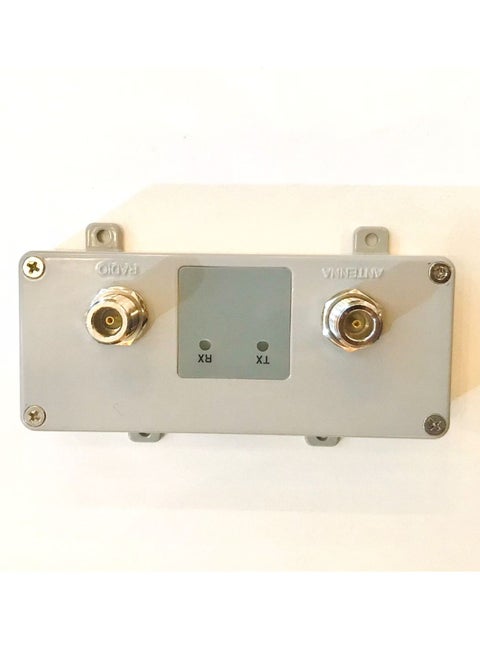

Connect the Antenna to the Amplifier output labeled ANTENNA Connect the Radio to the Amplifier input labeled RADIO using a pigtail cable. To power the amplifier via the PoE interface, cone CAT5 Ethernet cables to the RJ45 jacks as shown. To power the amplifier using an optional AC Adapter, plug the AC Adapter into the
Amplifier’s DC power jack and wall outlet. Note Do not use the PoE Interface and AC Adapter at the same time. This will damage the amplifier All L-com amplifiers have to LEDs visible on the enclosure. The LED marked
TX
indicates that the amplifier is transmitting a signal. This LED will flash during such
operation.
The LED marked
RX
indicates that the amplifier is receiving a signal. This LED will flash during such
operation.
When the amplifier is transmitting and receiving signals at the same time, both LEDs will flash.
*Note: Some amplifier models have a
red
TX LED for extra visibility. A flashing red LED
does not
indicate a fault.
