L1K13MUM331 Limit Switch

Type	Automation Materials

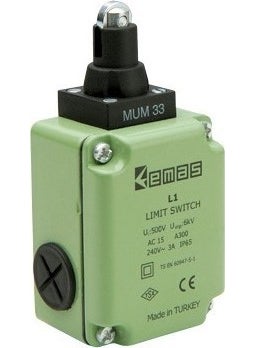

Emas L1K13MUM331 Limit Switch

L1 Metal Body 13 mm Metal Roller Pin Sudden Action 1NO+1NC Limit Switch L1K13MUM331 ProductLimit Switch
Contact1NO+1NC
Duyar BlockRoller Pin
End Element Dimension: 13 mm
Contact Current (Ie)3 A (240V AC)
Usage CategoryAC15
Mechanical Life (Min Quantity)10000000
Electrical Life (Min Quantity)1000000
Operating Frequency (On-Off/Hour) Mech. 3000 Elk. 1800
Insulation Voltage (Ui)500 V
Impulse Withstand Voltage (Uimp)6 kV
Dielectric Strength (Body-Contact)1.890V AC
Dielectric Strength (Contact-Contact)1.890V AC
Insulation Resistance: 10 MΩ (500 V DC)
Operating Temperature -25 / + 80 °C
Contamination Degree3
Protection ClassIP65
Contact MaterialAgNi
Cable Connection Cross-Section1-2.5 mm2
Clamping Force1.5Nm
Short circuit breaking capacity (Ics)1 kA
SeriL1 Metal Body
Contact ActionSudden Action
End Element MaterialMetal
