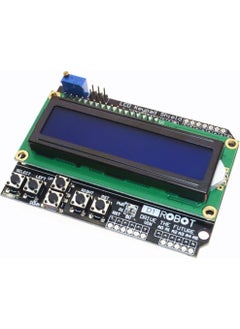

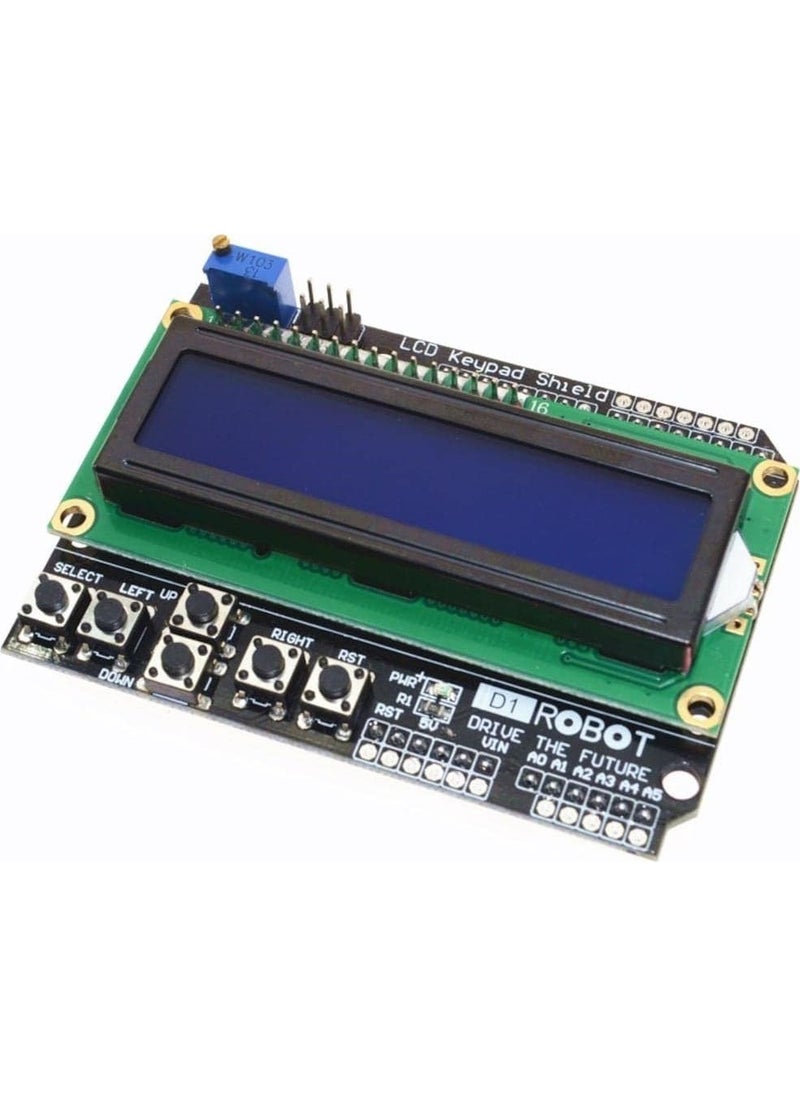

LCD Keypad Shield 1602 - 16X2 LCD Display and Keypad

Arduino 16x2 LCD Display and Keypad - 1602 LCD Keypad Shield

This very popular LCD shield designed by DF Robot is fully compatible with Arduino boards such as Arduino Uno, Leonardo, Mega and Mega ADK. It has a 2x16 LCD and a keypad. On the board, power pins, analog pins A1,A2,A3,A4 and A5 and digital pins 13,12,11,3,2,1 and 0 are pulled out for external use. A0 pin is used for analogue reading from keys. LCD contrast setting can be adjusted on the card. However, the backlight feature of the LCD can be disabled.

FEATURES:

• 6 push buttons that can be used for control and various purposes.
• Unused pins are exported. In this way, it can be used with different sensors and modules.
• It is frequently used in various industrial, robotic and hobby projects.

TECHNICIAL SPECIFICATIONS:

• Working Voltage: 5V,
• Pin Distribution:
  • Analog 0: Button (select, up, right, down and left),
  • Digital 4: DB4,
  • Digital 5: DB5,
  • Digital 6: DB6,
  • Digital 7: DB7,
  • Digital 8: RS (Data and Signal Display Selection),
  • Digital 9: Enable,
  • Digital 10: Backlight Control.

PACKAGE INCLUDED:

• 1 x Arduino 16x2 LCD and Keypad
