Logic USB Logic Analyzer, For Official Version, Sample Rate 100M 16 Channels Instruments

OverviewProduct Description:

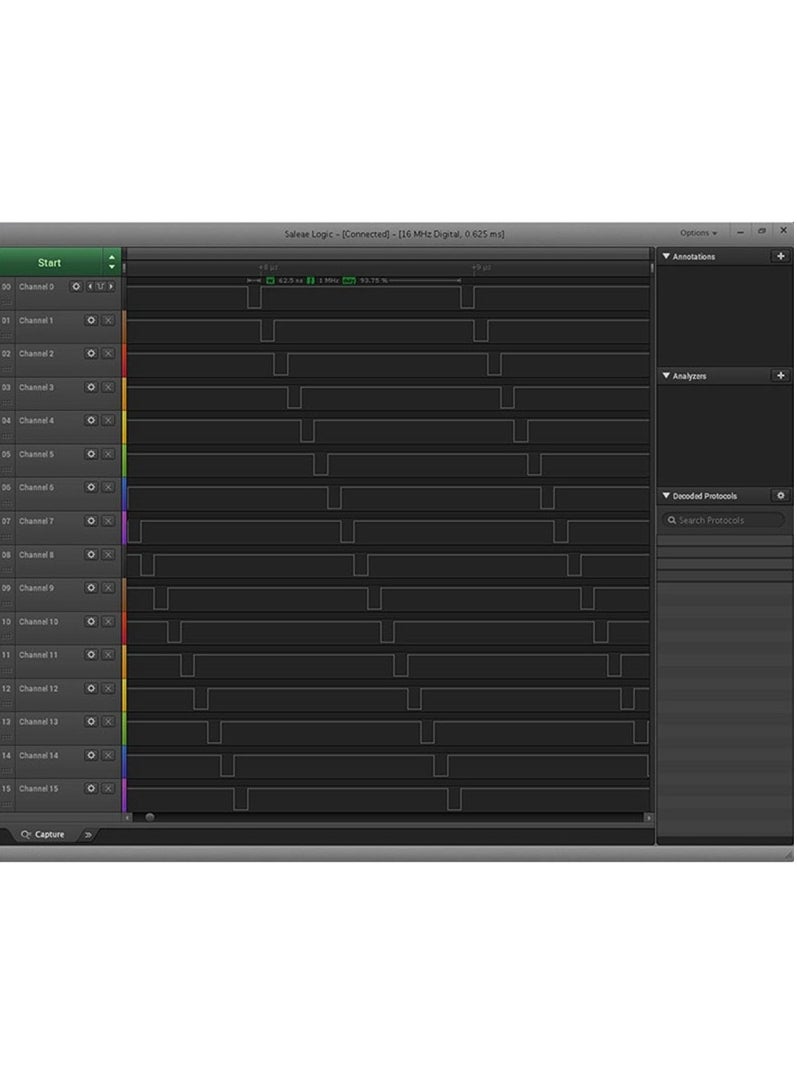

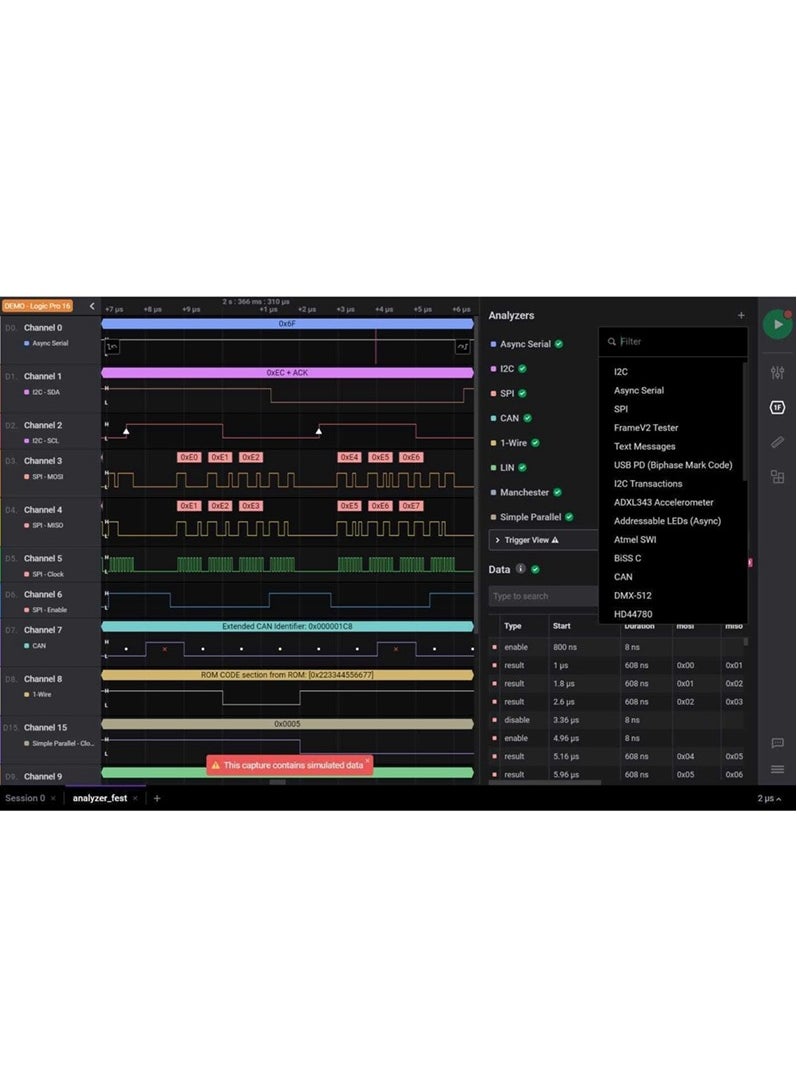

1. Support The Latest Version Of LOGIC2 Software. Super Luxurious Interface, Can Collect And Display Simultaneously.
2. Supports Multiple Operating Systems, Including FOR All Windows Systems, Linux Systems, And Mac Systems; All Are Compatible With Official Software And Support Version Updates.
3. It Realizes ESD And TVS High-Voltage Static Electricity Protection And Also Supports Voltage Input Protection Within Plus Or Minus 60 Volts.
4. ESD/TVS Protection And Overvoltage Protection Are Necessary. A Special High-Speed And Low-Capacitance Srv05 Protection Tube Is Used To Protect The Relatively Fragile Fpga Input And Protect The Circuit Under Test From Possible Damage Such As Electrostatic Sparks, Etc. A Line Of Defense.
5. It Needs To Be Used By Professionals To Avoid Product Damage.

Introduction:
1. Real-time collection is uploaded to the computer using the USB 2.0 high-speed interface. The computer implements real-time data storage management and displays it after the collection is completed.
2. Use the computer's memory as the acquisition memory, so that the storage depth cannot be matched by traditional logic analyzers and can easily reach G-level storage depth.
3. The sampling rate and number of acquisition channels can be flexibly set. When collecting with 3 channels, the highest sampling rate is 100M, with 6 channels, the sampling rate is 50M, with 9 channels, the highest sampling rate is 32MHZ, and with 16 channels, the highest sampling rate is 16M. Sampling Rate.
4. Small size, easy to carry, use USB power supply, convenient for on-site debugging.

Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use

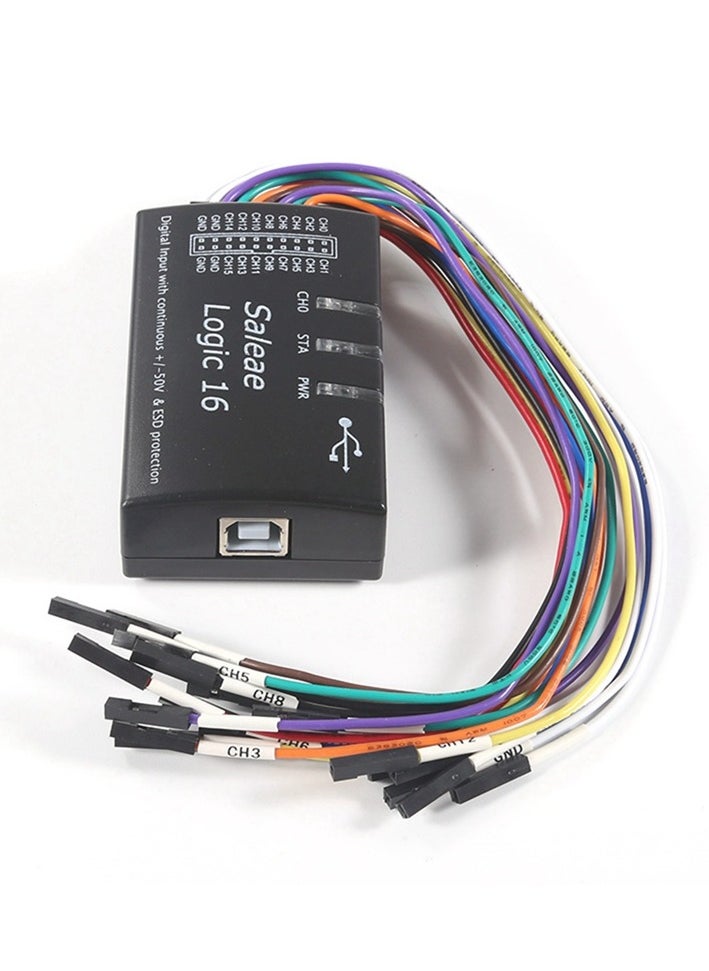

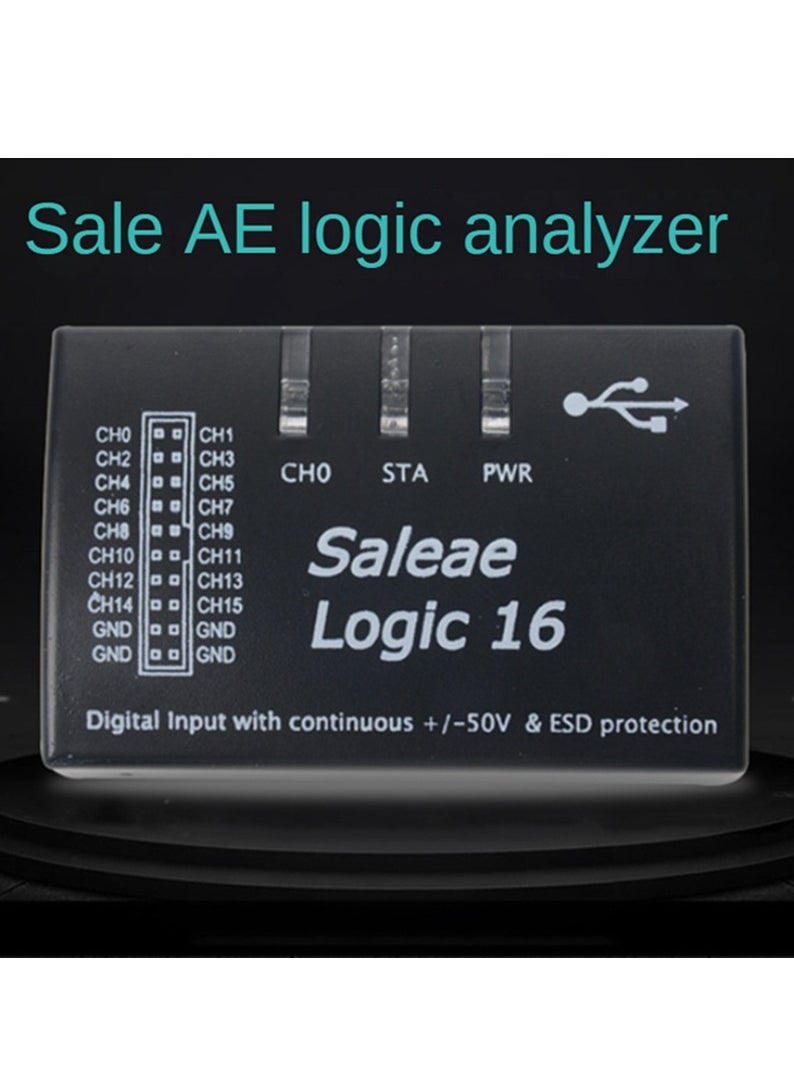

With the words "Digital Input with continuous +/-50V & ESD protection; Logic 16"
Material: Plastic
color: As Shown

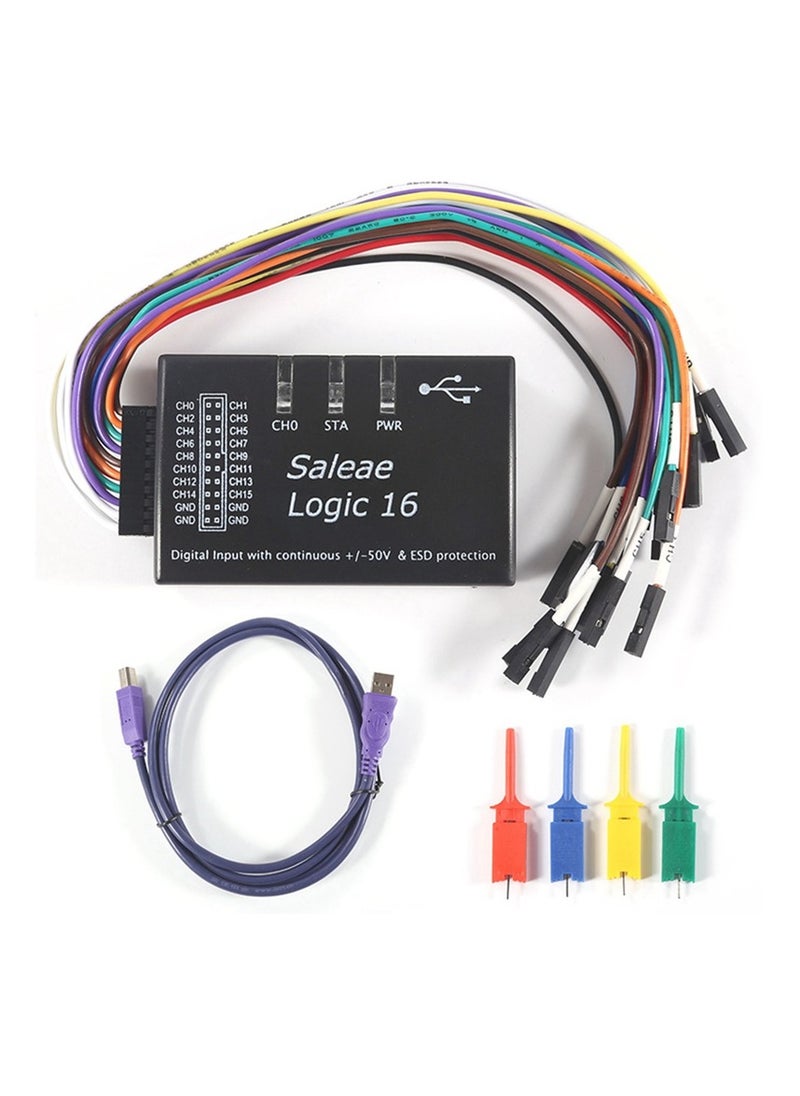

Package Contents:
1 * Logic Analyzer (With Dupont Cable)
1 * Usb2.0 Cable
4 * Analyzer Test Clips
