SCHNEIDER ELECTRIC GOPACT MCCB COMPACT BREAKERS



The new specially designed molded case circuit breaker series, GoPact MCCB, is a competitive and reliable solution for the protection needs of your power distribution systems. GoPact MCCB provides durable power supply in standard applications with its comprehensive accessory portfolio and simplified use.

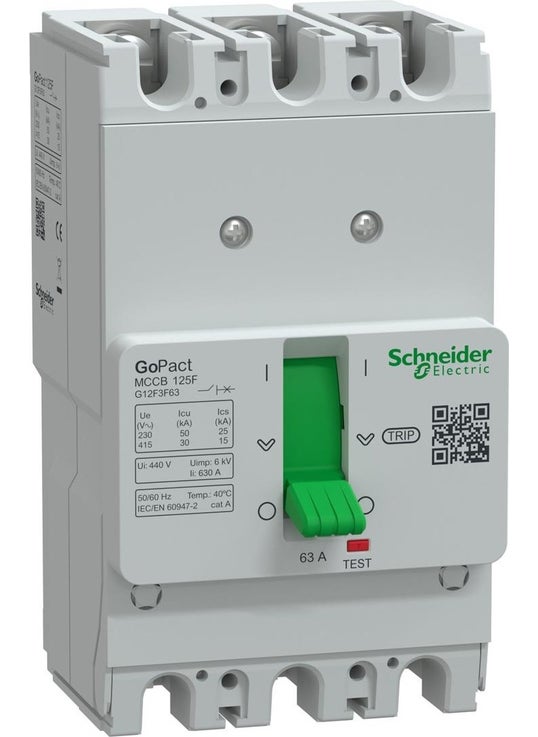

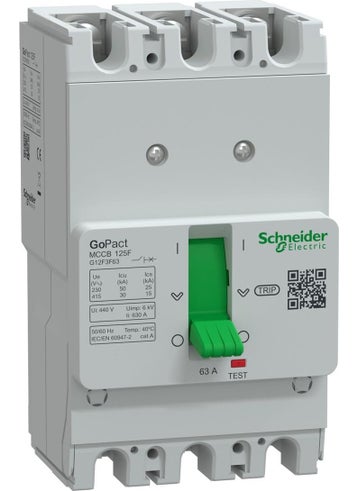

SCHNEIDER GOPACT MCCB G12F3F63 125F 63A 36kA COMPACT SWITCH





TECHNICAL SPECIFICATIONS:

- 3 Poles Defined,

- 3d Protected Pole Definition,

- 63A 40°C [In] Rated Current,

- 415V AC 50/60Hz [Ue] Nominal Operating Voltage,

- F30kA 380/415V AC Performance Level,

- Thermal Magnetic Opening Unit Technology,

- 440V AC [Ui] Nominal Insulation Voltage,

- 6kV [Uimp] Nominal Impulse Withstand Voltage,

- 15kA 380/415V AC 50/60Hz, 25kA 220/230V AC 50/60Hz Nominal Short Circuit Breaking,

- 30000 Cycles Mechanical Durability,

- 8000 Cycles 415V Electrical Durability,

- 18.7W Power Dissipation per Pole,

- Horizontal and Vertical Backplate Mounting,

- 63A 40°C Trip Unit Degree,

- (-20°°C) Ambient Temperature for Operation,

- (-35°°C) Ambient Temperature for Storage,

- IP20 Protection Degree,

- Dimensions 75mm (H) x 130mm (W) x 60mm (D),

- EN/IEC 60947-1, 60947-2 and 60947-2 Annex H Standards,

- GOST Product Certificate,

- Under 18 Months Manufacturer's Warranty.
