silvercnc - M3-M12 Pneumatic Tapping Machine Air Drill Tapper for Universal Flexible Arm Portable for Using Chuck Size: M3,M4,M5,(M6),M8,M10,M12 (400 rpm) - Image 1

Available Soon

silvercnc

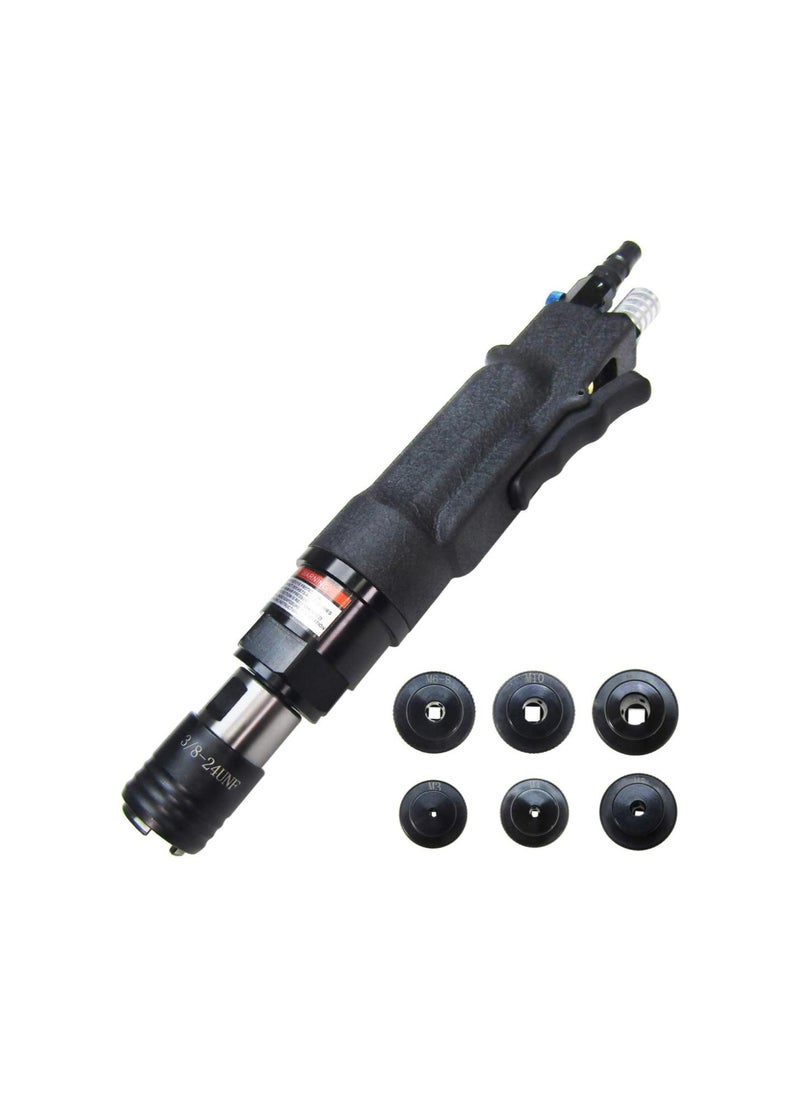

M3-M12 Pneumatic Tapping Machine Air Drill Tapper for Universal Flexible Arm Portable for Using Chuck Size: M3,M4,M5,(M6),M8,M10,M12 (400 rpm)

Sorry! This product is not available.

Product Overview

Highlights

【Tapping Range】M3-M12: M3,M4,M5,M6-M8,M10,M12. No overload protection. Tapping Capability: Suitable for tapping and re-tapping of normal aluminum, iron, copper, steel, stainless steel, plastic and wood, and other material
【Uses】This pneumatic tapping gun can use tap threads for tapping (Taps are not included). Pneumatic tapping tool needs to be used with air compressor or air pump
【Parameters】Working air pressure: 6-8 bar, Speed: 400 RPM, Tapping capacity: M3-M12 (3-12mm), Air inlet: 1 / 4, Average air consumption: 4 cfm, Maximum no-load rotation speed: 400 rpm
【Application】This pneumatic tapping machine is applicable to all machinery manufacturing industry, machine tools, tooling machinery, plastic machinery, printing machinery, packaging machinery and other general purpose machinery industries
【Introduction】Pneumatic tapping machine is a kind of mechanical processing equipment that processes internal thread, screw or tooth buckle on the inner side of the hole of the parts. Such as machine shell, equipment end face, nut, flange and other parts

Overview

M3-M12 Pneumatic Tapping Machine Air Drill Tapper for Universal Flexible Arm Portable for Using Chuck Size: M3,M4,M5,M6-8,M10,M12

Parameters

Tapping Range: M3-M12

Tap Chuck Standard: ISO standard
No-Load Speed: 400 rpm

Maximum Tapping:

Aluminum: M3~M12

Iron: M3~8

Steel: M3~6

Torque: Low Torque

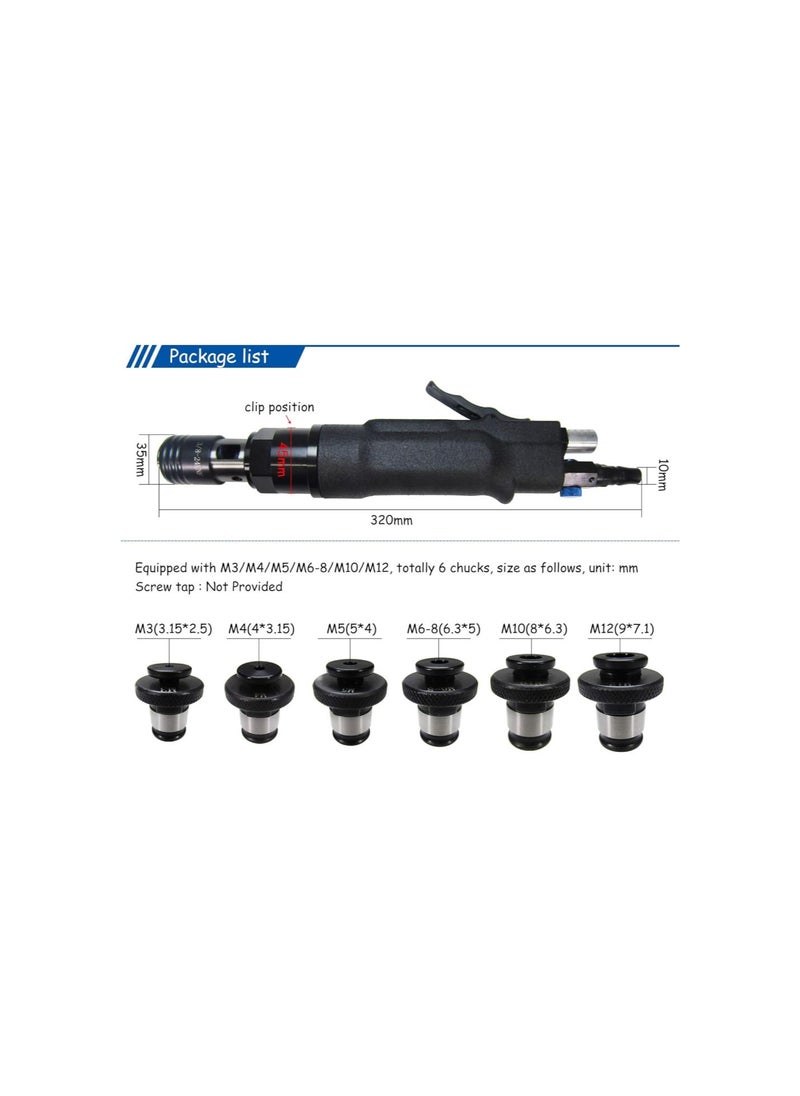

Package:

1*Tapping Machine
6*Chucks

Application:
This pneumatic tapping machine is applicable to all machinery manufacturing industry, machine tools, tooling machinery, plastic machinery, printing machinery, packaging machinery, engineering machinery, automobile and motorcycle parts, aircraft engines and other general purpose machinery industries.

Pneumatic tapping machine is a kind of mechanical processing equipment that processes internal thread, screw or tooth buckle on the inner side of the hole of the parts. Such as machine shell, equipment end face, nut, flange and other parts with different specifications of through holes or blind holes.
