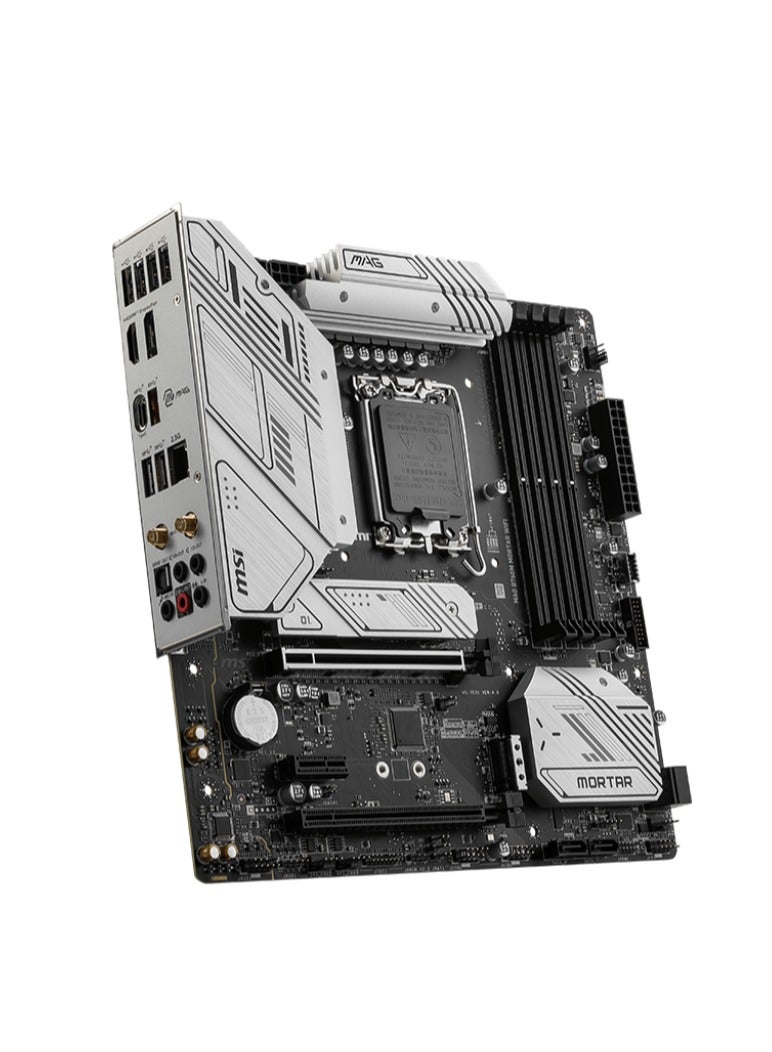

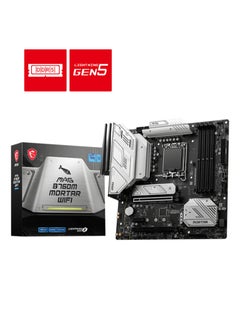

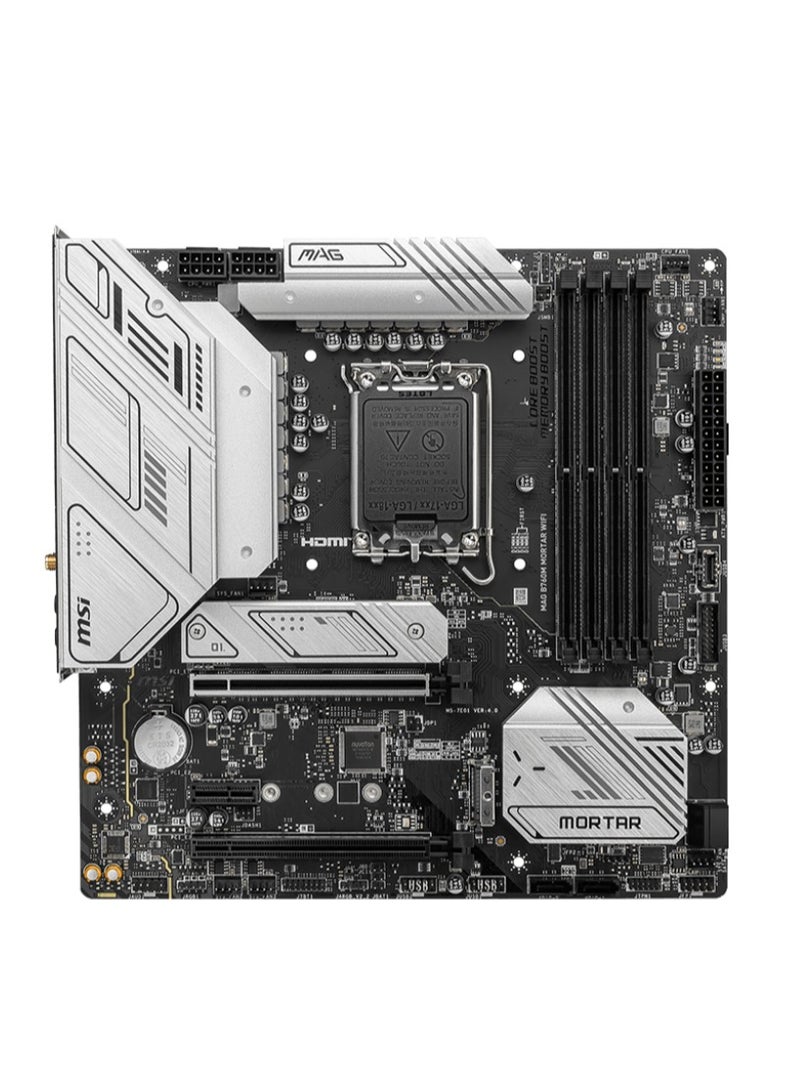

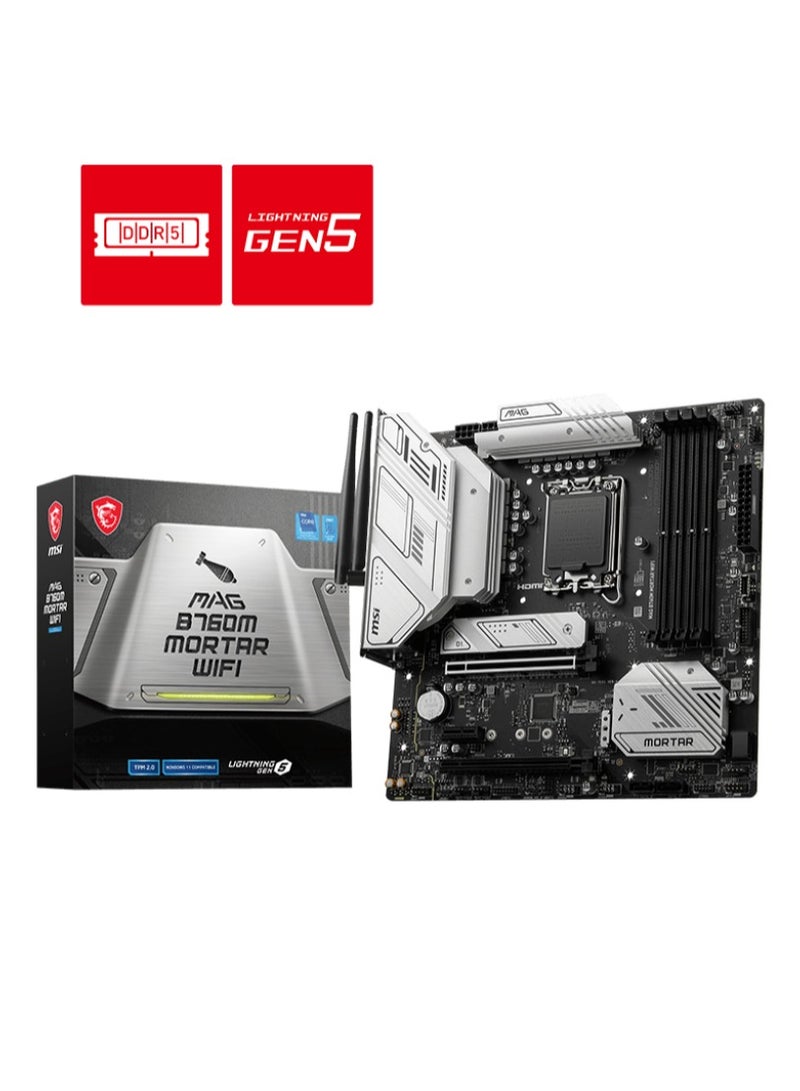

Mag B760M Mortar WiFi Gaming Motherboard Supports 12th/13th Gen Intel Processors, LGA 1700, DDR5, PCIe 5.0, M.2, 2.5 Gbps LAN, USB 3.2 Gen2, Wi-Fi 6E, m ATX)

OverviewExtended Heatsink Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed M.2 Shield Frozr Keeps M.2 SSDs safe while preventing throttling, making them run faster. Heavy Plated VRM Heatsink The VRM heatsink covers the upper MOS and helps dissipate the heat 7W/mK Thermal Pad & Additional Choke Pad High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance. MAG B760M MORTAR WIFI Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket Supports DDR5 Memory, up to 7200+(OC) MHz Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works Audio Boost: Reward your ears with studio grade sound High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
