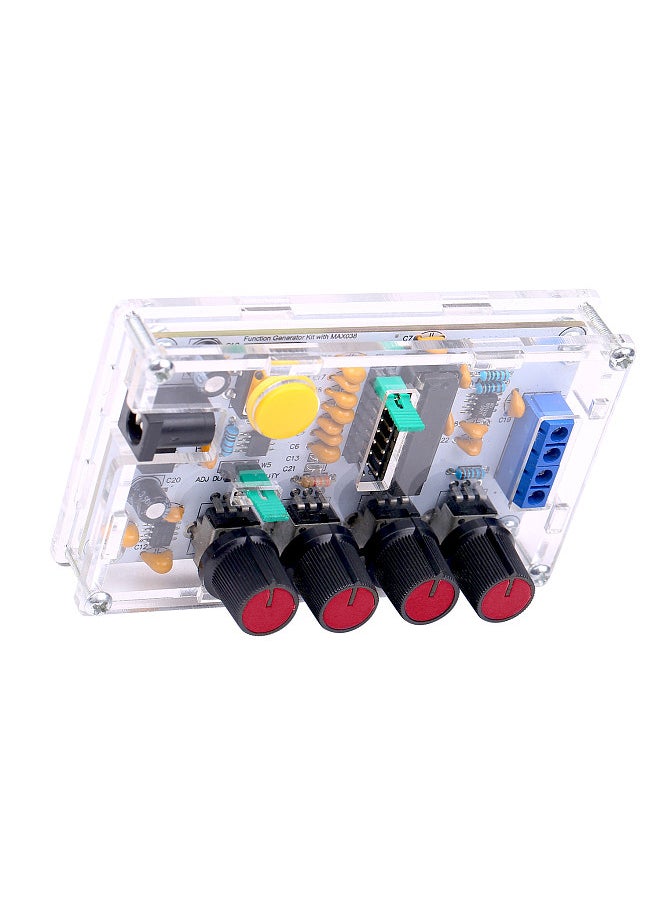

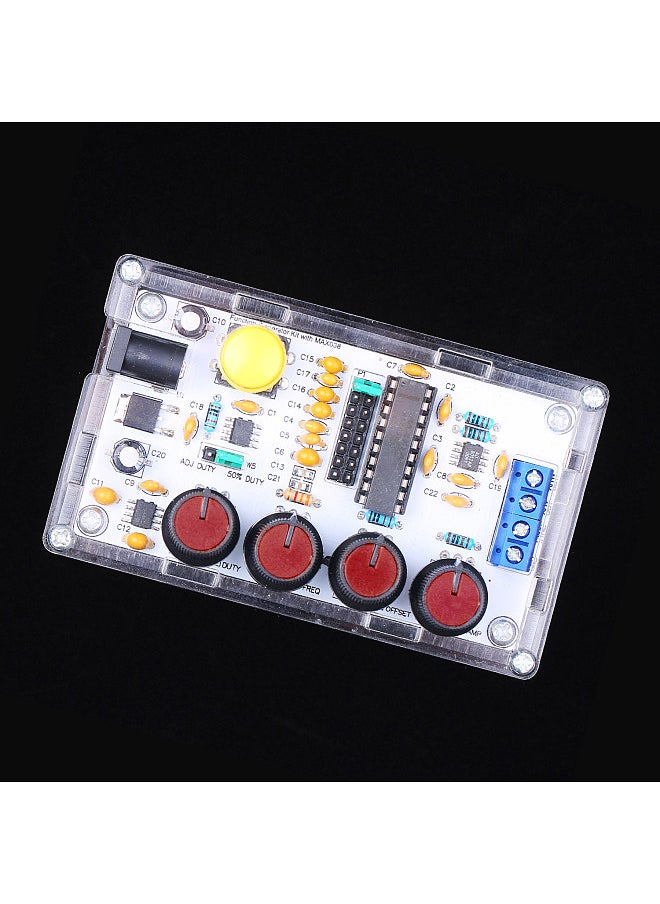

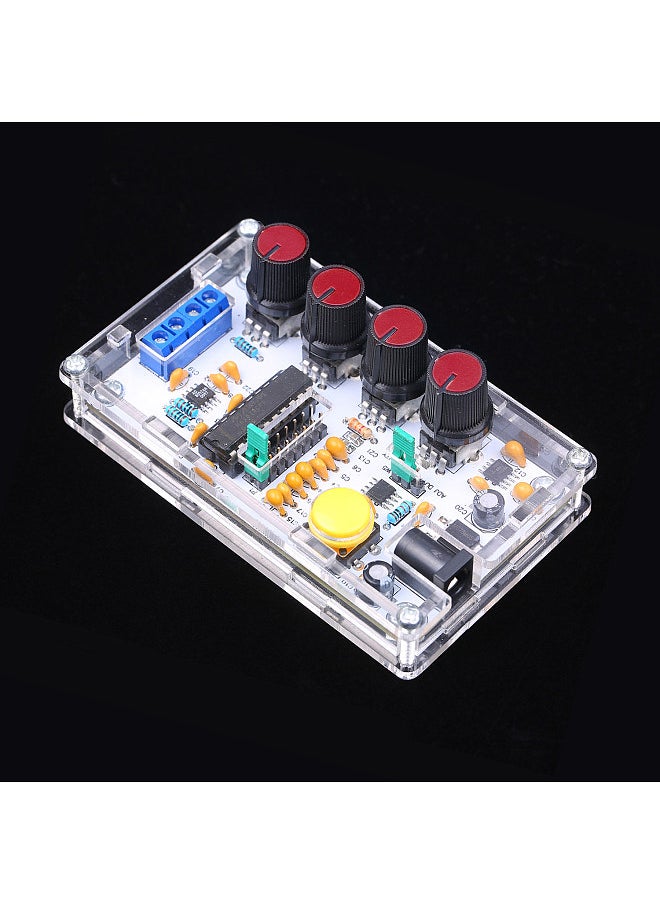

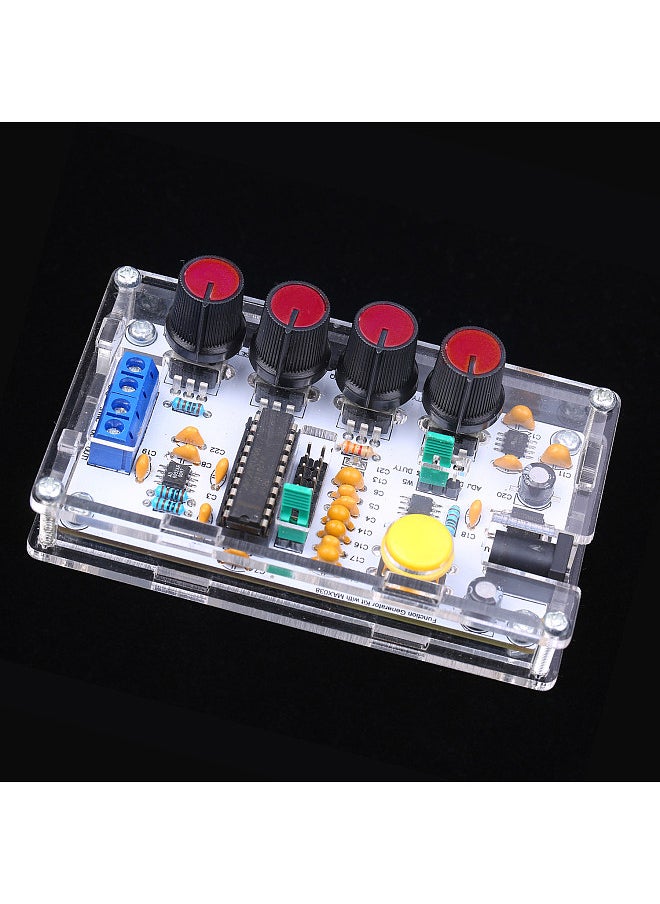

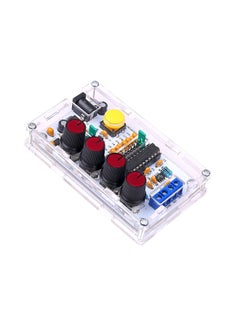

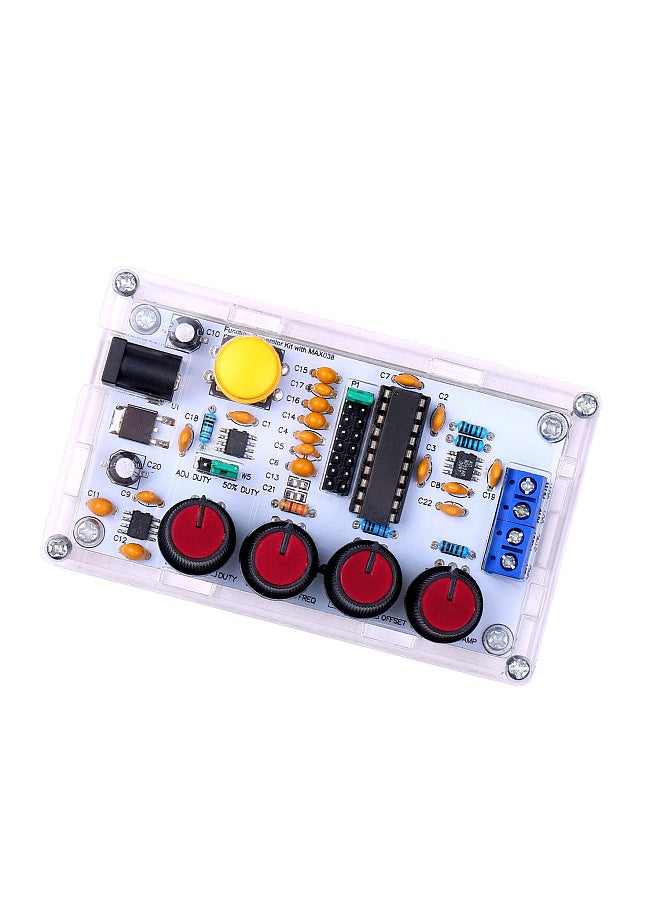

Highlights- Single power supply operation (built-in dedicated power management IC): single power supply operating voltage 9~15V.
- The circuit op amp works in dual power state (dual power supply amplification does not require a DC blocking capacitor to ensure high and low frequency signals are not distorted).
- It can output triangular wave, rectangular wave and sine wave, and forward and reverse sawtooth wave.
- Temperature drift of 200ppm/°C.
- SYNC output with sync signal.
OverviewSpecifications:
Material: PCB+acrylic
Frequency Adjustment Range: 1Hz～20MHz
Duty Cycle Adjustment Range: 15%~85%
Low Loss True Sine Wave: 0.75%
Triangle Wave Output Linearity: 0.1%
Low Impedance Output Buffer: 0.1Ω
DC Offset Adjustable: -5V~5V
Adjustable Output Amplitude: 0.1V~9.5VPP (operating voltage 9V)

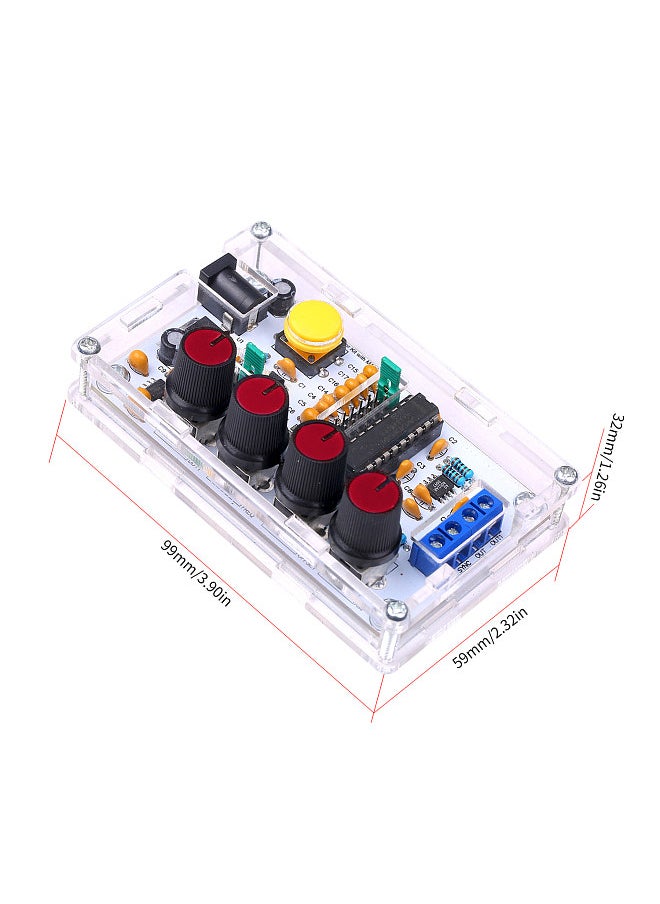

Item Size: 99 * 59 * 32mm / 3.90 * 2.32 * 1.26in
Item Weight: 82g / 2.90oz
Package Weight: 89g / 3.14oz
Package Size: 12 * 9 * 4cm / 4.72 * 3.54 * 1.57in
Note:
The Signal Generator is a DIY Kit, need to assemble by yourself.
