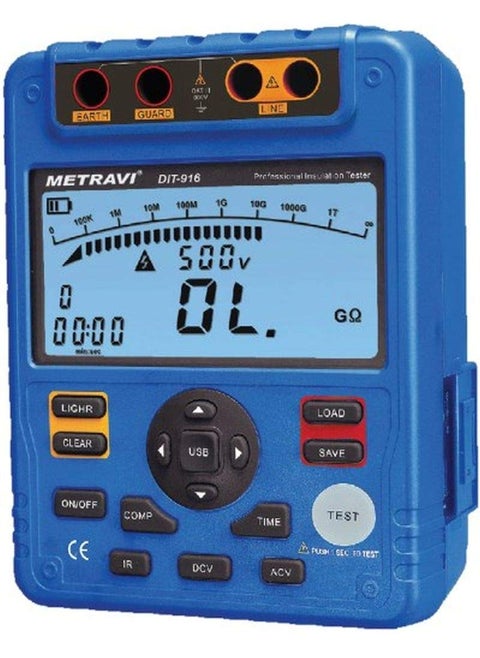

Metravi DIT916 Digital Insulation Tester 1TOhms with USB PC Interface

Test insulation of wires cables transformers motors surge arrestors and generators Selectable testing voltages one testing instrument for low and high voltage systems from 50010002500 and 5000V Insulation resistance measurement up to 1T User selectable programmable timer 10s to 30 min Automatic discharge of test object after completion of measurement Diagnostic tools Polarization index PI Dielectric absorption ratio DAR USB PC Interface Comparison feature to set passfail thresholds for quick measurement verification Dual power source receptacle or batteries Built in internal memory storing 18 measurements Display LCD Digital 9999 counts Analog bar graph Bright Backlight Computer Connection Via USB interface Data Logging Recall The meter automatically selects best range Warning Displayed on the instrument Test Voltage Automatically source the voltage Comes as a complete kit power adapter software USB interface cable hard carrying case batteries complete set of test leads and instruction manual CAT III 600V Confirms to IEC 61010 CATIII 600V overvoltage and double insulation standard COMP Measurement Used for Compare function to set a passfail compare level for the insulation measurement PI Measurement Polarization Index is the ratio of insulation resistance Preset the time for two points and the Meter will carry out the measurement automatically Time To carry out measurement by setting a specified time within 15 minutes Over Loading Display OL on insulation resistance range
