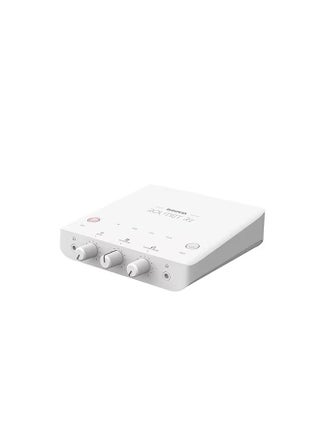

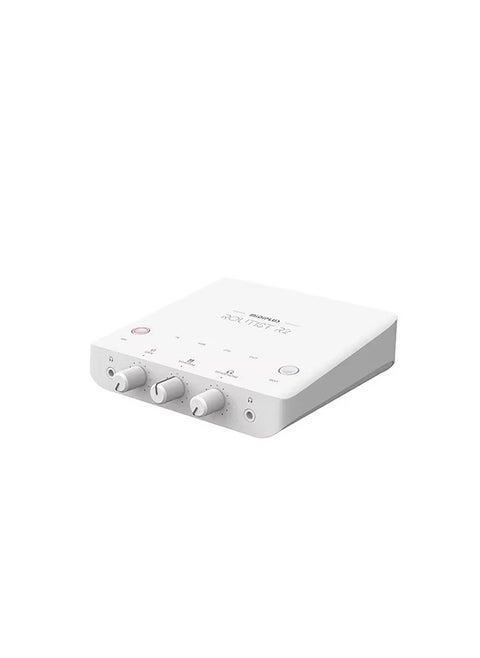

midiplus Routist R2 Professional USB Interface Audio Mixer 1 In 2 Out Livestream Recording Studio Podcast External Sound Card

Products Description

Introduction Thank you for choosing Routist R2 audio interface. Routist R2 is 1 in 2 out USB audio interface. You can supply 48V phantom power to your condenser microphone with only USB bus power supply. You can connect to your mobile phone through the built-in OTG port, providing you a faster and more convenient live streaming experience. With 24bit / 96kHz high resolution sampling rate, support Windows low-latency ASIO driver and will work straight away without needing to install any drivers on macOS. Please read this manual before you start using, to help you quickly understand the basic operations and features of Routist R2.

Features:

* 1 in/2 out USB audio interface * Support 24bit/ 96kHz audio resolution * 1 XLR/TRS combo input for connecting microphone, line-level device or instrument (guitars or basses) * With 48V phantom power supply for condenser microphone * Independent input and output level indicator, can view input and output levels simultaneously * Independent monitor output volume and headphone volume control * Connect to your mobile phone through OTG or 3.5mm jack * Dual headphone outputs * USB bus powered

Model

Routist R2

Bitdepth /Sample rate

24bit/ 96kHz

Ι/Ο

1xXLR/TRS Combo Input, 1x1/8"Phone Jack, 2x1/8"Headphone Outputs, 1x1/8"Monitor Output,1 xUSB C port, 1 x USB C OTG port

Phantom power

48V

Buttons

48V Switch, Instrument Switch

Knobs

Gain, Monitor, Headphone

Dimensions

5.03 × 4.80 × 1.49(inch)

Weight

367g

Accessory

Quick Start Guide, TRRS 1/8 to TRRS1/8"cable, USB Ato USB C cable
