Overview

The intelligent identification line to plug up the identification of the motor, identification line is two green lines, plugged on, pay attention to the car overhead up, the motor will automatically run, at this time the direction of rotation of the motor if the correct, then run 10 to 15 seconds to disconnect the identification line, if the direction is the opposite, then disconnect the identification line and then plug back, the direction of the motor will be changed to positive rotation, then run 10 to 15 seconds, disconnect the identification line, the direction of the motor will be changed to positive rotation. Then run for 10‑15 seconds, disconnect the identification line, complete. After completing the identification, identification line to maintain the disconnected state, do not plug back in

Controller Size: Approx. 8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inch

Display Size: Approx. 8 x 5cm / 3.15 x 1.97inch

Power: 250W/350W

Low-voltage Protection: 1#24V-36V: 19V/30V; 2#36V-48V: 30V-41V

Waterproof: Rainproof

Material: Plastic + LCD + Metal

Options: 1#24V-36V; 2#36V-48V

Weight: Approx. 332g

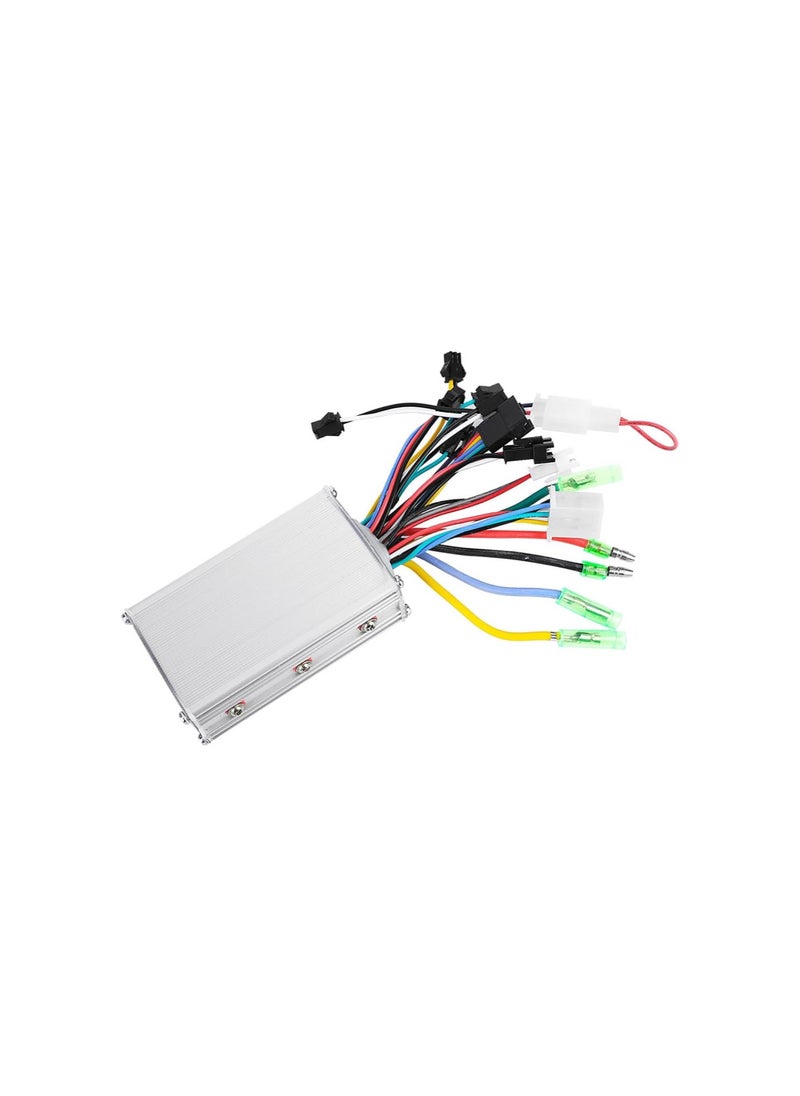

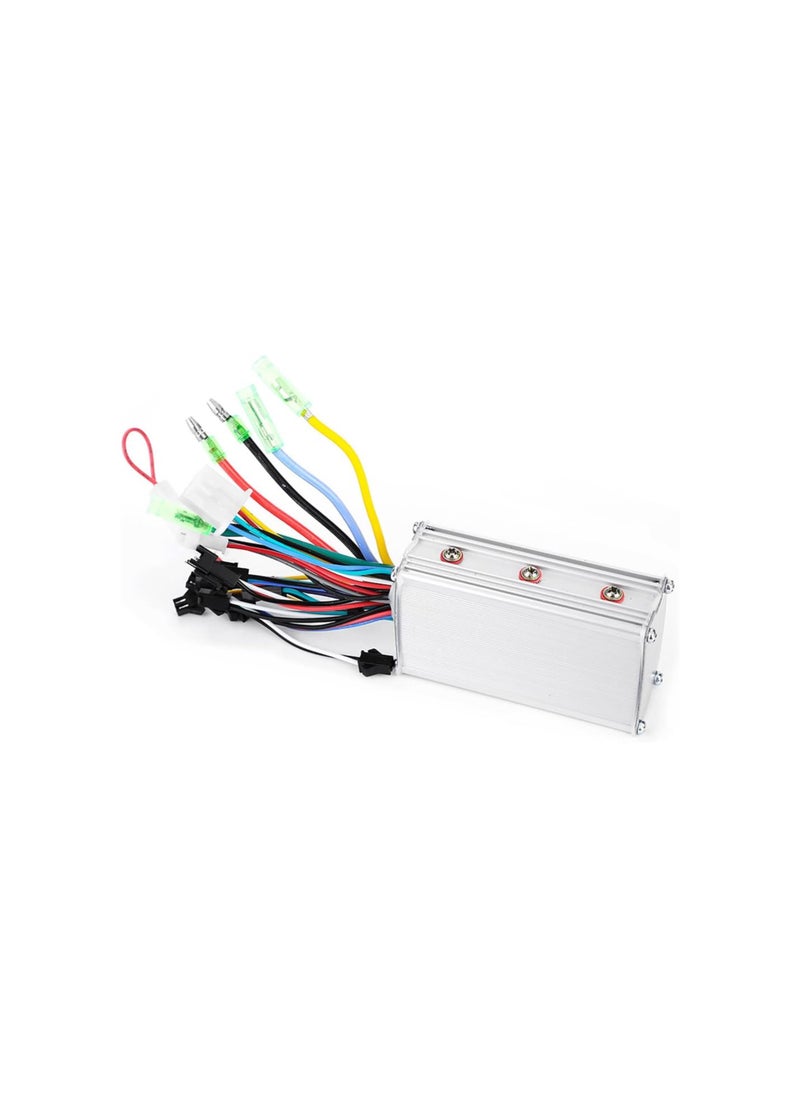

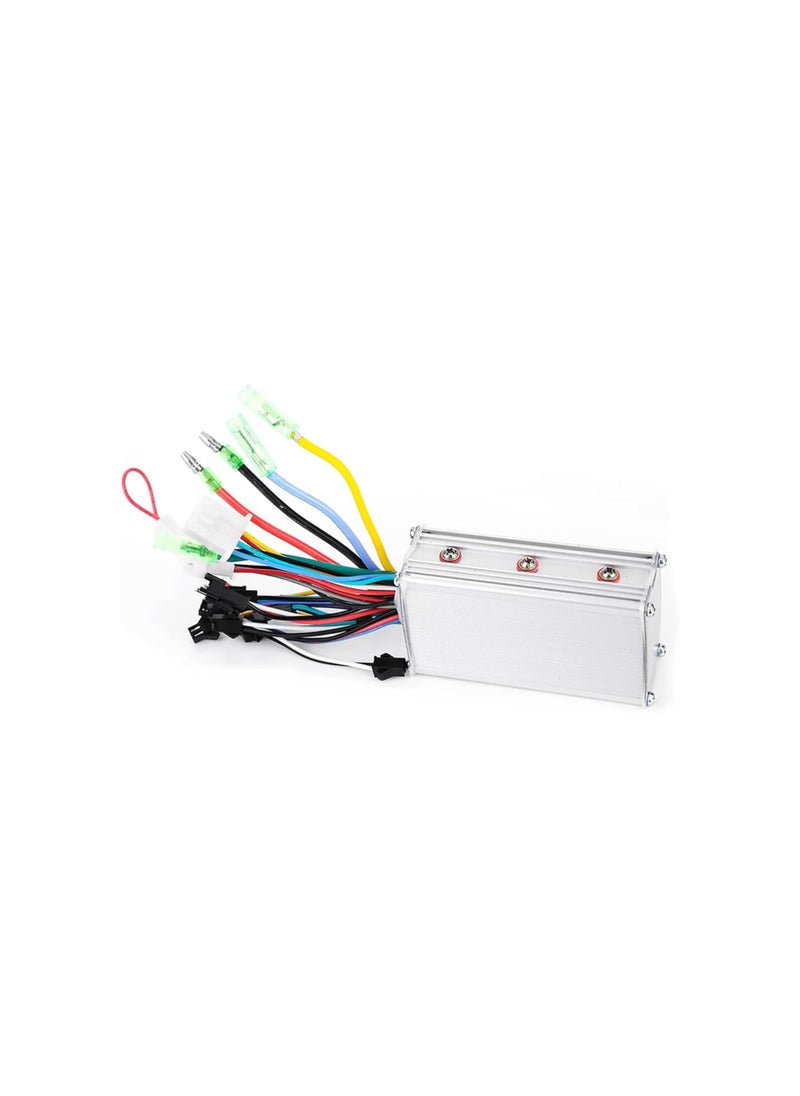

Each cable is labeled with color for different uses.

Red: power positive electrode

Black: power negative electrode

Yellow: power output

Brown: lamp positive electrode

White: lamp negative electrode

Blue: indicator signal

Green: signal receive

Add to Cart Add to Cart Add to CartCustomer Reviews 3.5 out of 5 stars254.3 out of 5 stars483.9 out of 5 stars44 Price $36.23$36.23$19.25$19.25$37.06$37.06 Item NameElectric Motor ControllerElectric Motor ControllerElectric Motor ControllerBicycle Alarm LockBike Handlebar GripBike Seat RackPower250W350W500WSizeController Size:8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inchController Size:8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inch83 x 65 x 37 mm / 3.26 x2.55 x 1.45 inch9.2 x 5.5 x 3.4cm/3.6 x 2.2 x 1.3inLength:137mm / 5.4inRack Length: 35.5cm / 14.0in 3.5 out of 5 stars

OUKA Motor Brushless Controller, 36V-48V Waterproof LCD Display Panel Electric Scooter Controller Kit for Electric, Scooters

Share:

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Fields with an asterisk * are required

***Enter the store name where you found this product*Please select province *Submit FeedbackOUKA Visit the Store on Amazon

Get the product, please be sure to match the phase first:

Specification:

Note:

Rainproof Design

Application

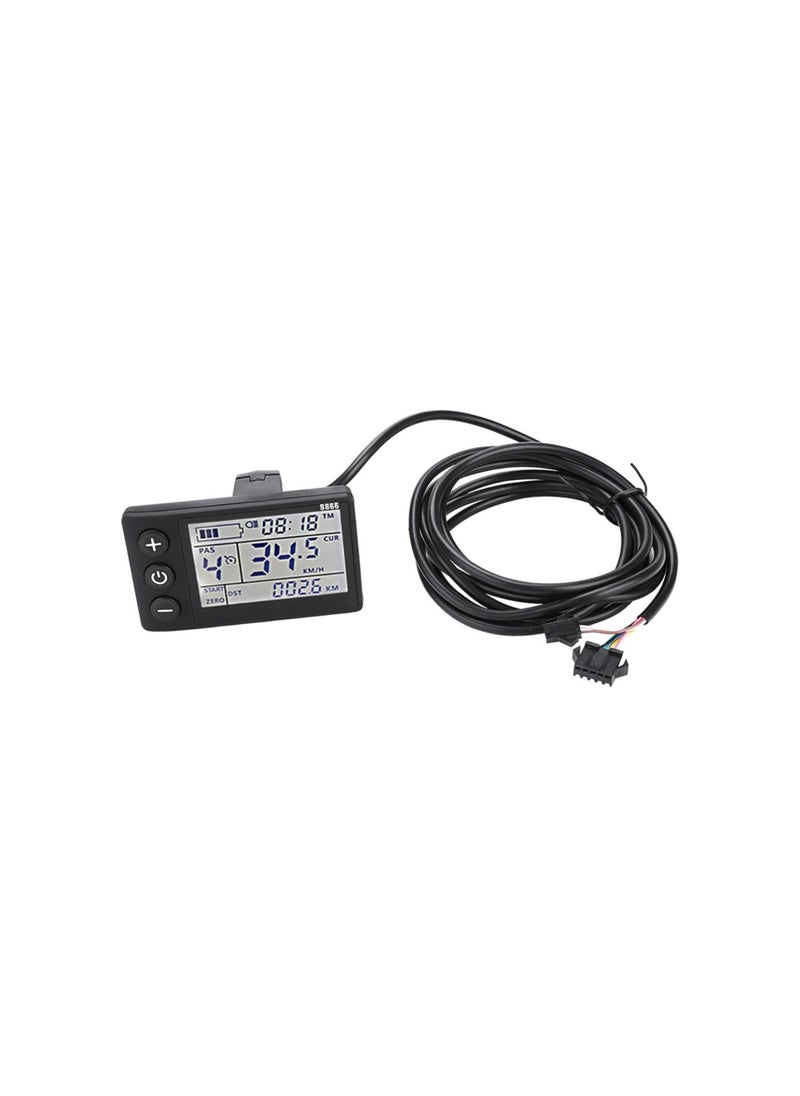

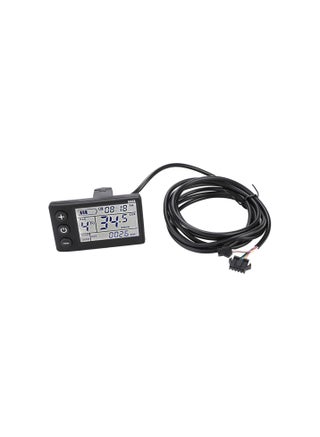

LCD Display and Controller
