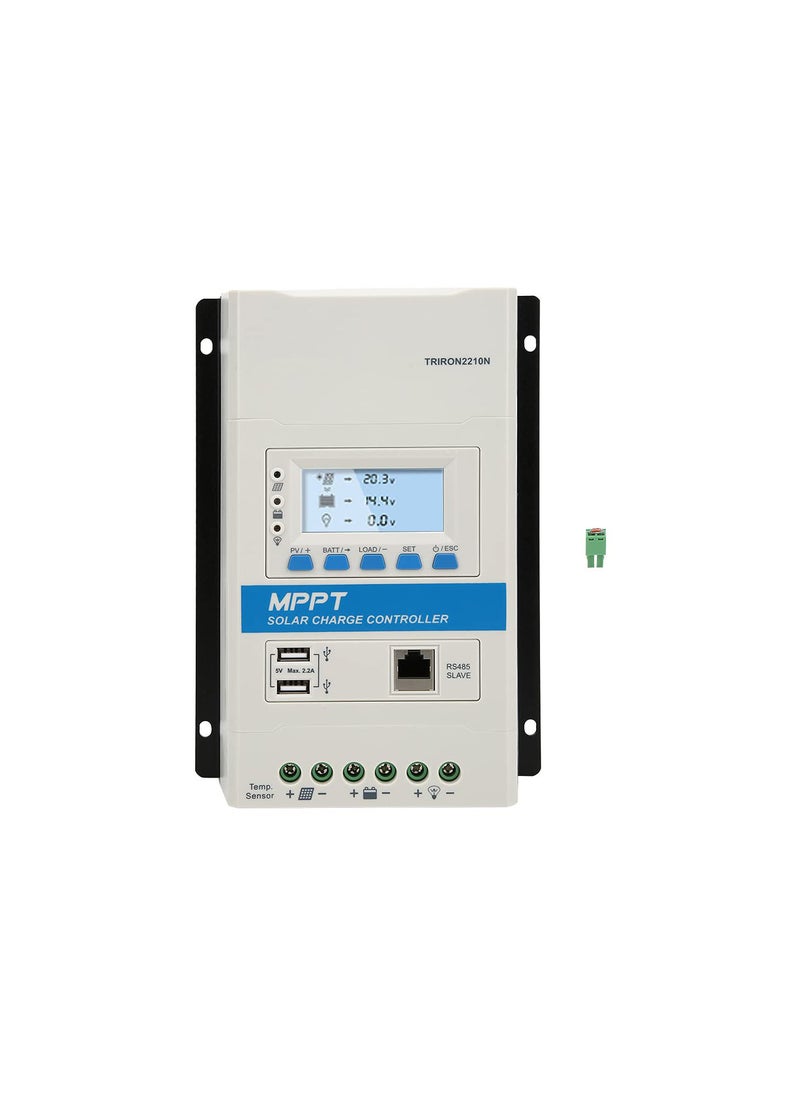

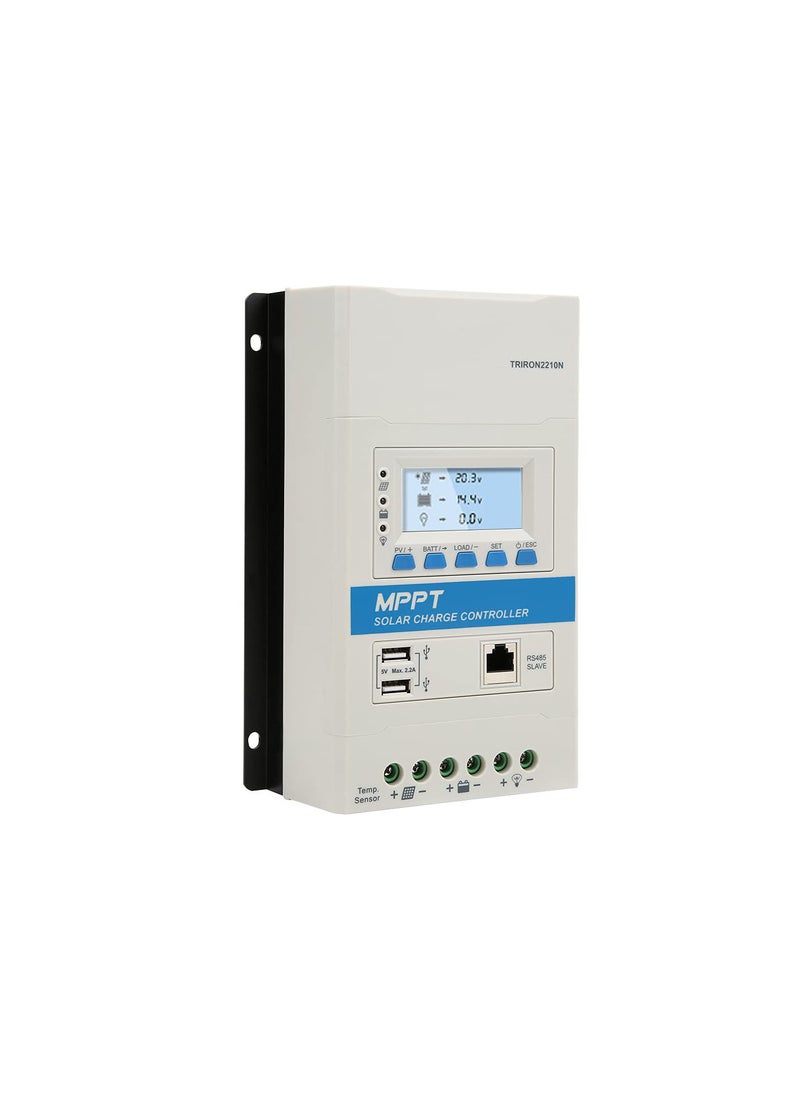

MPPT Solar Charge Controller, 12V/24V Intelligent Regulator Module, Display Standard 2+USB COM Slave(TRIRON2210N/20A)

Feature:
1. . Automatic limitation of the rated charging power and current.
2. . Wide MPP operating voltage range.
3. . Support the lead-acid and Li-ion storage batteries.

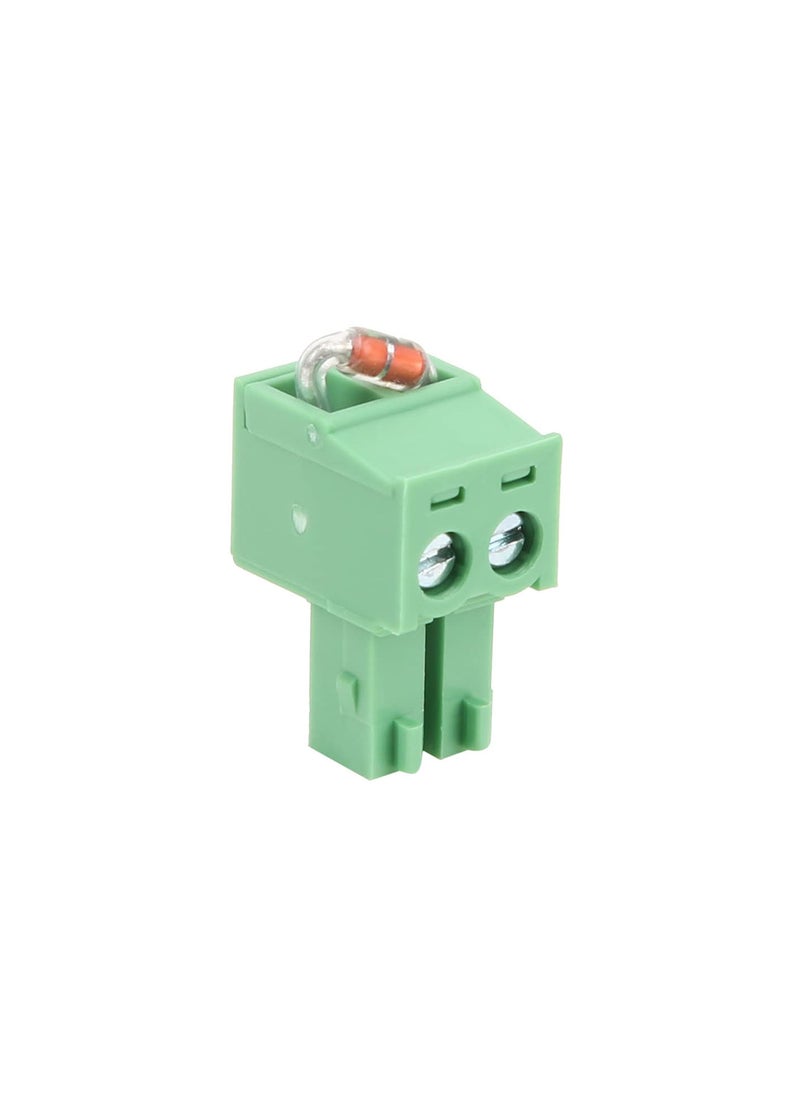

4. . Temperature compensation function for storage batteries.
5. . Real-time energy statistics function.
6. . Overheating power reduction function.
7. . Multiple load work modes.

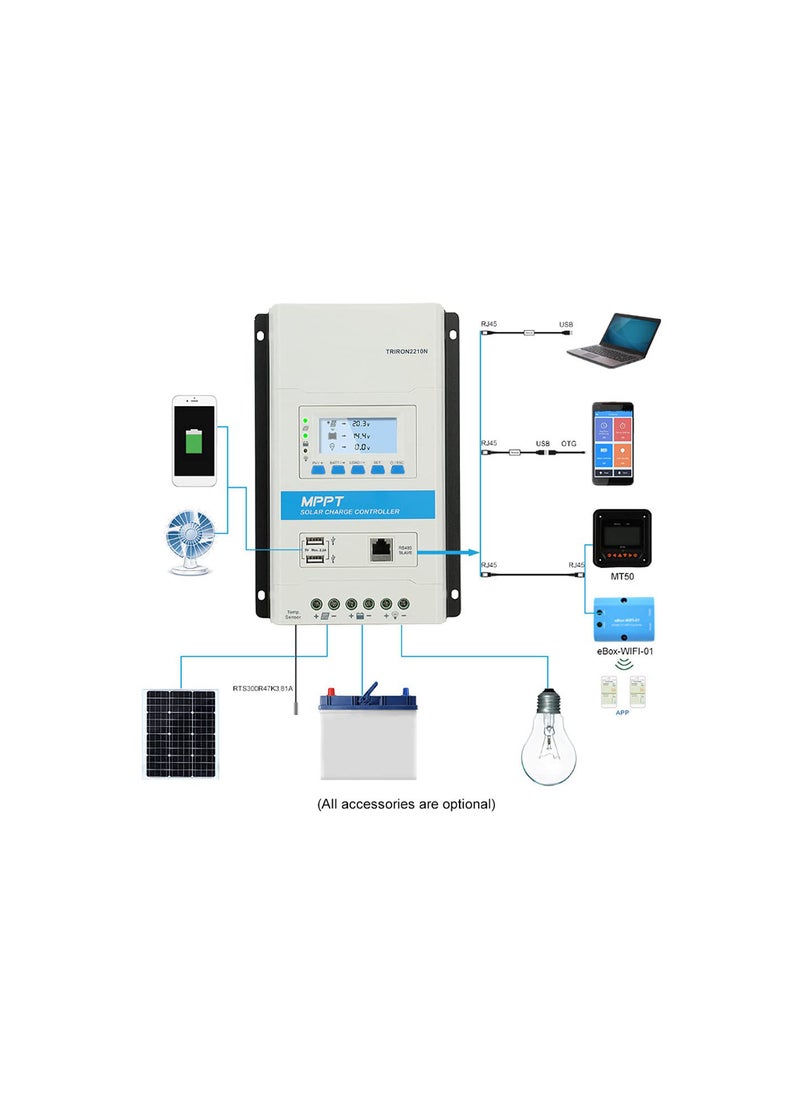

8. . Master and slave RS485 communication modules design display operating data of inverter or controller.
9. . Dry contact connector design can control external equipment switch remotely.
10. . Provide DC power through the USB output interface to charge electronic devices.
11. . Complete electronic protection function.
12. Advanced MPPT technology, with efficiency no less than 99.5%.
13. Advanced MPPT control algorithm to minimize the MPP loss rate and loss time.
14. High quality components for improved system performance and maximum DC/DC conversion efficiency of 98%.
15. Accurate identification and tracking of multi-peak MPP.

Specification:System Voltage Rating: 12/24VDC (when the battery type is" Li-ion battery ", it can not automatically identify the system voltage, please confirm the system voltage before using.)Optional Model: TRIRON2210N, TRIRON3210N, TRIRON4210N
Rated Recharge Current: TRIRON2210N/ 20A, TRIRON3210N/ 30A, TRIRON4210N/ 40A
Rated Discharge Current: TRIRON2210N/ 20A, TRIRON3210N/ 30A, TRIRON4210N/ 40A
Battery Operating Voltage Range: 8 ~ 32V
Maximum PV Open-circuit Voltage: 100V (minimum temperature), 92V (25℃)
MPP Operating Voltage Range: (Battery voltage + 2V) ~ 72V
Maximum PV Input Power: TRIRON2210N (260W/ 12V, 520W/ 24V), TRIRON3210N (390W/ 12V, 780W/ 24V), TRIRON4210N (520W/ 12V, 1040W/ 24V)
Static Loss: <14mA (12V); <15mA (24V)
Discharge Circuit Voltage Drop: <0.18V
