Specifications:
Brand: BSIDE
Model: Z1
Color: Black
Shell Material: ABS
Display: LCD
Maximum Display Value: 2000 Digits
Polarity Indication: Self-indicating, '-' means negative polarity
Over-range Display: 'OL' or '-OL'
Sampling Time: The meter figures show about 0.4 seconds
Automatic Power Off Time: 5 minutes
Battery Low Voltage Indication: LCD display symbol
Operational Temperature And Humidity: 0~40℃, 0~80% RH
Storage Temperature And Humidity: -10~60℃ , 0~70%RH

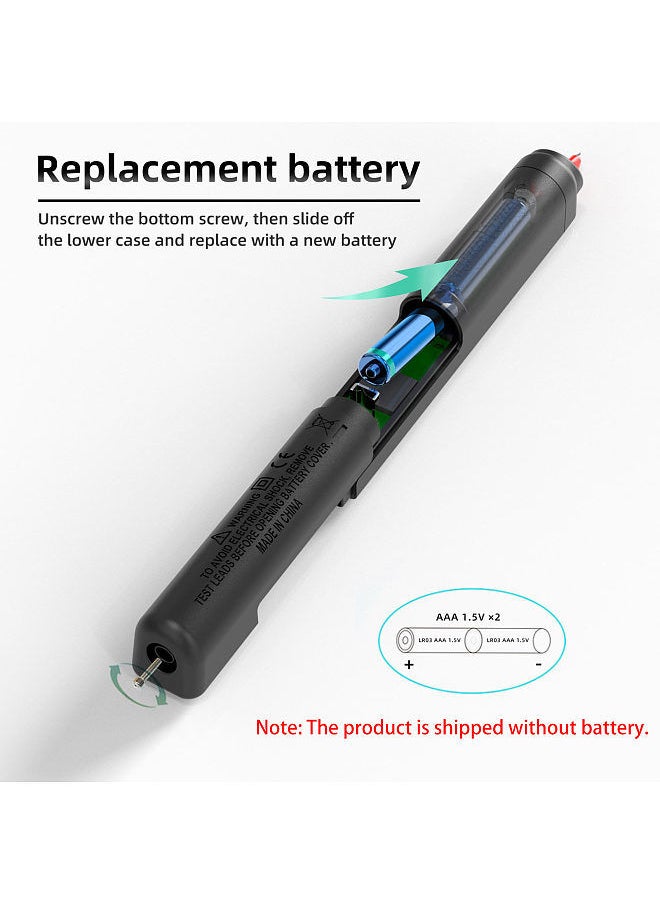

Battery: 1.5V AAA x 2 ( Not Included )
Automatic Range: YES
Full Measuring Range Overload conservation: YES
Continuity: YES ( If the resistance < 50Ω,the buzzer sounds )

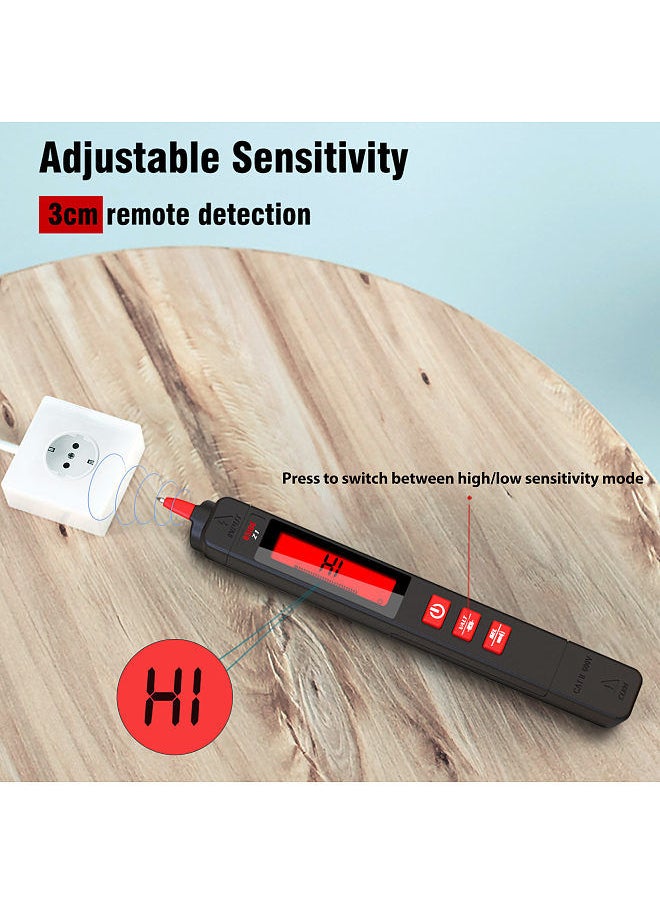

V-Alert (NCV): YES

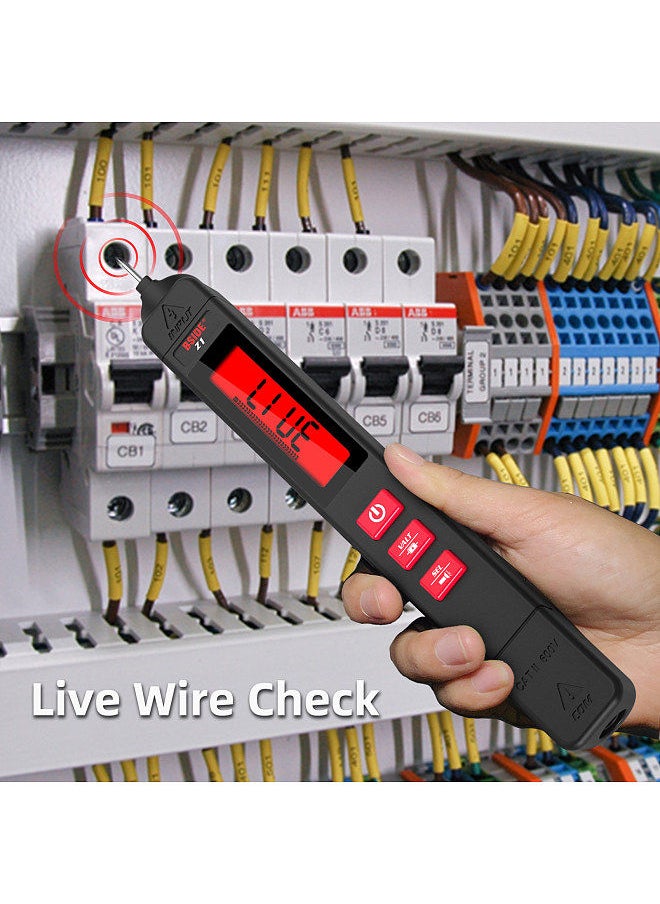

Live / Neutral Wire Check: YES

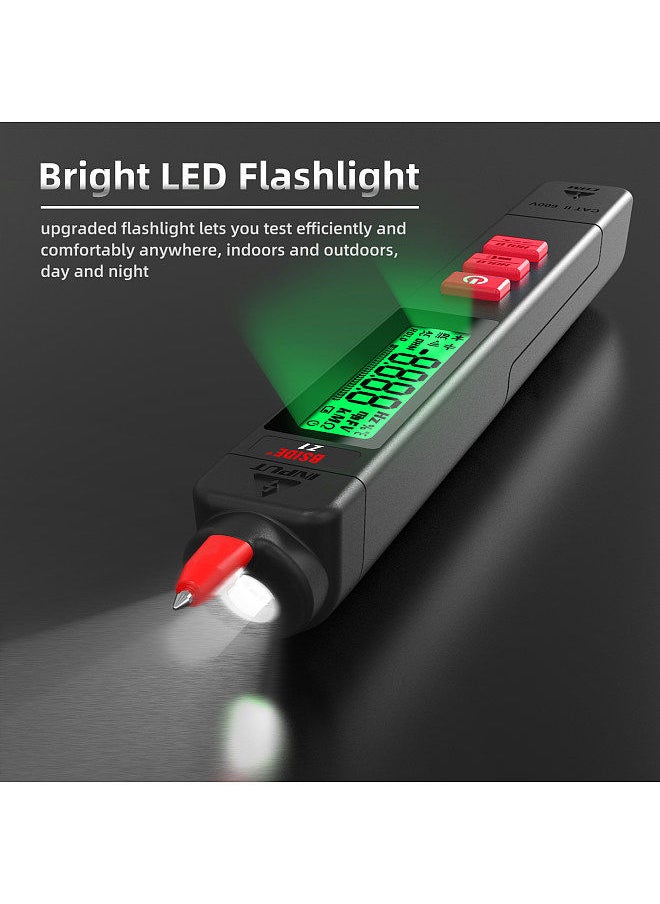

Flashlight: YES
Auto Mode: Automatic identification of AC voltage, DC voltage, resistance
Operating Altitude: ≤ 2000m
Multimeter Size: 2.25 * 2.2 * 18.8cm / 0.89 * 0.87 * 7.40in (L*W*H)
Packing Size: 6.5 * 3.3 * 19.5cm / 2.56 * 1.30 * 7.68in (L*W*H)
Multimeter Weight: 52g / 1.83oz ( without battery)
Gross Weight: 120g / 4.23oz
Function
Range
Resolution
Accuracy
Input Impedance
Maximum Input Voltage
Red Backlight Alert
DC Voltage
0V~500V (DC Mode)0.5V~500V (Auto Mode)
0.01V
±(0.8% + 3 counts)
1MQ
500V DC & AC (RMS)
>90V
AC Voltage
0V~500V (AC Mode)0.8V~500V (Auto Mode)
0.01V
±(1.2% + 5 counts)
1MQ
500V
>90V
Resistance
0Ω~2MΩ
1Ω
±(1.2% + 3 counts)
/
/
/
Frequency
40Hz~1000Hz (0~30VAC)40Hz~400Hz (0~500VAC)
0.1Hz
±(2.0% + 10 counts)
/
/
/
