Color | Black |

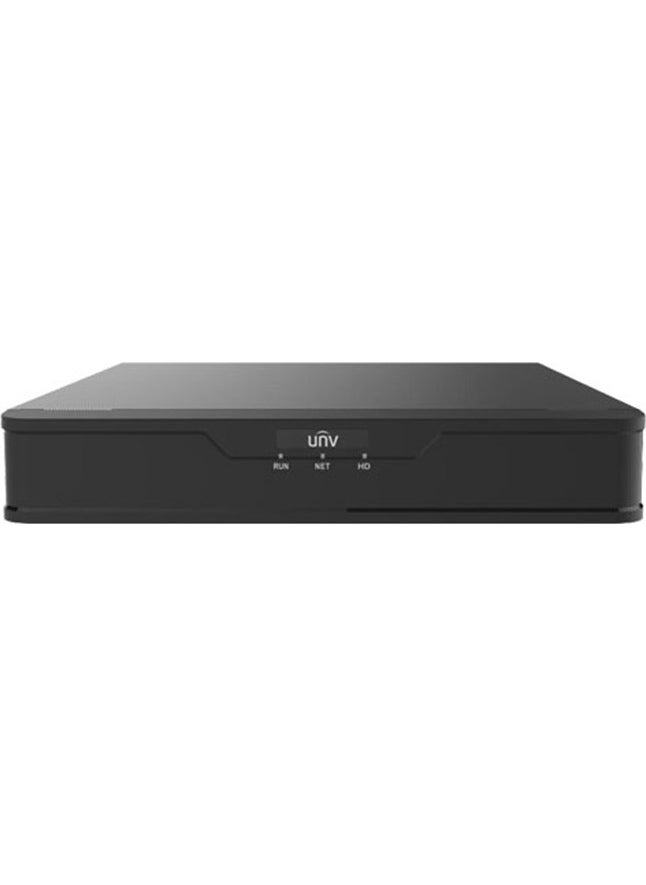

UniviewNVR301-08S38 Channels8mp Supported
1 Disc H.265+ NVR RecorderNumber of Channels | 8 Channels |
Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Band width | Incoming: 64 Mbps - Outgoing: 48Mbps |
Image Output | 1xHDMI, 1xVGA |
Video Output Management | HDMI and VGA Synchronized |
HDMI Resolution | 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
VGA Resolution | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Video Compression Format | H265/H265+/H264 |
Playback Resolution | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 |
Recording Playback Capacity | Max. 8 channels |
Smart Playback | Supports |
Smart Analytics | Face Detection, Virtual Border, Restricted Zone, Voice Detection, Face Search, Behavior Search |
Disk Support | 1x6TB |
e-Sata Support | No |
MiniSas | not support |
Raid Support | No |
Ethernet | 1xRJ45 (10/100Mbps) |
Network Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Max. User Access | 128 |
PoE Support | not support |
USB Port | 2xUSB2.0 |
Alarm Support | not support |
Audio Support | 1 Output |
RS485 Support | not support |
RS232 Support | not support |
Supply voltage | DC12V |
Power consumption | Max. 5W |
Operating temperature | -10°C ~ +55°C |
Size | 260mm×240mm×46mm |
Weight | 0.98 Kg |
Virtual Border
Draw one or four different virtual boundaries in a single video and create instant alarm actions for two-way vehicle and person passages.
Restricted area
Determine areas where you do not want to park or be in, and take control of your areas with instant alarm actions.
Face Detection
It detects and records faces in images made with smart IP cameras. In suspicious cases, facial recordings detected can be listed and images of that moment can be viewed.
U - Code Compression
With superior compression technology, top quality images take up much less disk space and bandwidth.
HDMI
It offers high-definition imaging performance with HDMI and VGA image outputs.
Sound
Control ambient sounds as well as the image by using Audio Inputs and Outputs.
Cloud Storage
It easily associates your Google Drive and Dropbox accounts with the device and transfers instant videos and screenshots to your cloud accounts.
High Capacity
For more storage space, max. It supports all security disks with a capacity of 6TB.
High Bandwidth
High resolution streaming support with 64/48 Mbps bandwidth.
Colour Name | Black |
