Creation of
Value & Function
The NX230 mid-tower gaming case effortlessly combines a bevy of in-demand features: USB3.0 connectivity, ample storage drive bays, room for expansion, and includes one 120mm fan in the rear. With support for up to a 360 mm liquid cooling radiator in front, NX230 is easy to build with and easy to cool.
LED Control Button
Just a single press to change the front panel’s ARGB lighting effect at will
Design
Form factor: Midi-Tower
Type: PC
Material: Plastic,SPCC
Product colour: Black
Supported motherboard form factors: ATX,ITX,Mini-ATX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of expansion slots: 7
Side window:Y
Anti-dust filter:Y
On/off button:Y
Reset button:Y
Maximum CPU cooler height:16 cm
Maximum graphics card length:30 cm
Maximum PSU length:16 cm

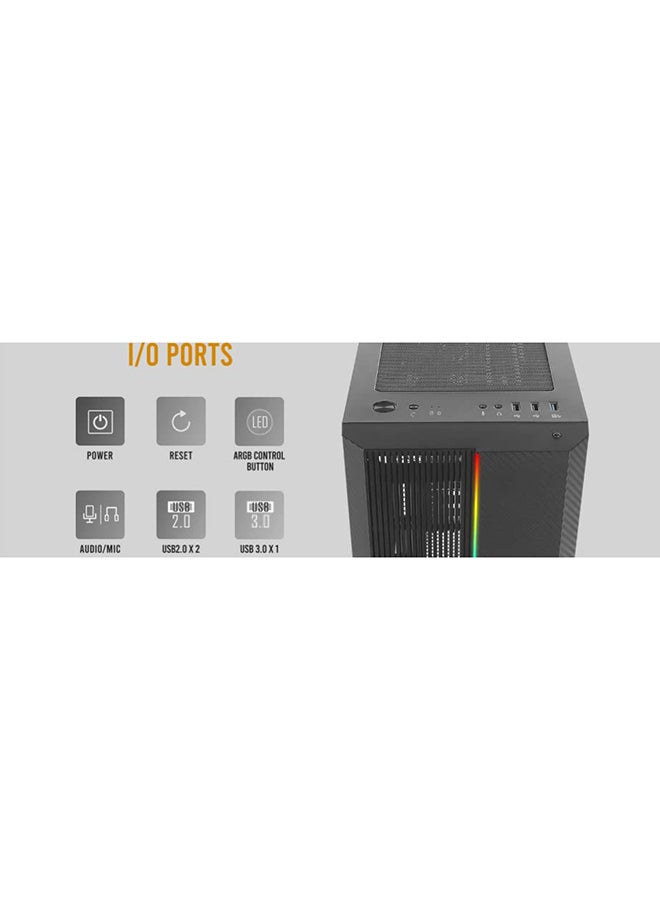

Ports & interfaces
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:1
Audio input: Y
Audio output: Y

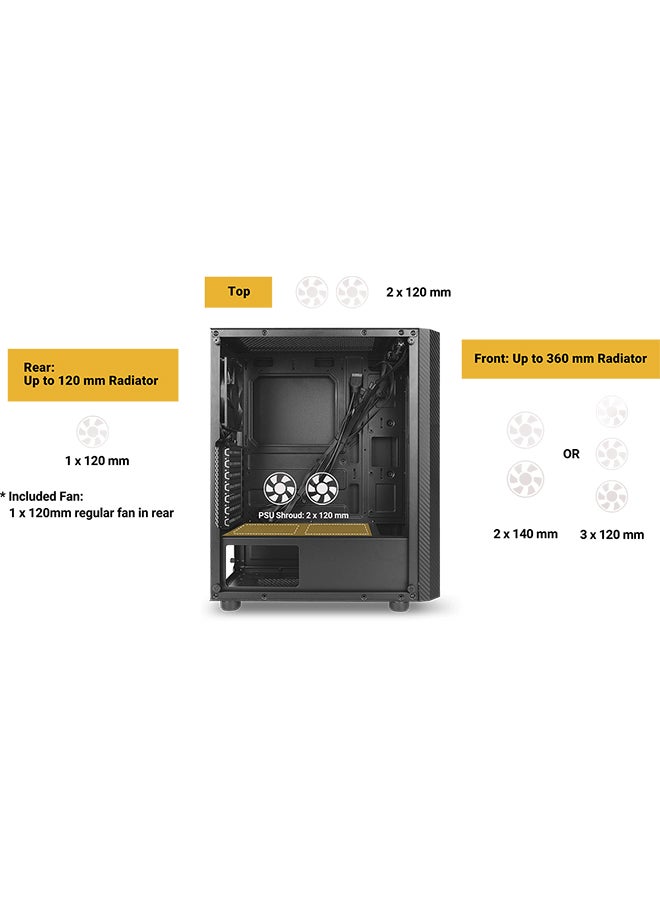

Cooling
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120 mm
Front radiator fan sizes supported: 360 mm
Rear radiator fan sizes supported: 120 mm
Storage
Supported HDD sizes: 2.5,3.5"
Weight & dimensions
Width: 210 mm
Depth: 400 mm
Height: 460 mm
Weight: 3.36 kg
Packaging data
Package weight: 4.2 kg
