Highlights- 2.36” LCD screen capable of displaying 24-bit color
- Customize display with intuitive NZXT CAM controls
- NZXT RGB Connector for NZXT RGB accessories
- Two 140mm Aer P radiator fans with chamfered intake and fluid dynamic bearings
- Fine nylon mesh sleeves strengthens rubber tubing to protect from leaks

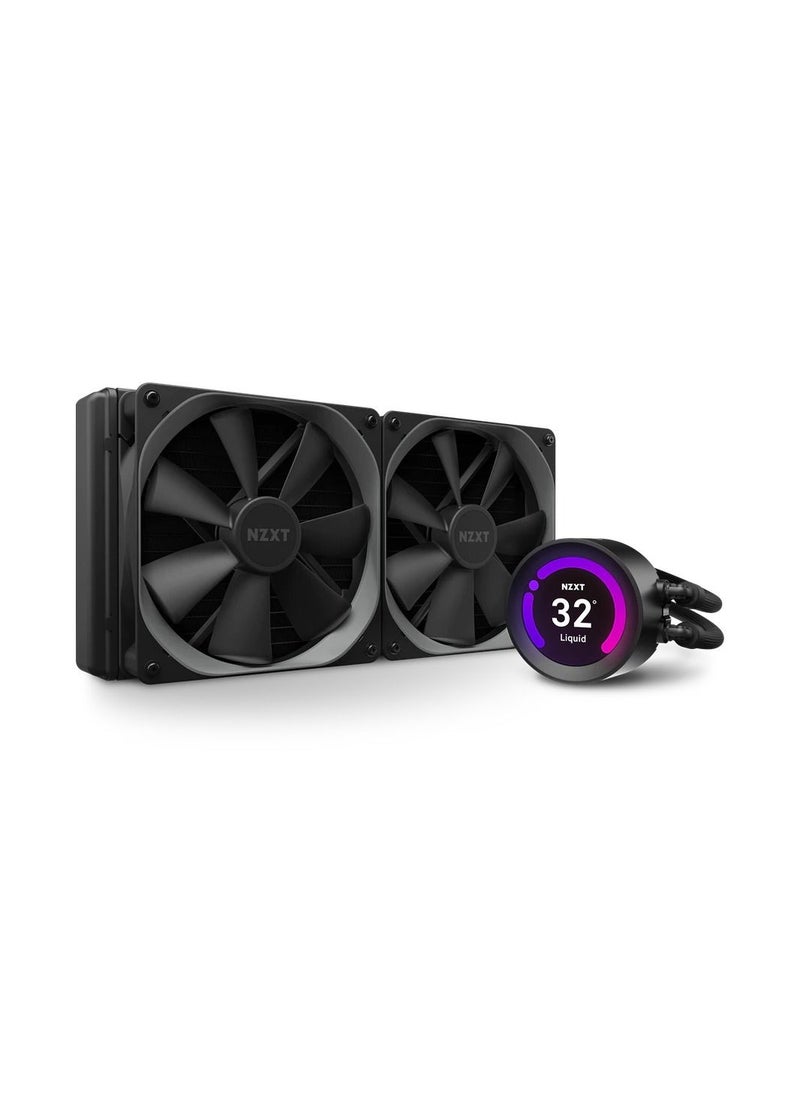

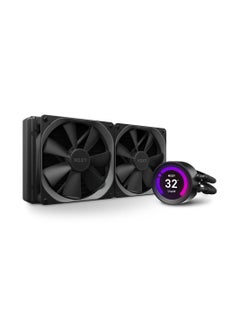

OverviewNZXT Z63 280mm Liquid Cooler with LCD Display
Key Features:
2.36” LCD screen capable of displaying 24-bit color
Customize display with intuitive NZXT CAM controls
NZXT RGB Connector for NZXT RGB accessories
Two 140mm Aer P radiator fans with chamfered intake and fluid dynamic bearings
Fine nylon mesh sleeves strengthens rubber tubing to protect from leaks
Specifications:
Cap
Diameter 79mm
Height 52mm
Material Aluminum, Plastic
Fan Control Yes
NZXT RGB Channel Connector 1
Rotation Orientation Software adjustable Default, +90, +180, and -90 Degrees

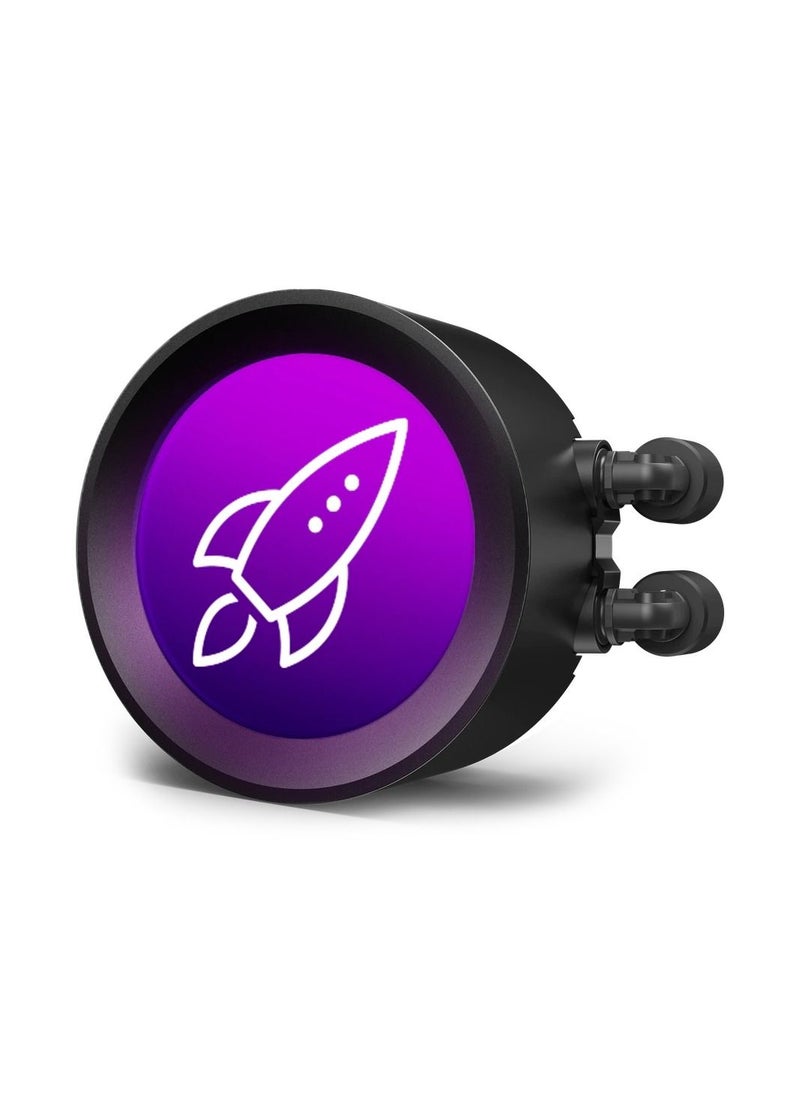

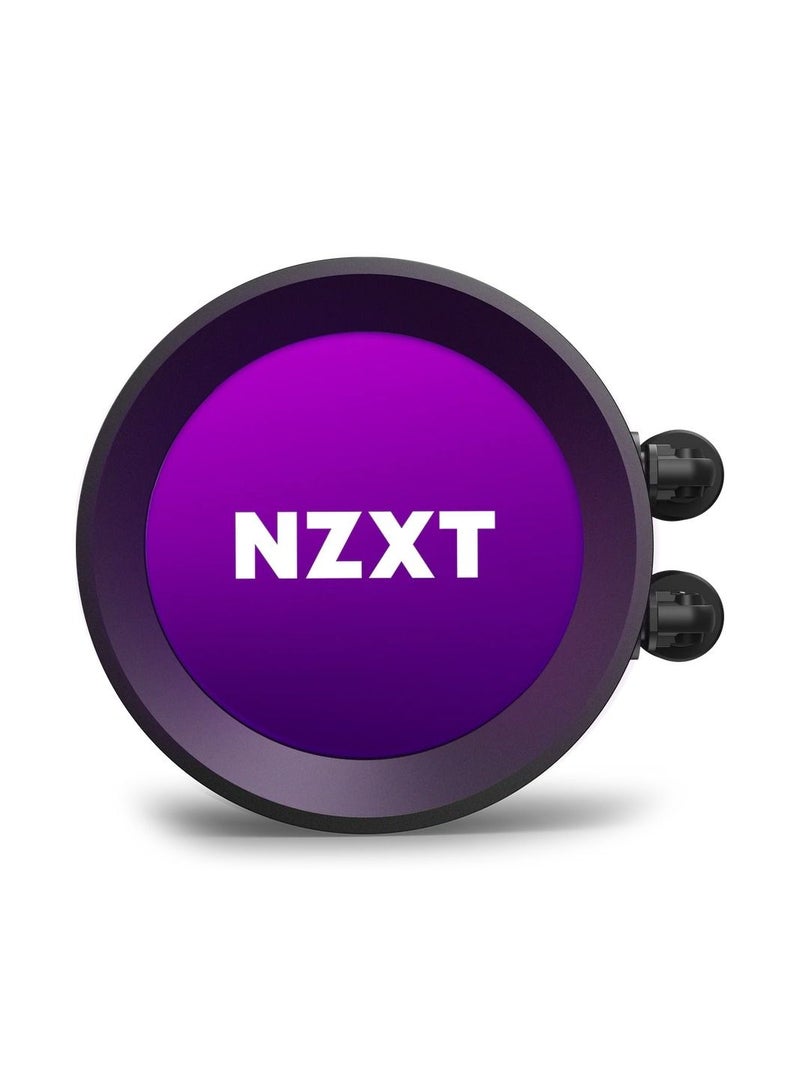

LCD Display Panel
Active Area 2.36” (60mm) Diameter
Color 24-bit True Color LCD
Resolution 320 x 320px
Brightness 650 cd/m²

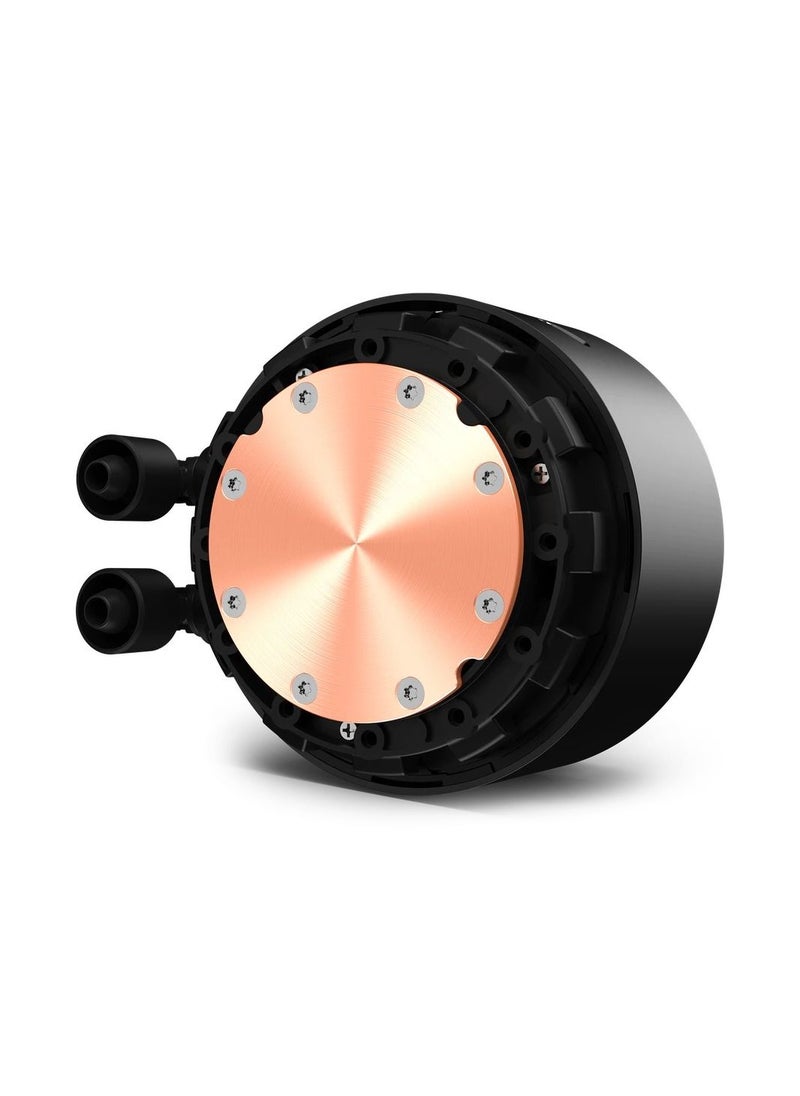

Water Block
Material Copper, Plastic
Pump
Motor Speed 800 - 2,800 ± 300RPM
Power 12V DC, 0.3A

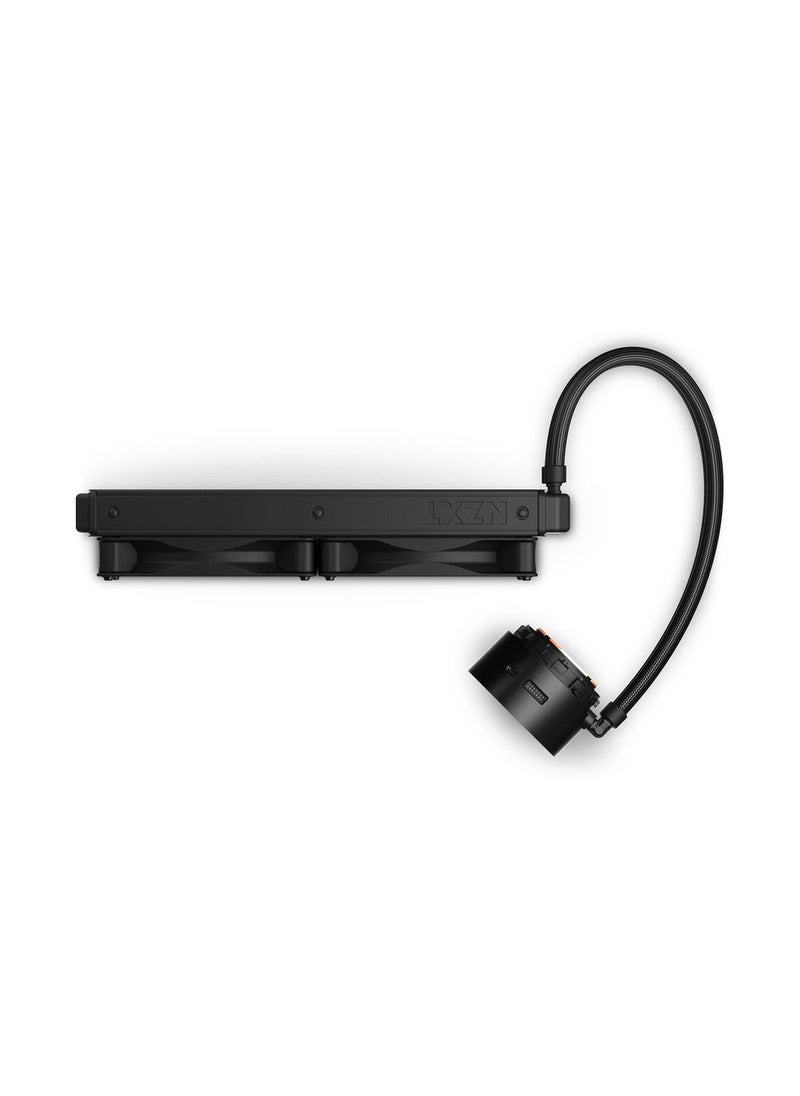

Radiator
Dimensions 143 x 315 x 30mm
Material Aluminum
Tube
Length 400mm
Material Rubber with Nylon Sleeve
Fan Specs
Model Aer P 140mm
Quantity 2
Speed 500 - 1,800 ± 300RPM
Airflow 27.27 - 98.17 CFM
Static Pressure 0.21 - 2.71 mm-H₂O
Noise 21 - 38 dBA
Fan Connector 4-pin PWM
Compatible Socket & CPU
Intel Socket LGA 1200, 115X, 1366, 2011, 2011-3, 2066
AMD AMD Socket AM4, sTRX4*, TR4* (*Threadripper bracket not included)
