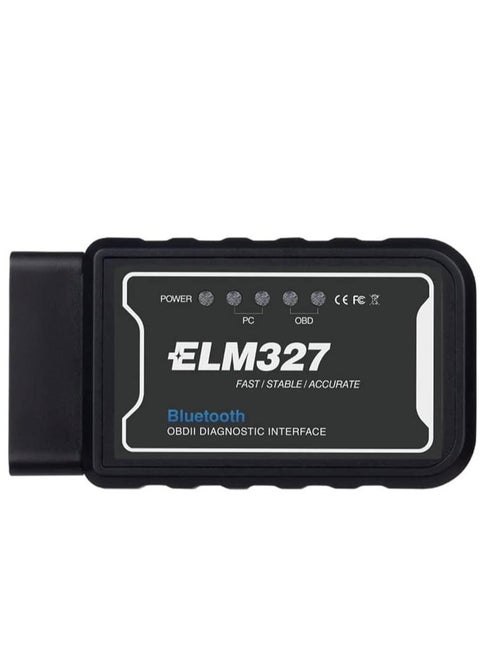

OBD2 Bluetooth Diagnostic Scanner Code Reader, V1.5 OBD2 Car Failure Detector for Android and Windows PC, Car Auto OBD II Diagnostic Scan Tool for Check Engine Lights, Stable & Fast

How to use ?

Plug the device in your car's OBD2 port, start the car, enable Bluetooth on your Android phone or tablet, search for "OBDII"

and pair with it (pin 1234), run the downloaded App with simple settings and wait until it connects your car's ECU successfully.

If you use the same OBD on 2 or more cars, you need to disconnect Bluetooth and close App when finish testing one car, and

Support Protocols:

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

Main Functions:

With proper software installed in the host device, you may have following parameters read out from your vehicle:Vehicle Speed

RPM

Fuel Consumption

Engine Coolant Temp

Fuel Pressure

Calculated Engine Load

Throttle PositionIntake Manifold Pressure

Air Intake TempTiming Advance

Mass Air Flow

Fuel Level

Barometric Pressure

EVAP System Vapor PressureFuel Trim

re-match the Bluetooth when you insert the OBD into another car.

Note:

The “Bluetooth for Android (Enhanced Version) “ is more stable than “Bluetooth for Android” .
