Odroid-C2/c1+ Case- Enclosure Box for Odroid-C2/c1+ Blue

Overview

Color	blue
Piece	1 Piece

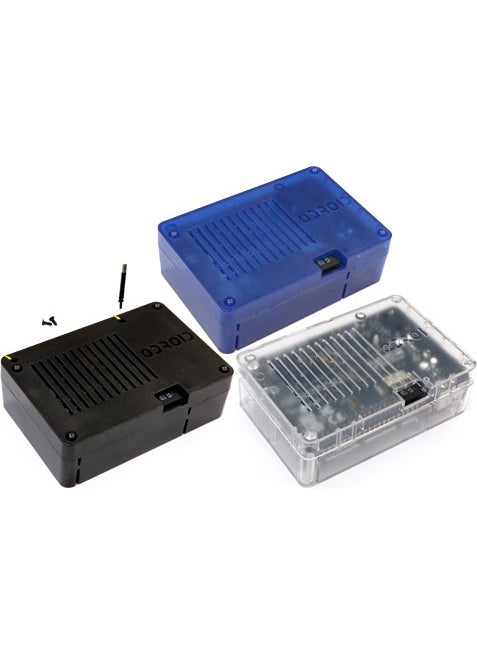

ODROID-C2/C1+ Enclosure Box

We designed these cases for those who appreciate the beauty of the bare PCB board but still want to protect the ODROID-C2/C1+ from dust and weather conditions. The translucent case has openings for all outputs, including the GPIO port, making it a perfect fit for projects that rely on external hardware.

Features


Strong & Durable Polycarbonate Plastic
Size: 90 x 59 x 28 mm
Weight: 32g

The drawings of the plastic case are supplied in AutoCAD format.
DWG file :




Side View   The cover over GPIO pins can be easily removed by cutting of a few ribs and will give you easy access to the GPIO port. If you are using the USB-UART Module kit, the cable can also be routed through this opening.	Bottom View   This case has more vent holes on the bottom side and has a slot for your MicroSD card.

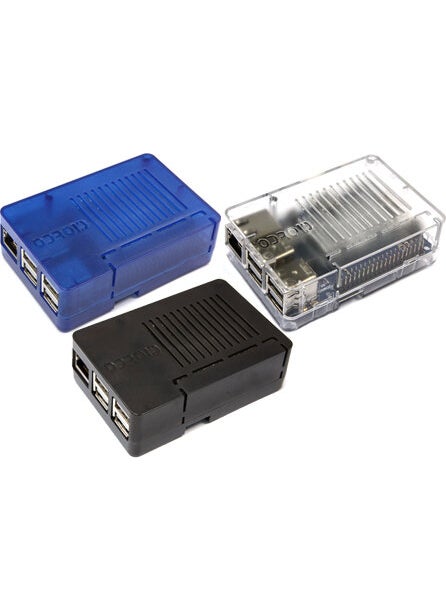

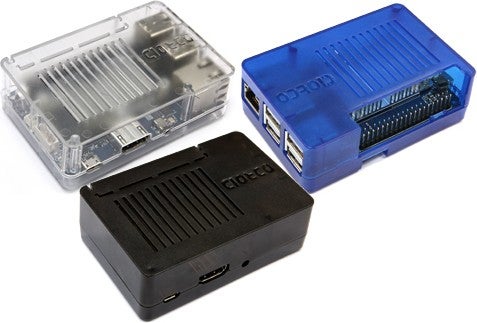

There are openings for Ethernet, 4 x USB Host, microUSB, HDMI and DC Jack. Fit the ODROID-C2 / C1+ in the case using the locking tabs and secure it using two included screws through the screw holes on the bottom side. A spare screw is included in the package. You will need a small screwdriver.
