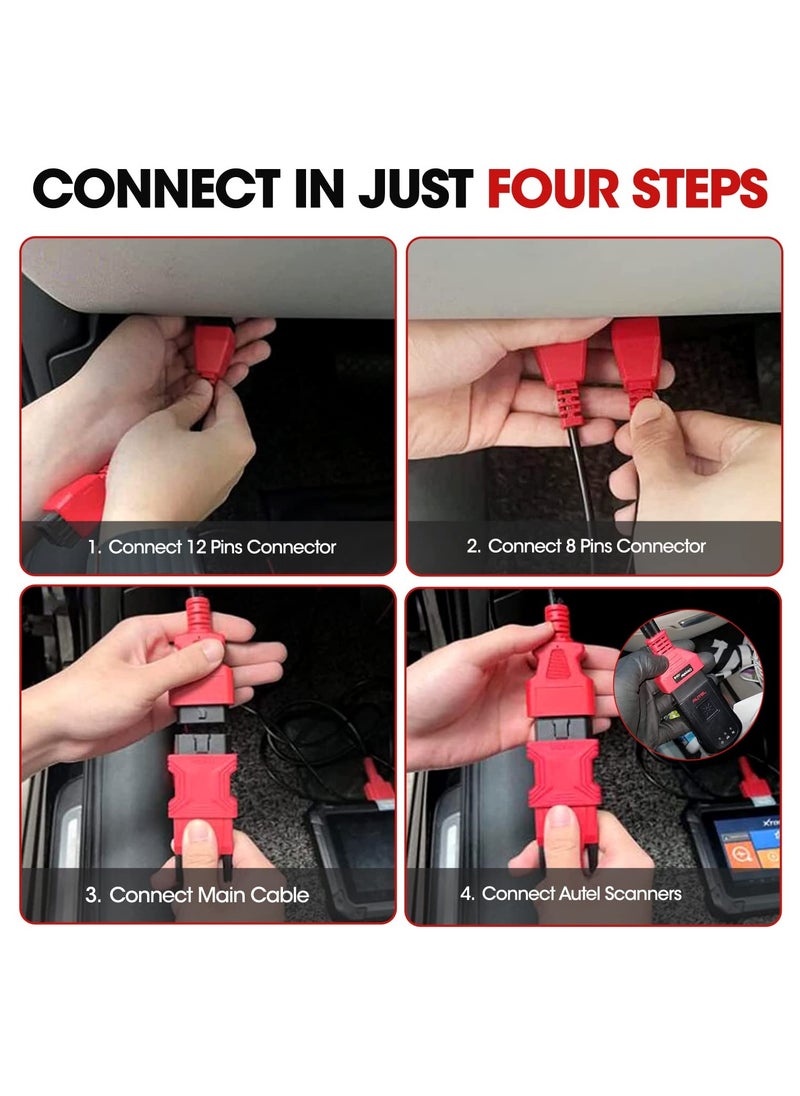

Connection in 4 Simple Steps

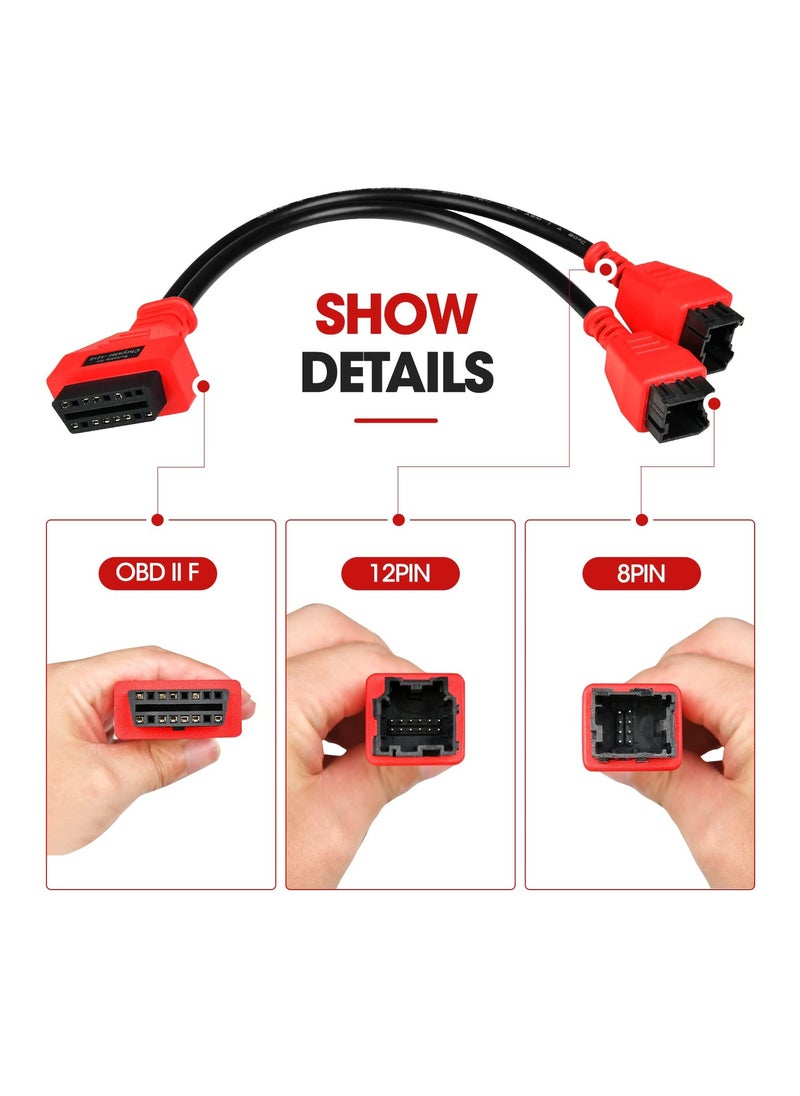

1. Find and unplug the 12pin and 8pin connectors of the SGW module 2. Connect the FCA 12+8 PIN port directly to the 12PIN and 8PIN ports (connect to the two connectors of SGW) 3. Connect the other end of the FCA Chrysler diagnostic cable directly to the 16-pin OBD2 diagnostic test cable or to the OBD Bluetooth interface 4. Connect the 16-pin OBD2 diagnostic cable to the scanner or establish communication between the OBD Bluetooth interface and the scanner.
Work with Autel Scanners
This Original OBD Chrysler 12+8 main line is compatible with Autel devices, such as: MK808S MK808 MX808S MX808 MK808BT MK808BT PRO MP808S MP808 DS808K DS808 DS708 MP808BT MP808BT PRO MP808BT KIT MS906 MS906 PRO MS906 PRO-TS MK908 PRO II MS908S PRO II MS909 MS919 ULTRA IM508 IM508 PRO IM608 IM608 PRO etc.
Compatible Vehicle Models

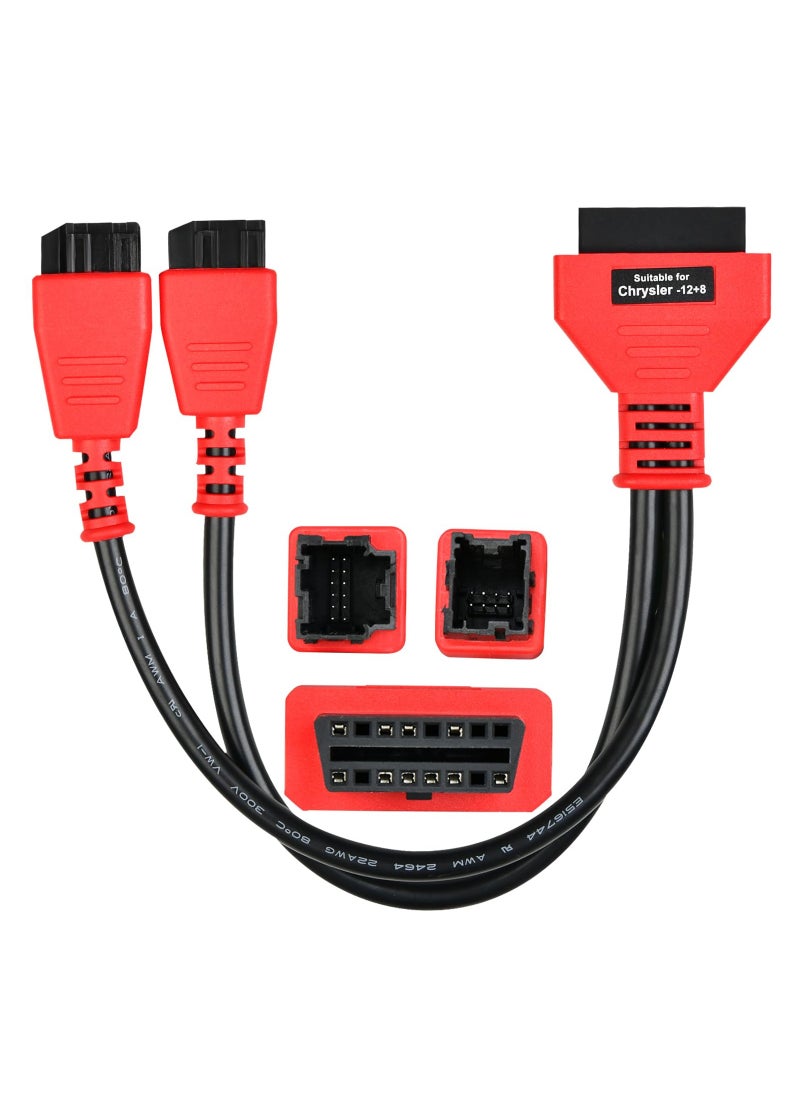

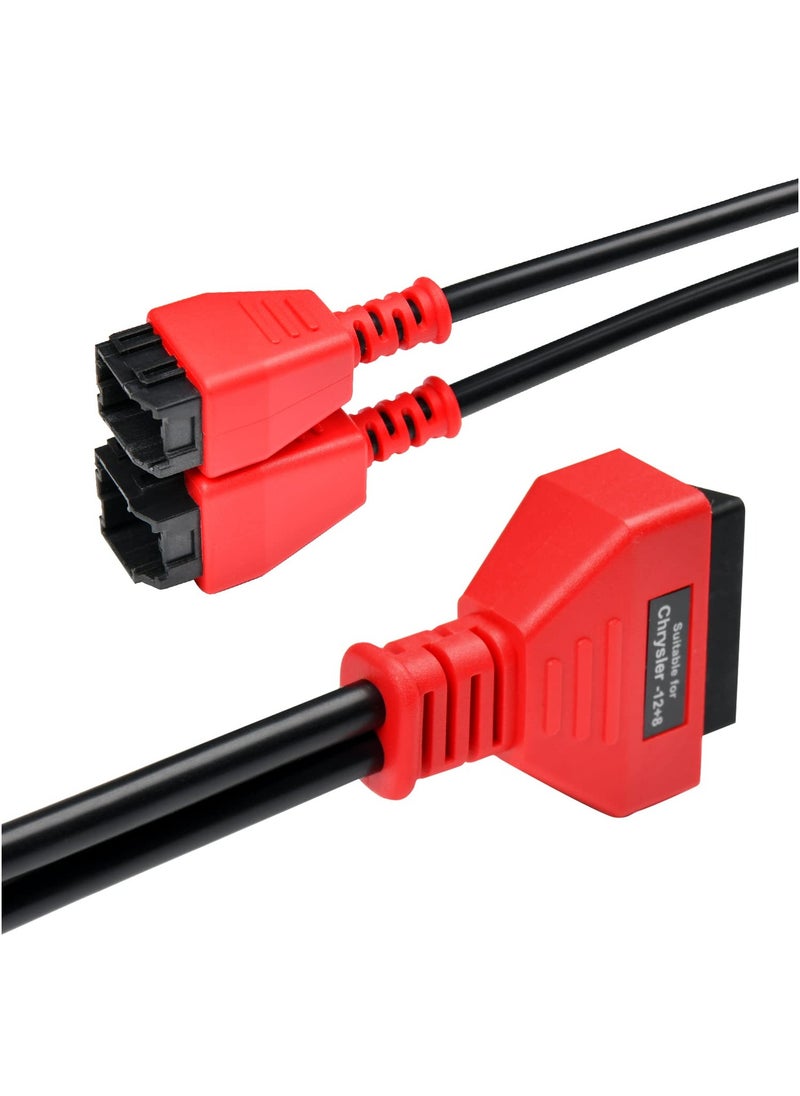

This Original Chrysler 12+8 diagnostic cable can bypass the Security Gateway Module (SGM) and communicate with 2018 and later Chrysler, Dodge, Jeep, Fiat and Alfa vehicles, allowing the scanner to work on the above vehicles Execute complete system diagnostics, service functions, and other code functions.
"
