PCB Terminal Block - Mpt 0.5/ 7-2.54 Standard
placeholder
PCB Terminal Block - Mpt 0.5/ 7-2.54 Standard
magnifyZoom

PCB Terminal Block - Mpt 0.5/ 7-2.54 Standard

27.50

Coupons

decorative
Get up to 300 AED cashback

Payment discount

Product Overview


ColorGreen
TypeTerminal

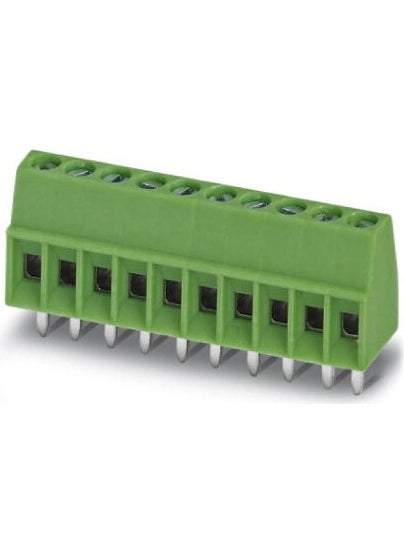

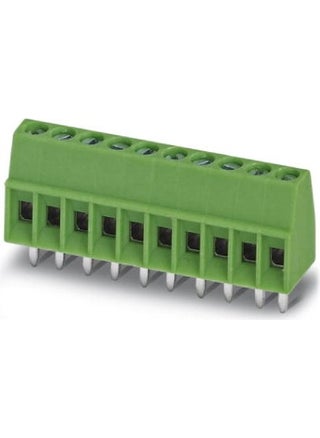

Note: The figure shows the 10-pole version

PCB terminal block, nominal current: 6 A, nom. voltage: 160 V, pitch: 2.54 mm, number of positions: 7, connection method: Screw connection with lift mechanism, mounting: Wave soldering, cable/PCB connection direction: 0 °, colour: green

Your benefits

  • Worldwide use possible thanks to the well-known connection principle
  • Low temperature rise thanks to maximum contact surface
  • Allows connection of two conductors
  • Extremely small design for the relevant conductor cross-section






Specifications

Colour NameGreen
