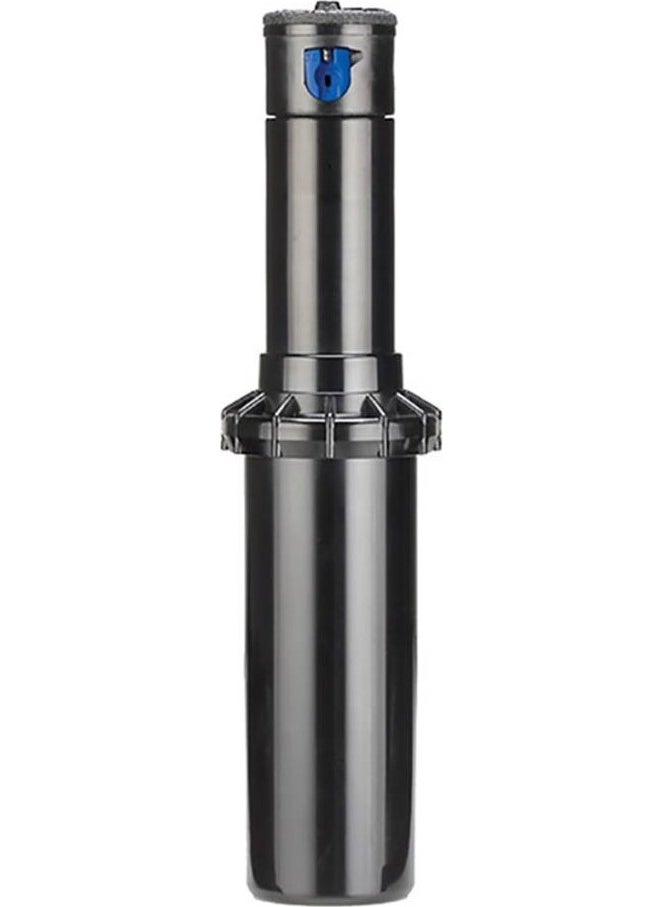

Pgp-04 3/4" Inlet 10 Cm Pop-Up Adjustable Angle Rotor Sprinkler

Hunter Pgp-04 3/4" Inlet 10 Cm Pop-Up Adjustable Angle Rotor SprinklerTotal Height:19 cm
Pop up Height: 10cm
Outlet Diameter: 4.5 cm
Inlet Diameter: ¾" BSP

PGP Ultra builds on the best-selling PGP Rotor and raises the bar with a variety of new features developed through three decades of research, customer feedback and laboratory testing. Among the most striking advantages of PGP Ultra are its wear-free gear mechanism and automatic angle memory. These two features. It allows the rotating head to return to its original set angle position without being damaged, regardless of where it is turned. Other advanced features include 22 nozzles with various radius options and adjustment screws. PGP Ultra offers project implementers a range of efficient options for every site.

Application: Personal/Commercial

Shooting Distance: 4.9 - 14.0 m

Flow rate: 0.07 - 3.23 m³/h

PURIFIED WATER DISCRIMINATION COVER

WEAR-FREE GEAR MECHANISM

ADJUSTING SCREW

ADJUSTABLE PART AND FULL CIRCLE IN ONE MODEL

DRAIN CHECK VALVE (4.56 M)

AUTOMATIC ANGLE MEMORY

HUNTER ROTORS: PGP, PGP-Ultra and I-20

This video is an overview of Hunter personal and light commercial rotors.

Purple caps indicate areas where non-potable irrigation water is used.The patent-pending, wear-free, vandal-resistant gear mechanism allows the head to be rotated without damage.Use a flat head screwdriver or Hunter wrench to make easy and simple adjustments as needed.Patented adjustment feature from 50 degrees to 360 degrees in a single model.Since air in the system pipes can cause long-term damage to the rotors and plumbing, the drain check valve prevents water from draining from the lines when the system is turned off. This saves water, reduces the load on the system and extends the life of the system.With this feature, the body always returns to its set angle, no matter where it is turned. This feature protects against vandalism in any environment.
