Highlights- No. of Channels: 4/3/2
- Max power output: 200 W x 4 (4Ω) 300 W x 4 (2Ω) 600 W x 2 (4Ω Bridged)
- RMS power output: 100 W x 4 (4Ω) 150 W x 4 (2Ω) 125 W x 4 (1Ω) 300 W x 2 (4Ω Bridged)
- Frequency Response: 10 Hz to 50 kHz
- Impedance: 1Ω to 8Ω
- Total Harmonic Distortion(THD): <0.05%
- S/N Ratio: >95 dB
- Automatic Signal Sensing and Turn-On: Yes
- Crossover Frequency: 40 Hz to 500 Hz
- Bass Boost Frequency: 50 Hz
- Baas Boost Leve: l0 dB to 18 dB
- Dimensions: 252 mm x 60 mm x 215 mm

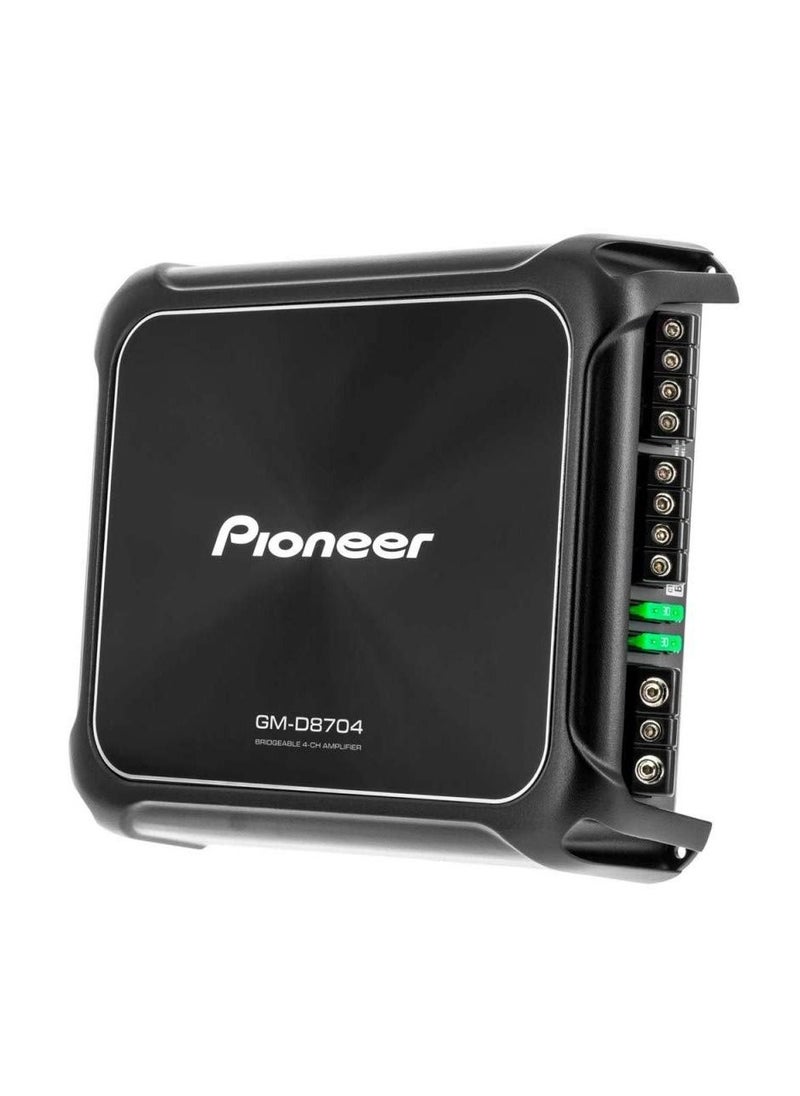

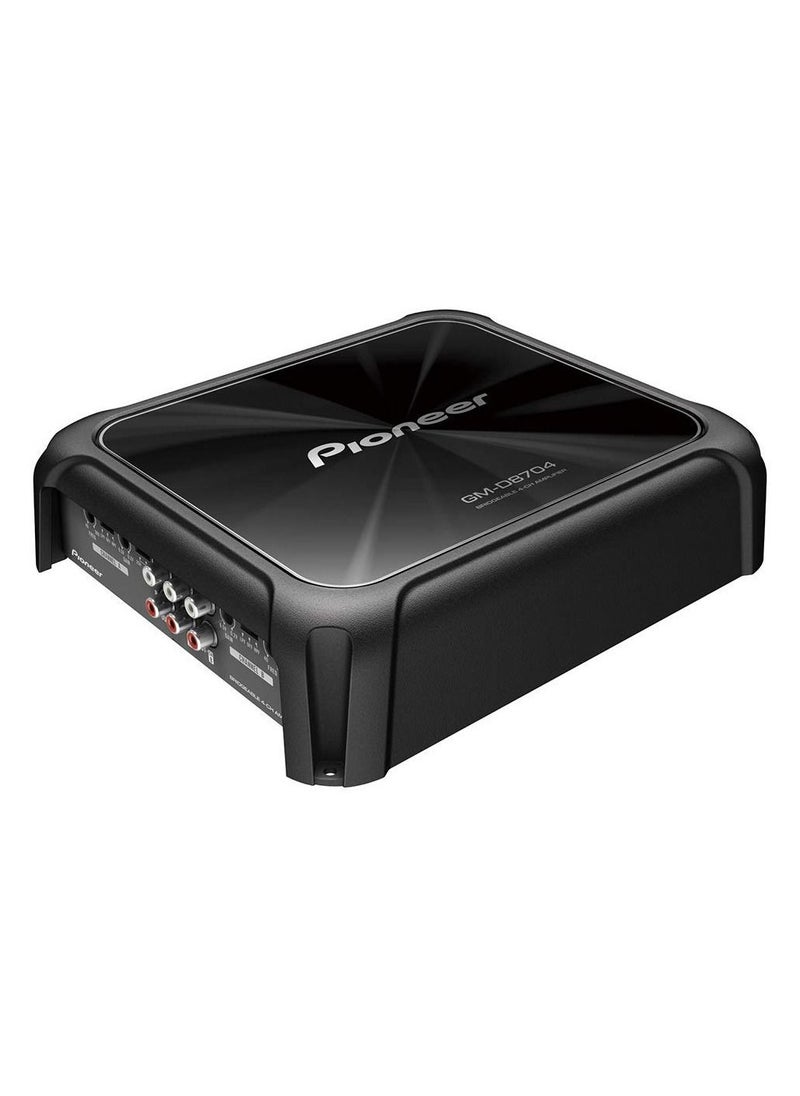

OverviewGM-D8704 4-channel amplifier will greatly improve the sound quality in your vehicle. This amplifier will power your front and rear speakers with 100 watts RMS each. You will hear much more of the little details in your music, especially when you turn your system up to overcome road noise. With this amplifier, you can run your front speakers with the front channels (A), then combine the rear channels (B) to drive a subwoofer. You can also put this versatile amp into 2-channel mode to send up to 300 watts RMS each to a couple of component speakers or subwoofers. The front channels have a variable high-and low-pass filters to adjust the sound for front sound staging or a finely tuned bass. Switchable high and low pass filters on the rear channels to enhance the full-range speakers. Speaker-level inputs allow you to add this amplifier to a factory system. This Class D amplifier is CEA-2006 compliant.
