Product Overview

Specifications:

  • Material: ABS + PC
  • Color: White, Black(Optional)
  • Working Voltage: AC 110~240V
  • Rated Load Current: 10A
  • 220V Rated Load: Max. 1200W(incandescent lamp)
  • Max. 300W(LED, energy-saving lamp)
  • 110V Rated Load: Max. 800W(incandescent lamp)
  • Max. 200W(LED, energy-saving lamp)

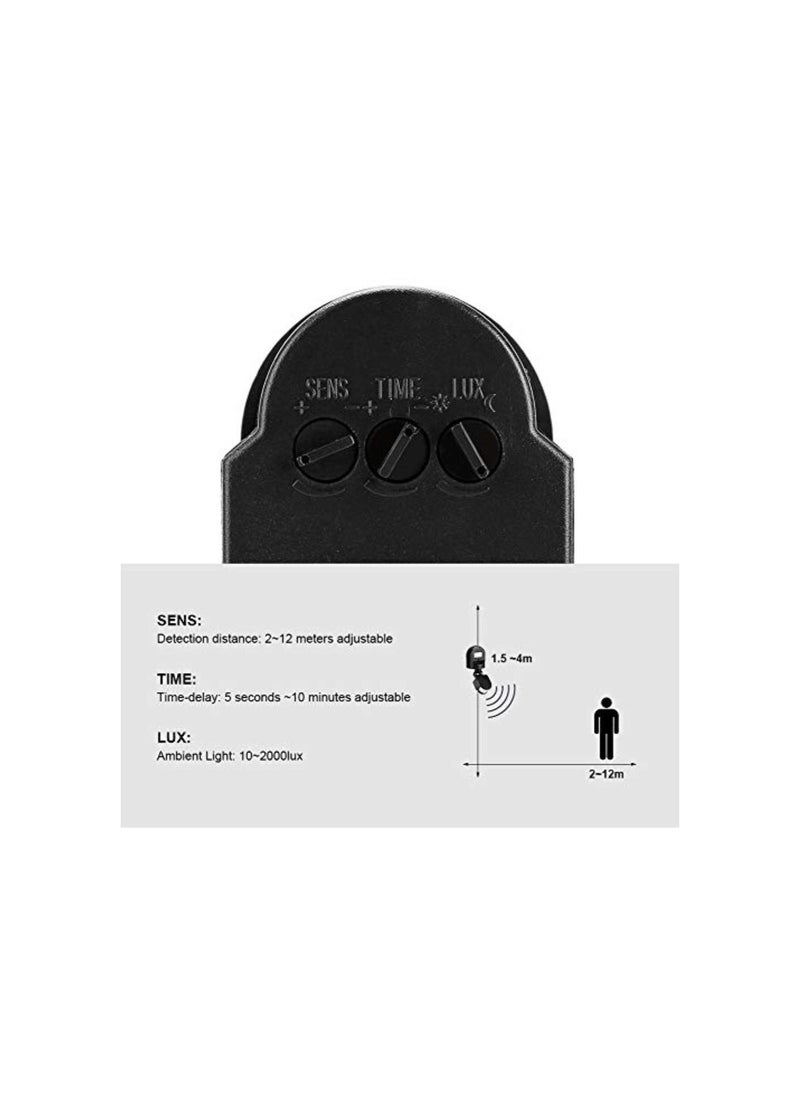

  • Detection Distance: 2~12 meters (adjustable)
  • Detection Angle: ≤160°
  • Time-delay: 5sec~10min(adjustable)
  • Ambient Light: adjustable 10~2000 lux
  • Protective Level: IP 65
  • Recommended Installation Height: 1.5~4m

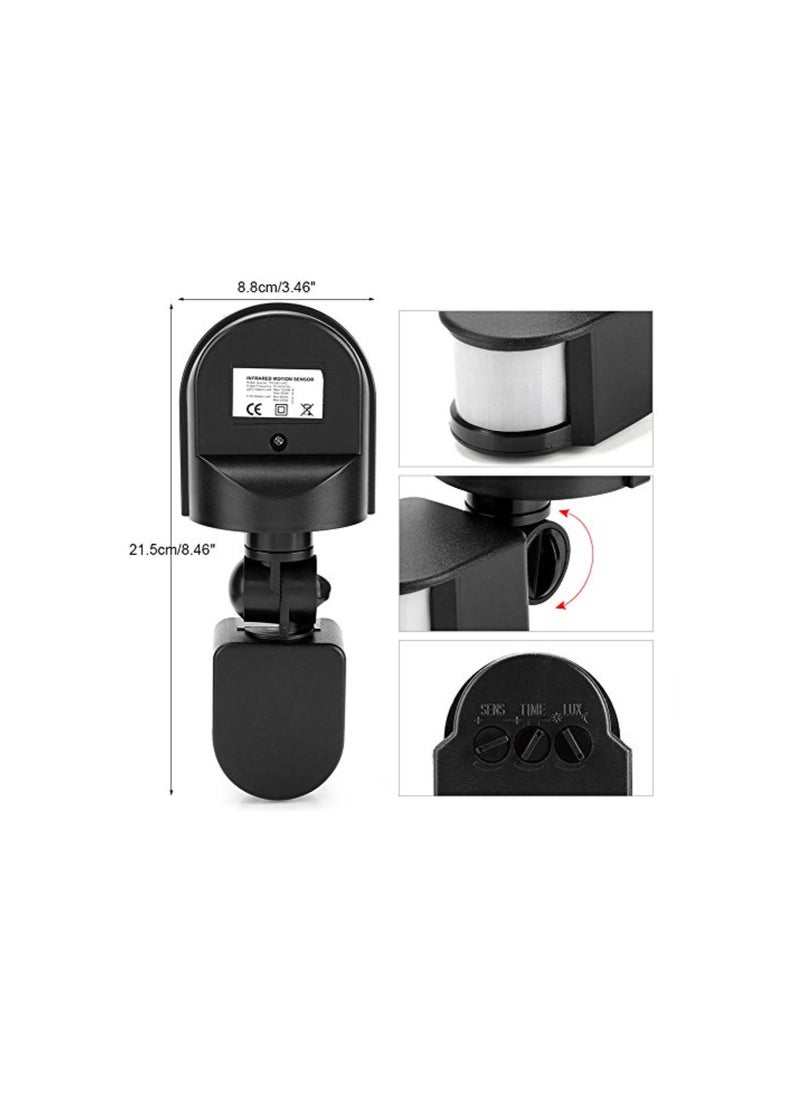

  • Size: approx.21.5 x 8.8 x 5cm / 8.46 x 3.46 x 1.97in
  • Weight: approx. 226g

Package Included:

1 x Infrared Motion Sensor Switch

1 Pack Installation Screws(Connection wires not included)

Wire Connection Instruction:

Brown Wire: Live Input

Red Wire: Live Output

Blue Wire: Common Neutral

Note:

1. Recommended that the product is installed by professional electrician.

2. The detection angle of this product is 160°. Please confirm your purchase requirements before ordering.

Highlights

  • 【High Quality】: The adjustable PIR sensor head has an exquisite design, high sensitivity and stable performance. Waterproof and weatherproof, also suitable for outdoor use.
  • 【Motion Sensor】: The sensor switch adopts infrared human body motion sensor technology, which can realize intelligent control and energy saving. The detection distance, ambient light and delay time can be adjusted according to your actual needs.
  • 【Wide Application】: Ceiling or wall-mounted installation, suitable for corridors, corridors, garages, terraces, toilets, etc., widely used to control LED lights, compact fluorescent lights, incandescent bulbs, alarms, exhaust fans, etc.
  • 【Long Service Life】: The infrared motion sensor is made of high-quality plastic, which is not easy to age, strong and durable, and can be used for a long time.
  • 【Easy to Install】:The LED infrared sensor head is automatic, convenient, safe and practical. If you have any quality problems, please contact our after-sales customer service.
