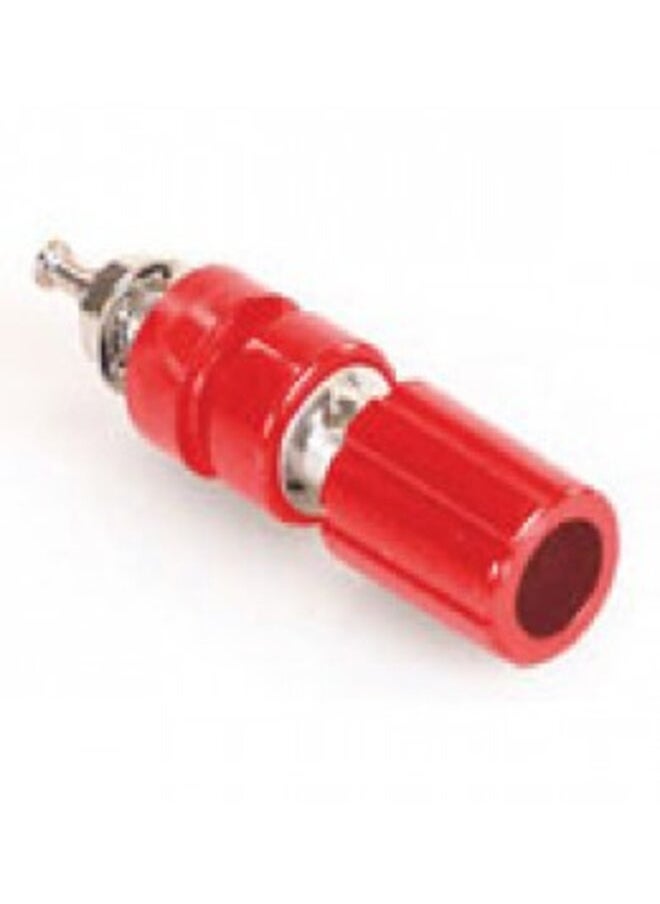

Pomona 3760-2 Binding Post, Tin Plt. (Red)

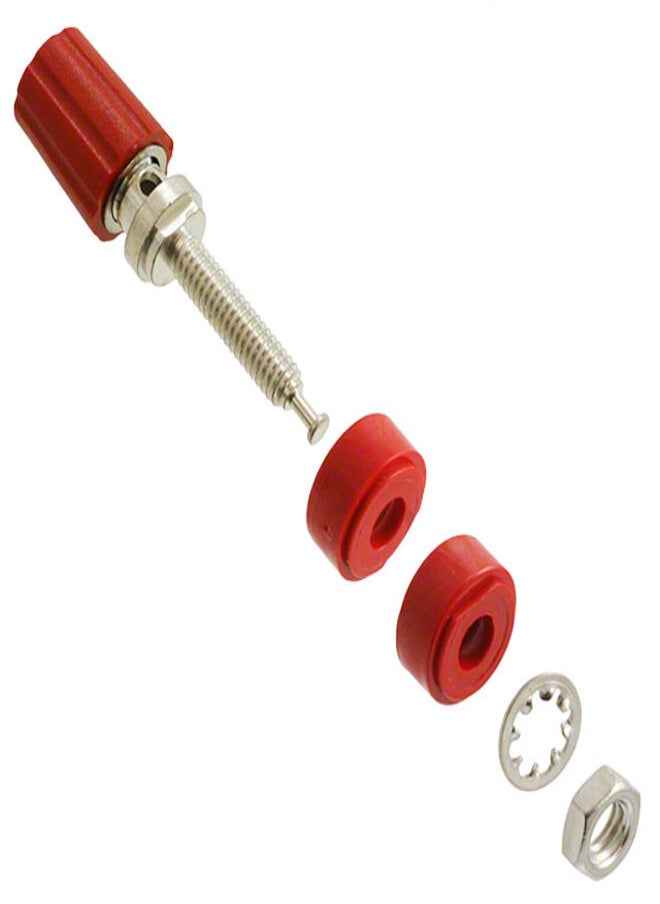

OverviewFeatures: Mounts in panels from 1.57mm (.062") to 6.35mm (.250") thick. Crosshole is perpendicular with flat on mounting base. Materials: Insulated Captive Thumb Nut: Brass Insulation: Polycarbonate Mounting Base: Polycarbonate Insulator: Polycarbonate Lockwasher: Steel Hex Nut: Brass Binding Post Finish: Bright tin plated brass Family 3760 Number of Ports 1 Maximum Current Rating 15A Maximum Operating Temperature 115°C Mounting Panel Mount Product Depth 11.18mm Type Binding Post Product Length 45.21mm Product Type Connector Electronic Test Equipment Contact Material Brass
