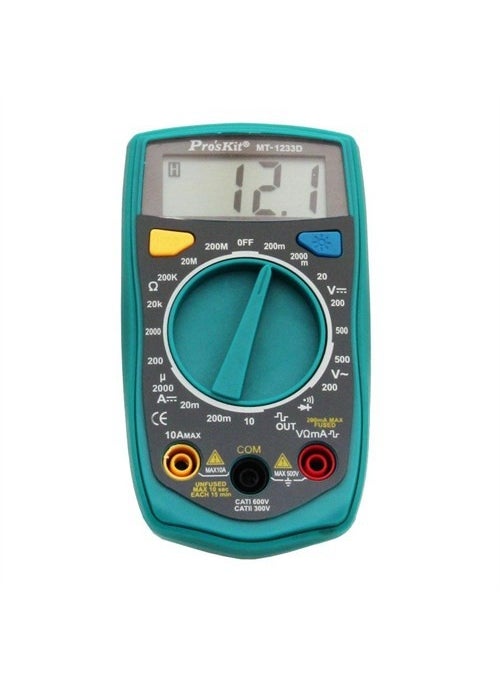

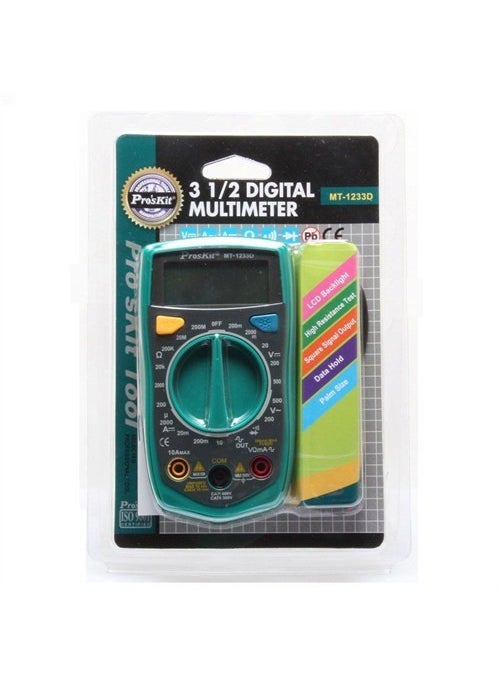

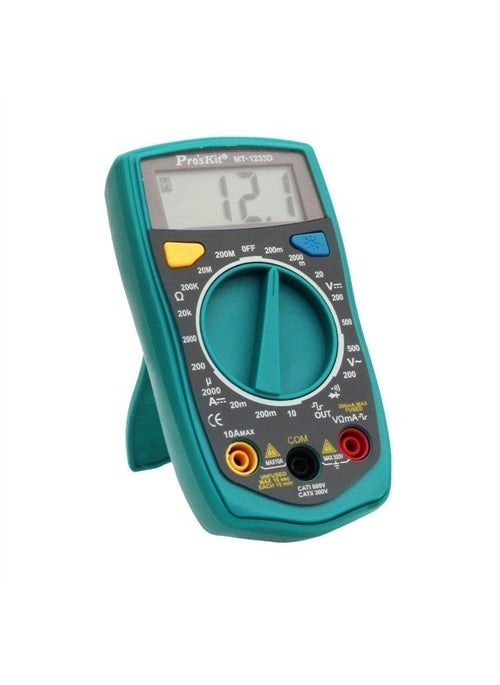

Proskit Mt-1233D Digital Multimeter

OverviewProskit Mt-1233D Digital Multimeter
Proskit Mt-1233 D
Digital Multimeter

Compatible with the New CE Safety Standard
3 1/2 Digit 1999 Censuses
Palm Size For Easy Storage And Transport
Extra Functions: Lighting, Data Hold, Low Battery Indicator, Overload Protection Indicator
User-Friendly Interface Is Ideal For Students, DIY Market. Home Applications And More


Technicial Specifications
Dcv 200M/2000M/20/200V ± (0.8% +3 D), 500V ± (1.0% +3 D)
Zma 200/500V ± (1.2% +5 D)
Dca 2000U/20M/200Ma ± (1.2% +5 D), 10A ± (2.5% +5 D)
Resistance 200? ± (1.5% +5 D), 2000/20K/200K? ± (1.0% +3D)
20M? ±(1.0% +5D), 200M? ± (1.0% (Rdg-L0) +10 D)
Square Signal Output 50Hz (5 Vp-P, 50K?)
Continuity Y Diode Test Y with Pager
Power Supply 1.5V Aaa X 2 (Not Included)
En61010-1 Ce / Cat I 600V, 300V Cat I
Size 130 X 72 X 28Mm

Proskit MT-1233D is a practical digital multimeter with an easy-to-read LCD display, consistent performance and high reliability.
It has DC and AC Voltage, AC current, resistance, square signal output, Diode and continuity measurement functions.
With its basic features such as high measurement sensitivity and easy reading with its illuminated LCD screen, it is an ideal device for students, home use, basic maintenance and repair work.

GENERAL FEATURES:
Maximum voltage between terminal and ground: 1000V
Measurement time: update every 2-3/sec
Measurement out of range warning: "1" appears.
Automatic negative polarity detection
Operating Temperature: 0℃～40℃, (Relative Humidity: 0-75%)
Storage Temperature: -10℃～50℃, (Relative Humidity: 0-75%)
Power: 1.5V battery AAAx2
Dimensions: 130(l)*72(w)*28(h) mm
Approximate Weight: 130g (excluding battery)
