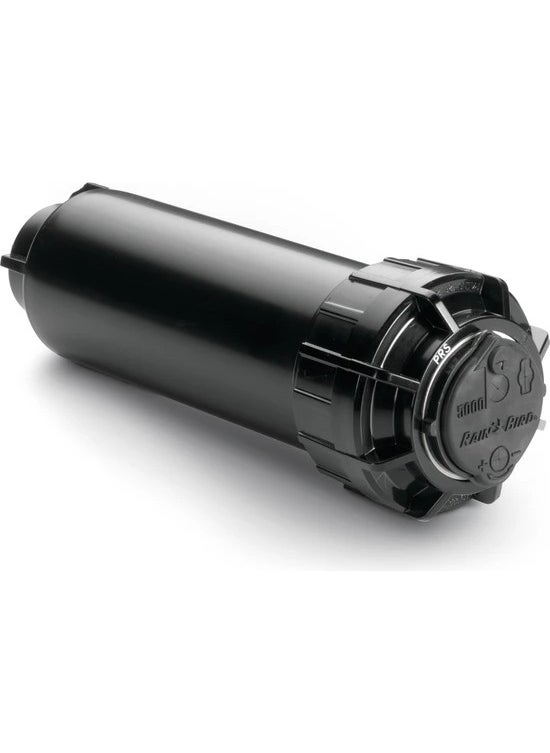

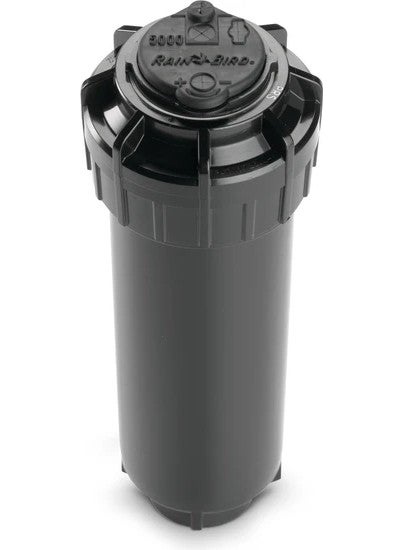

Rainbird 5004 Rotor Spring

Rain Curtain™ Technology

• Rain Curtain™ standard on all 5000/5000 PLUS rotors
  - Large wind-resistant water droplets
  - Effective close-range irrigation
  - Even distribution of water throughout the entire shooting distance

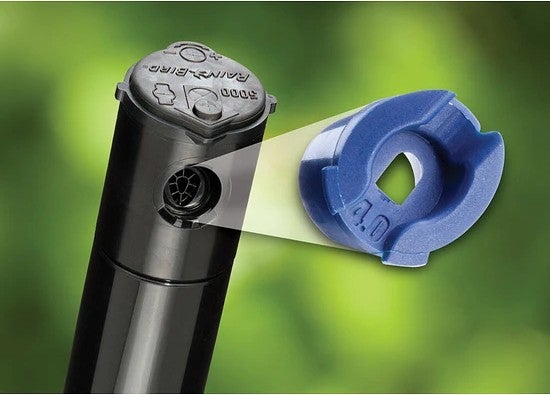

• The nozzle tree, which includes 4 low-angle nozzles and 8 standard rain curtain (Rain CurtainTM) nozzles (Uniform+), provides a throw of 7.6 to 15.2 meters
• Self-adjusting nozzle

Application & Care

• Easy starting point adjustment thanks to the Slip Clutch mechanism
• Quick maintenance opportunity with new self-cleaning angle adjustment screw
• Mechanism that prevents water from escaping during operation thanks to the flow stop feature in 5000 Plus
• Easy angle adjustment with any flat head screwdriver
• The flow adjustment screw reduces the throw distance by up to 25% without changing the nozzle.

Design Solutions

• Optional in 5000 Plus series:
  - Stainless steel guard on SS models
  - Seal-A-MaticTM non-return valve kit (SAM) remains closed for elevation differences of up to 2.1 meters
• 5004 Plus is available in 10cm, 15cm, 30cm and SS (stainless steel body)
• Original 10cm, 15cm, and 30cm Pop-Up height (measured from body to middle of nozzle)
• Full rotation and full rotation with angular and backward rotation between 40° - 360° (a model capable of full angle rotation is also available)
• Thanks to MPR nozzles, it provides a balanced rainfall rate between 7.6 m - 10.7 m in design and application.
• It simplifies the design process. Variable angle and different diameter nozzles can be used in the same irrigation area using MPR Nozzles

Durability

• Standard rubber cap for extra protection. 5000 PLUS has green head, 5000 Enhanced has black head.
• Extra durability in residential and municipal applications thanks to the body designed for harsh conditions
• Retracting spring resistant to harsh conditions
• The pressure regulating multifunctional wiper seal protects the interior from contamination and ensures safe pop-up inlet and outlet
• Added O-rings and seals provide extra protection in sandy waters
• 5 YEAR commercial warranty
