Raspberry Pi Camera Module 3 Wide Angle

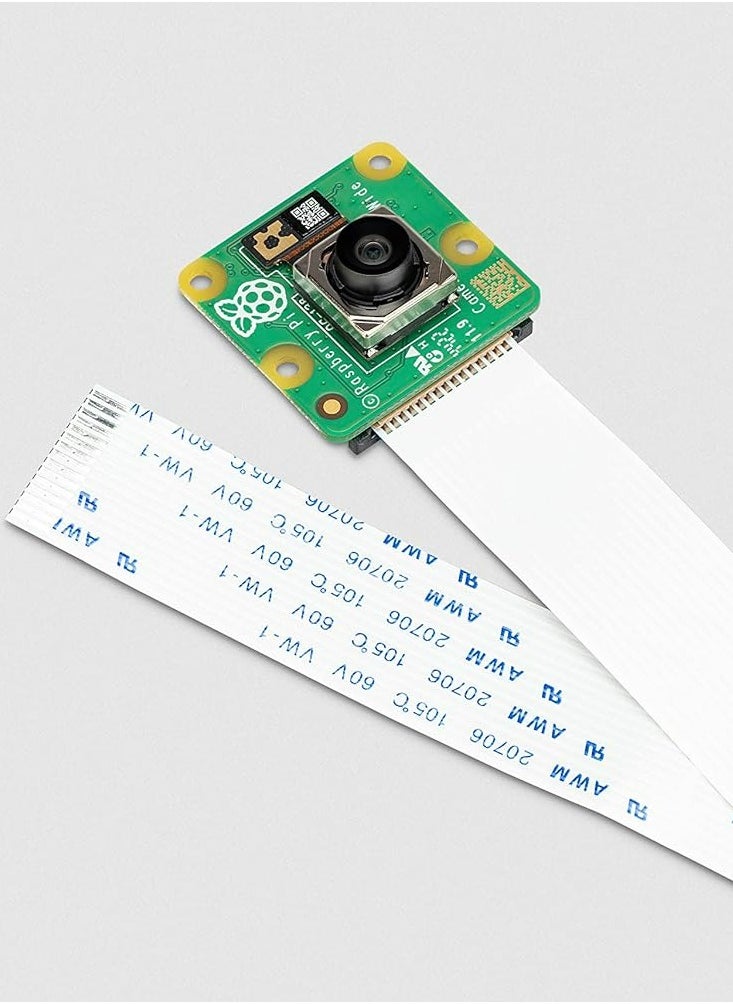

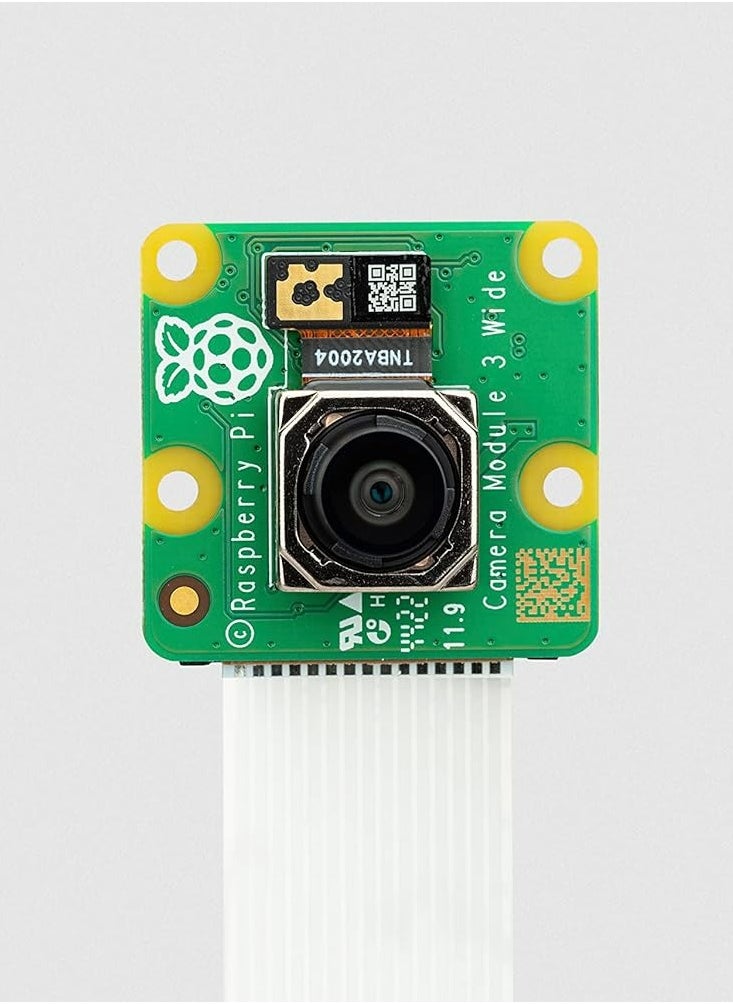

OverviewRaspberry Pi Camera Module 3 is a compact camera from Raspberry Pi. It offers an IMX708 12-megapixel sensor with HDR, and features phase detection autofocus. Camera Module 3 is available in standard and wide-angle variants, both of which are available with or without an infrared cut filter. Need a wider field of view than the standard 75 degrees? Camera Module 3 Wide features an ultra-wide 120 degree angle of view, meaning your Raspberry Pi can see more of the world. No additional lens is required to use this camera, it is ready-to-go as-is! Camera Module 3 can be used to take full HD video as well as still photographs and features an HDR mode up to 3 megapixels. Its operation is fully supported by the libcamera library, including Camera Module 3’s rapid autofocus feature: this makes it easy for beginners to use, while offering plenty for advanced users. Camera Module 3 is compatible with all Raspberry Pi computers. The PCB size and mounting holes remain the same as for Camera Module 2. The Z dimension differs: due to the improved optics, Camera Module 3 is several millimeters taller than Camera Module 2. COMMON FEATURES Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708) High signal-to-noise ratio (SNR) Built-in 2D Dynamic Defect Pixel Correction (DPC) Phase Detection Autofocus (PDAF) for rapid autofocus QBC Re-mosaic function HDR mode (up to 3 megapixel output) CSI-2 serial data output 2-wire serial communication (supports I2C fast mode and fast-mode plus) 2-wire serial control of focus mechanism CAMERA MODULE 3 WIDE SPECIFICATIONS Focus range: 5cm–∞ Focal length: 2.75mm Diagonal field of view: 120 degrees Horizontal field of view: 102 degrees Vertical field of view: 67 degrees Focal ratio (F-stop): F2.2 Infrared-sensitive: No
