Highlights- Tack Flux Rosin Mildly Activated (RMA)
- Used for touch up and rework,
- attachment of BGA spheres, and soldering flip chip components.
- Low viscosity synthetic RoHS 3 and REACH compliant.
OverviewSpecifications:
Flux Type: Synthetic RMA (for Lead-Free applications)
Flux Classification: ROM1 (Must be cleaned off post-use using
Flux Remover or IPA)
Flux Activation Temperature: 140°C (284°F)
Color: Light yellow to orange/brown
Packaging: 10cc/10g Syringe
Shelf Life: Refrigerated >24 months, Unrefrigerated >24 months
Description:

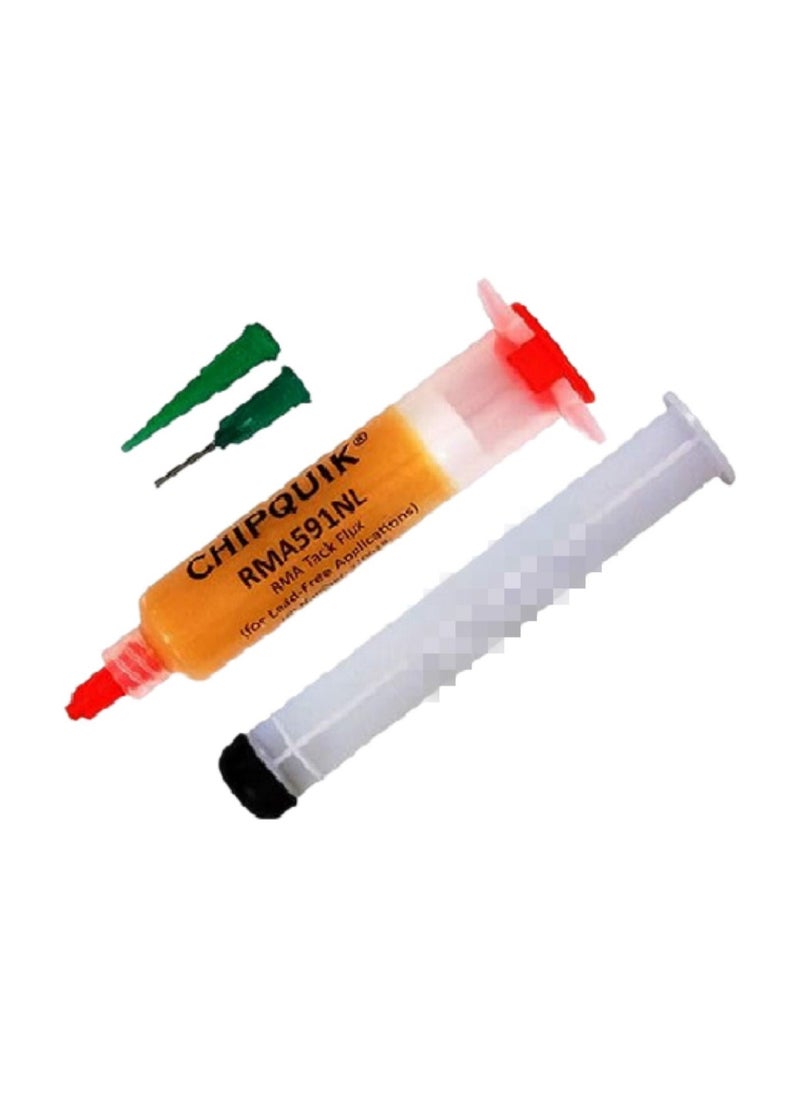

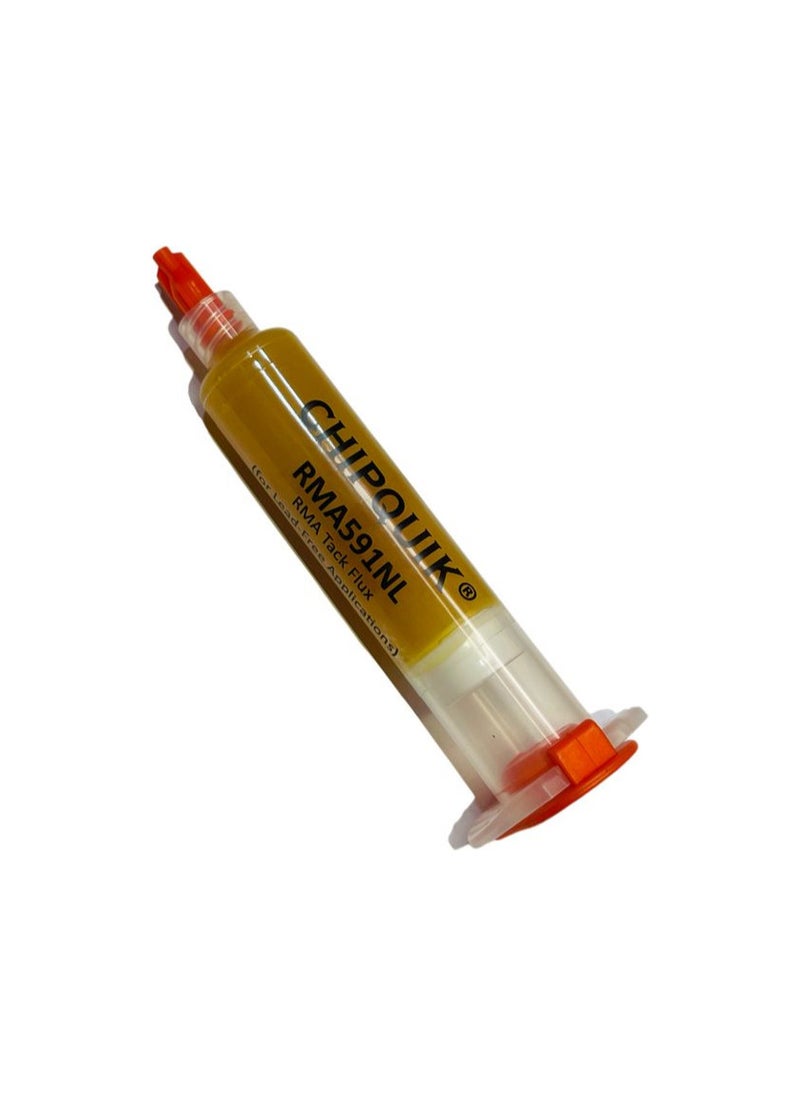

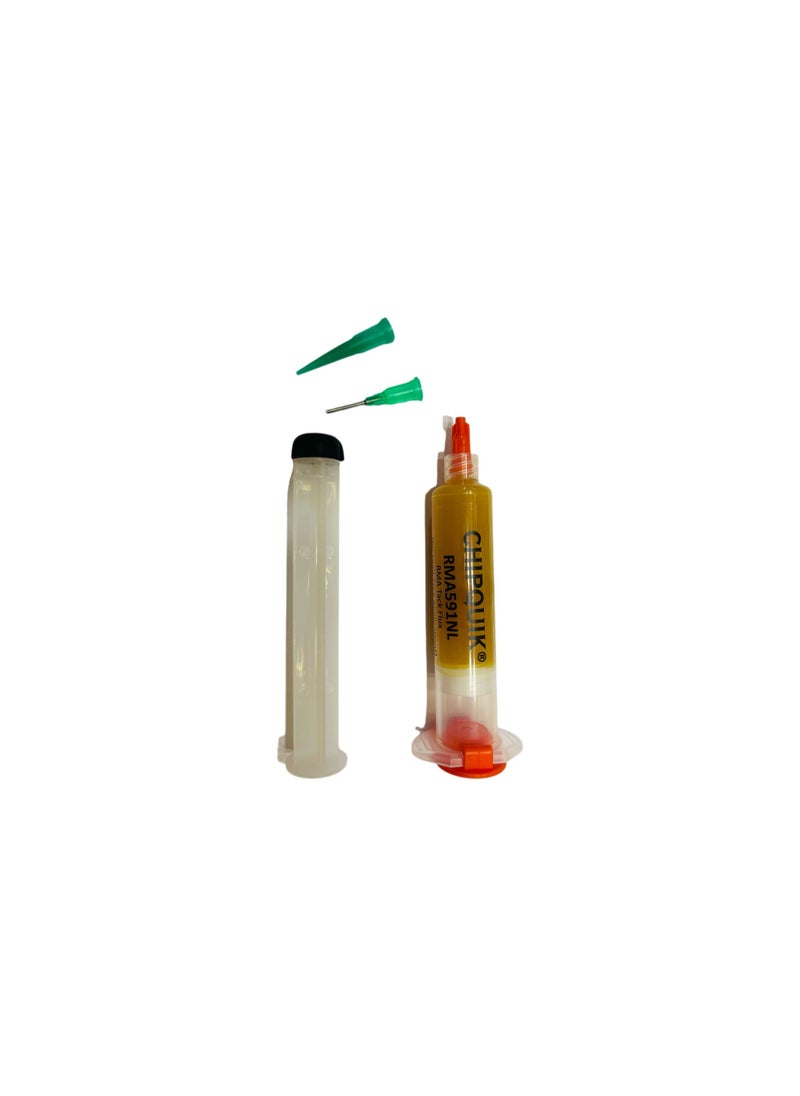

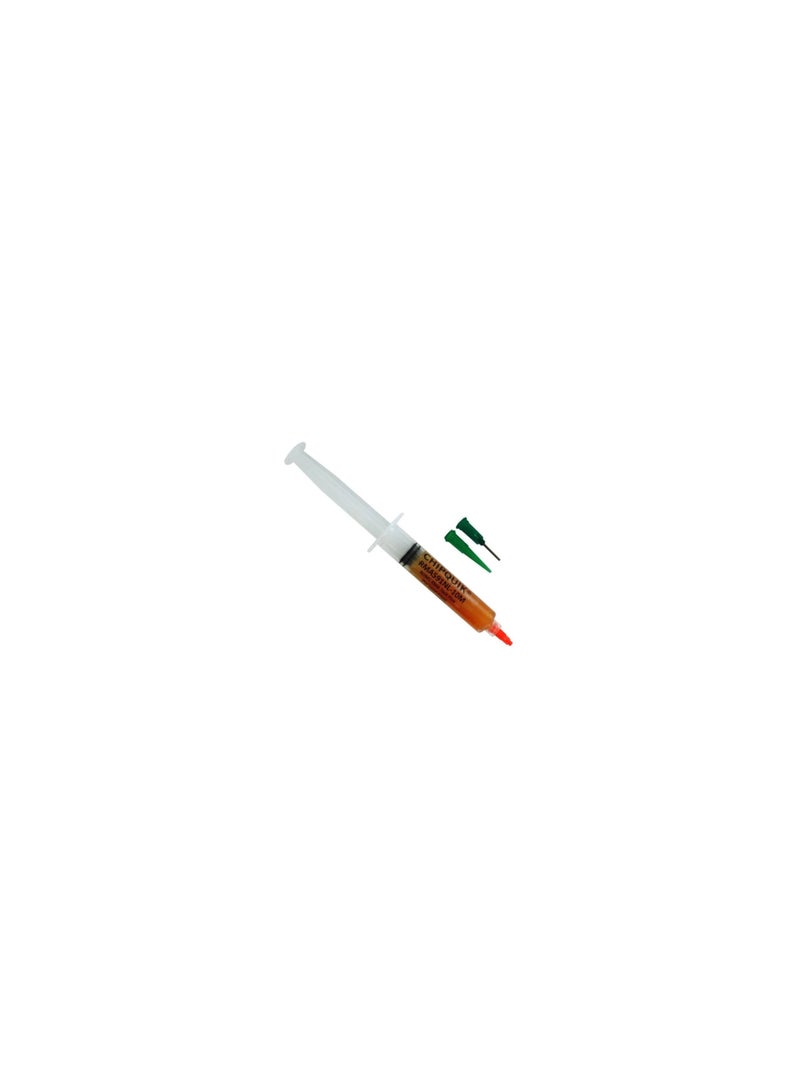

Tack Flux Rosin Mildly Activated (RMA) in a 10cc syringe w/plunger & tip. Used for touch up and rework, attachment of BGA spheres, soldering flip chip components. Low viscosity RMA synthetic paste flux.
Specifications:
Flux Type: Synthetic RMA (for Lead-Free applications)
Flux Classification: ROM1 (Must be cleaned off post-use using Flux Remover or IPA)
Flux Color: Light yellow to orange/brown
Packaging: 10cc/10g Syringe
Shelf Life:
Refrigerated >24 months, unrefrigerated >24 months
Stencil Life:
>8 hours @ 20-50% RH 22-28C (72-82F)
>4 hours @ 50-70% RH 22-28C (72-82F)
