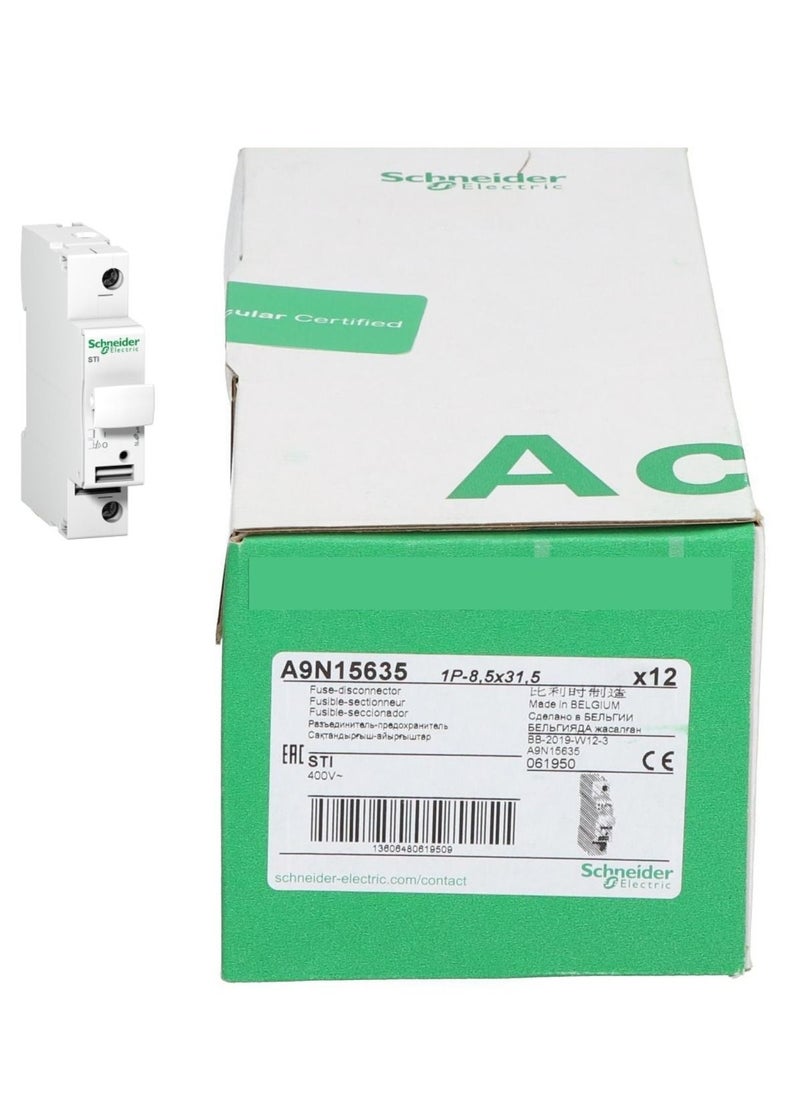

Schneider Electric Fused Switch Disconnector 1 Pole 10A Max Current Fuse Current
Sorry! This product is not available.
Product Overview
Highlights

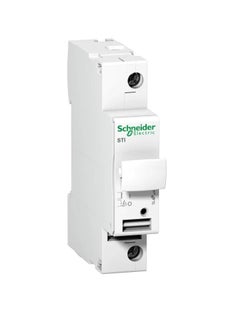

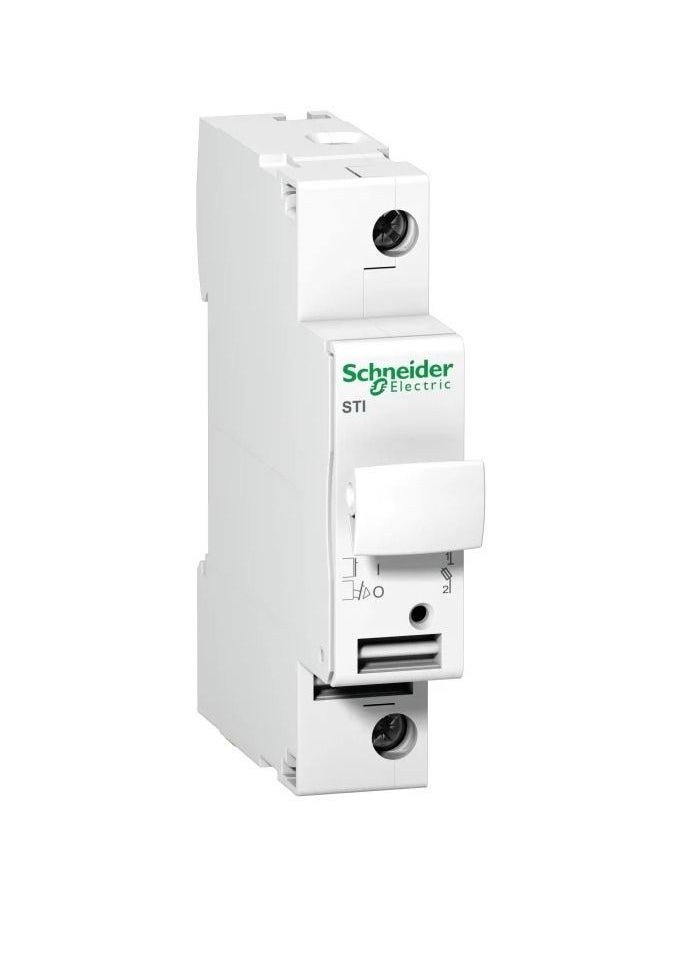

This Acti9 STI isolatable fuse-carriers is a low voltage fuse-disconnector. It is used for tertiary and industrial applications requiring a high breaking capacity.
It has 1P pole, up to 10A rated current, and gG or aM fuse curve with a fuse cartridge type of 8.5mm x 31.5mm. it can be mounted on DIN rail for modular installation.
The general purpose fuse (gG fuse) provides overload and short-circuit protection. The aM fuse for motor application provides short-circuit protection (protection of loads with a high peak current).
It has an IP20 degree of protection on its terminals, becoming IP40 once in modular enclosure. A clip-on marker is visible on front face or on downstream terminal to identify fuse presence.
An optional 230V neon indicator light indicates fuse blowing (off in normal operation and lit red after fuse blowing).
The device is provided with a captive fuse-carrier and an additional housing for a spare fuse. Its toggle can also be padlocked.

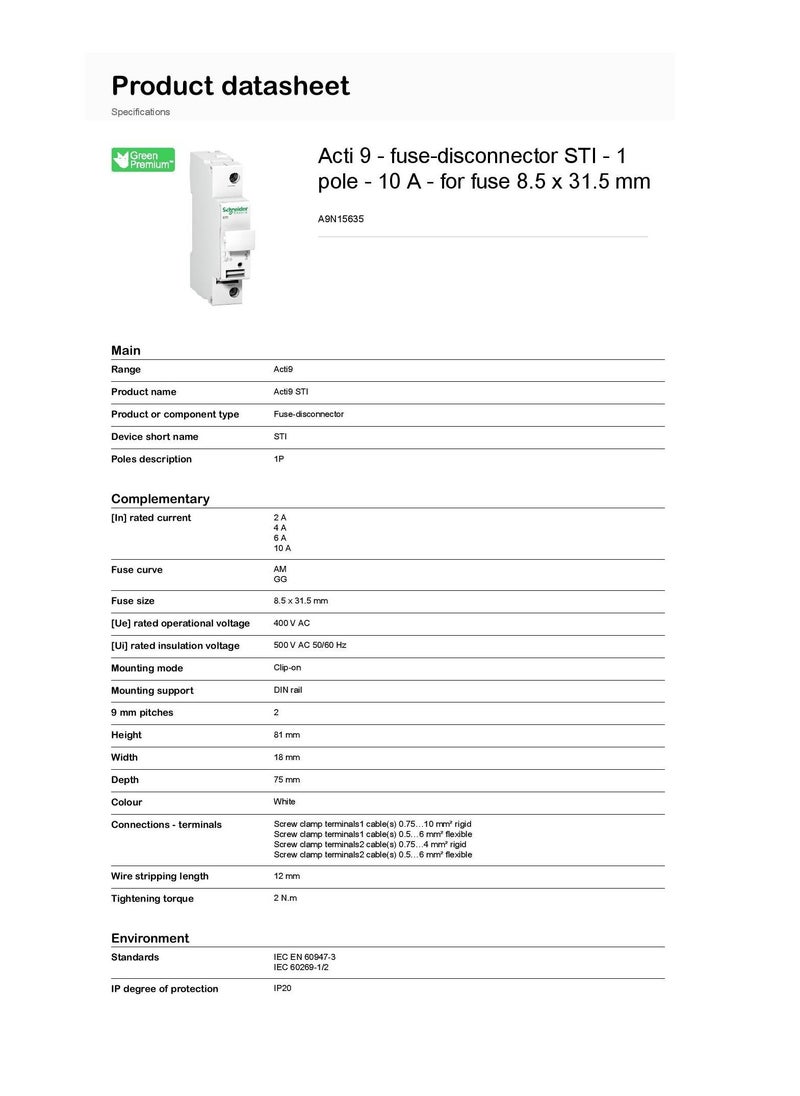

Specifications
Model Number
A9N15635
Model Name
A9N15635
