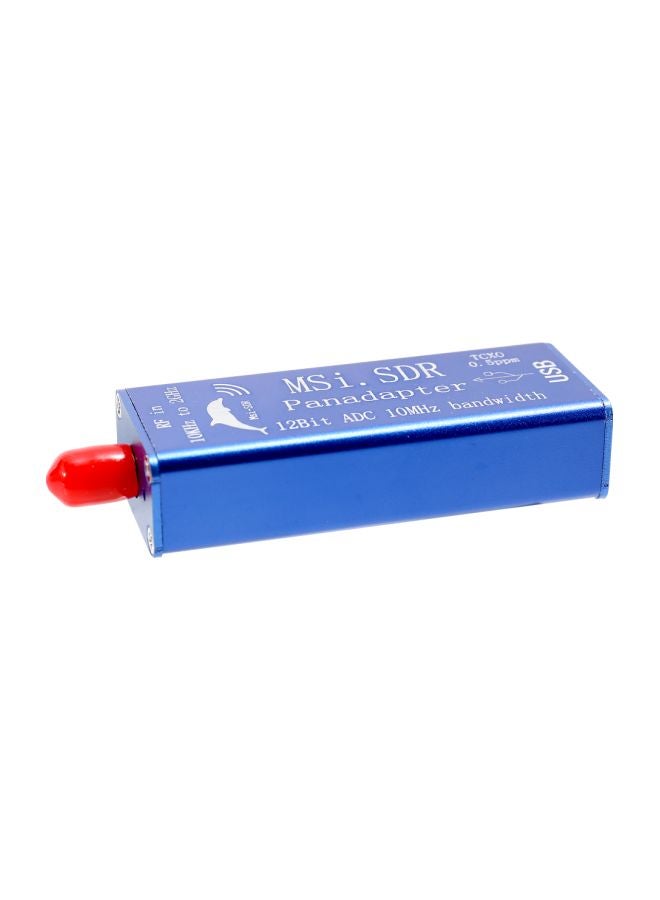

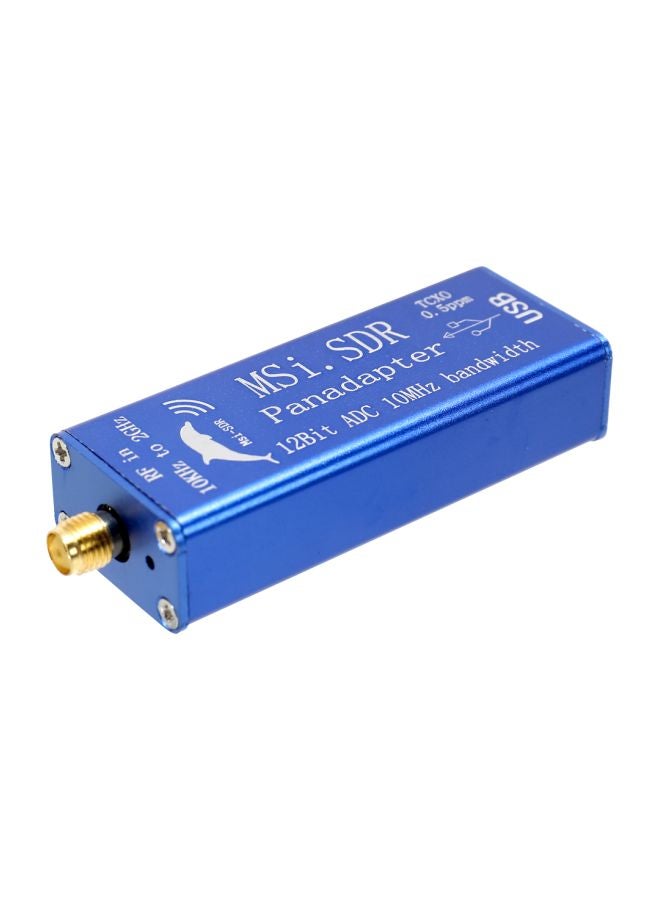

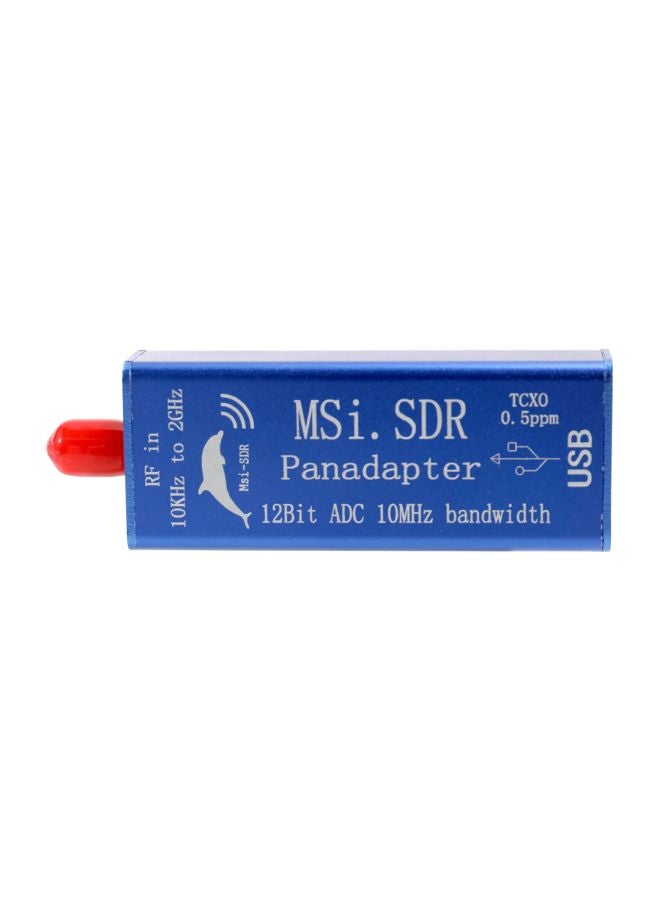

Software Radio Panadapter Module Multicolor

OverviewThe main function of this Panadapter is to convert the intermediate frequency signals of various types of radio stations into USB bus and plug them into the USB port of the PC, and then process them through HDSDR software.Features:Exquisite and sturdy aluminum casing.Frequency continuous coverage from 10KHz to 2GHz.12-bit ADC chip (not the kind of RTL chip).Built-in TCXO 0.5ppm.Built-in front end filter.Spectrum bandwidth of up to 10MHz.Higher sensitivity and fine selectivity.More often low background noise.Simple USB interface (micro jack).SMA antenna connector.Powers over the USB cable.Compatible with all SDRPlay RSP1 software.Multiplatform support, perfect for portable operation.No need for an up-converter.Covers all amateur bands from experimental LF through HF, VHF and UHF.Simultaneous entire amateur band monitoring possible.Works with all the popular SDR software (including HDSDR, SDR Console, Cubic SDR & SDRuno).Compatible with existing open source radio software.ExtIO based plugin available.Specifications:Main material: aluminumType: 1, 2 (optional)Low current: 120–175mAConnectivity:Single 50Ω RF connector (SMA)USB 2.0 (high speed) type micro socketFrequency range:Continuous coverage 10KHz–2GHzFrequency tolerance: 0.5ppm (max)MSI.SDR panadapter size: 70 * 25mm / 2.8 * 1.0inPackage size:Type 1: 120 * 55 * 18mm / 4.7 * 2.2 * 0.7inType 2: 170 * 150 * 15mm / 6.7 * 5.9 * 0.6inPackage weight:Type 1: 31g / 1.1ounceType 2: 112g / 4.0ouncePackage list: (optional)Type 1:1 * MSI.SDR PanadapterType 2:1 * MSI.SDR Panadapter1 * Micro USB Cable1 * Cable with SMA Connector1 * Double SMA Coaxial Cable Jumper2 * Magnetic Ring
