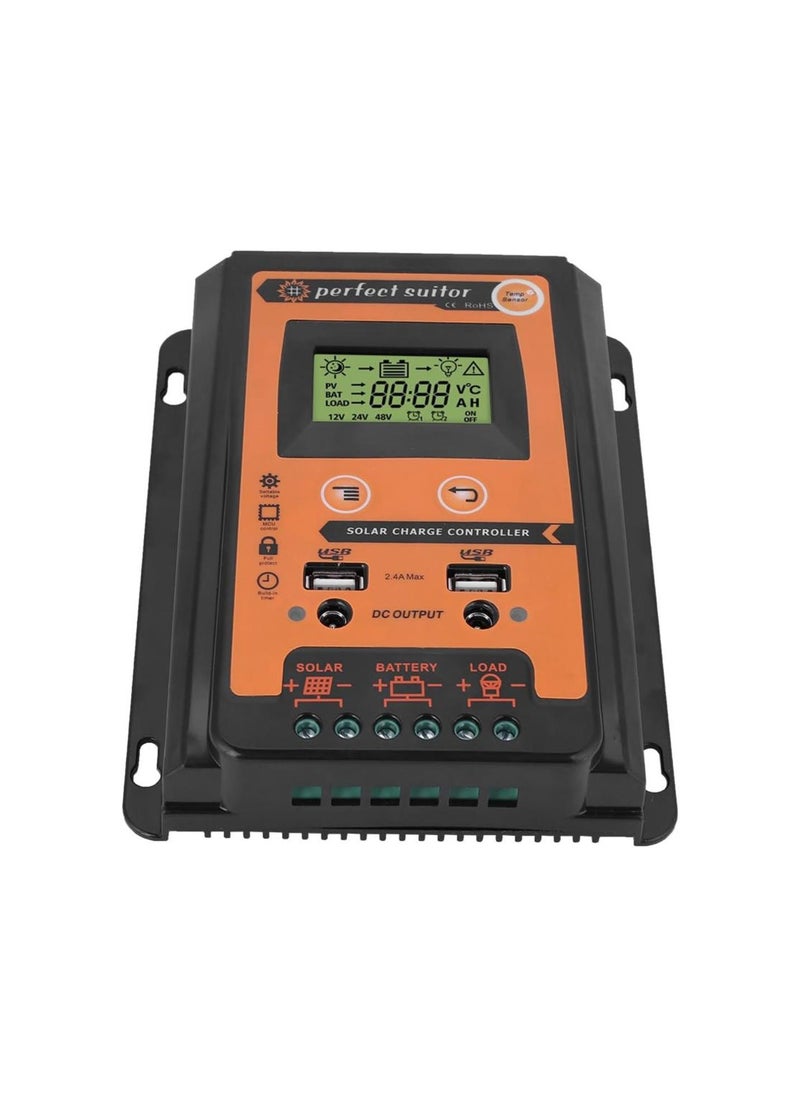

Solar Charge Controller MPPT, Premium 12V/24V 30A 50A MPPT Solar Charge Controller Solar Panel Battery Regulator Dual USB LCD Display (30A)

Sorry! This product is not available.
Product Overview
Highlights
  • ★Automatic identification-------- The solar controller MPPT adopts the automatic identification system voltage, 12/24V. Can use 12-24V voltage, can be automatically identified, very convenient and practical
  • ★LCD display-------- Humanized LCD display and two-key operation of man-machine interface. The LCD screen display can show the voltage value more intuitively, and the solar controller is clear at a glance
  • ★Practicality-------- Reliable overvoltage protection, short circuit protection, overload protection, overcharge protection, and overdischarge protection. The solar panel voltage stabilizer ensures the stability of the equipment during use, and can also protect the safety performance of the circuit
  • ★High-quality materials--------The solar panel charger has precise temperature compensation, automatically corrects the charge and discharge voltage, and prolongs the battery life. Made of high-quality materials, easy to maintain and reduce replacement costs
  • ★Powerful charging function--------The positive poles of solar panels, batteries, and solar controller are all connected together, and the series control circuit adopts negative MOSFET. Wide range of applications
Overview

Specifications:
Current: 30A, 50A (optional)
Rated Voltage: 12/24V
USB Output: 2.4A *2
Over Charge Current(V): 13.7V/*2 24V
Over Discharge Current(V): 10.5-11V/*2 24V
Temperature Compensation: -3mv/℃/cell
Empty Load Wastage: <45mA
Loop Voltage Drop: <200mv
Display: LCD Display
Charging Type: MPPT
Waterproof Grade: IP32
Material: Plastic
Color: Black + Orange
Size: 17.5 * 14 * 4cm/6.9 * 5.5 * 1.6in(30A), 21 * 19.2 * 5.5cm/8.3 * 7.6 * 2.2in(5A)
Package Weight: 480g-868g

Package List:
1 * Solar Charge Controller
1 * User Manual

Notes:
1. The function of controller is to protect voltage overshoot and overplay.
2. When the battery voltage is too low, the controller stops the output; after the solar panel is charged, the cell recovers to 12.6V.
3. 12.6V is the recovery discharge voltage.
4. The normal voltage of the controller is 10.7V to 13.7V. These two voltage fluctuations can be set manually.

If you have trouble in use, try adjusting the float voltage to 13.7V:
First, you need to press the MCU control button for about 3-4 seconds, and then there will be a management interface on the screen.
Second, you must press the add button on the screen until the voltage reaches 13.7V.
Finally, you need to press the MCU control button again, which will save the controller record data when the display does not flicker.
