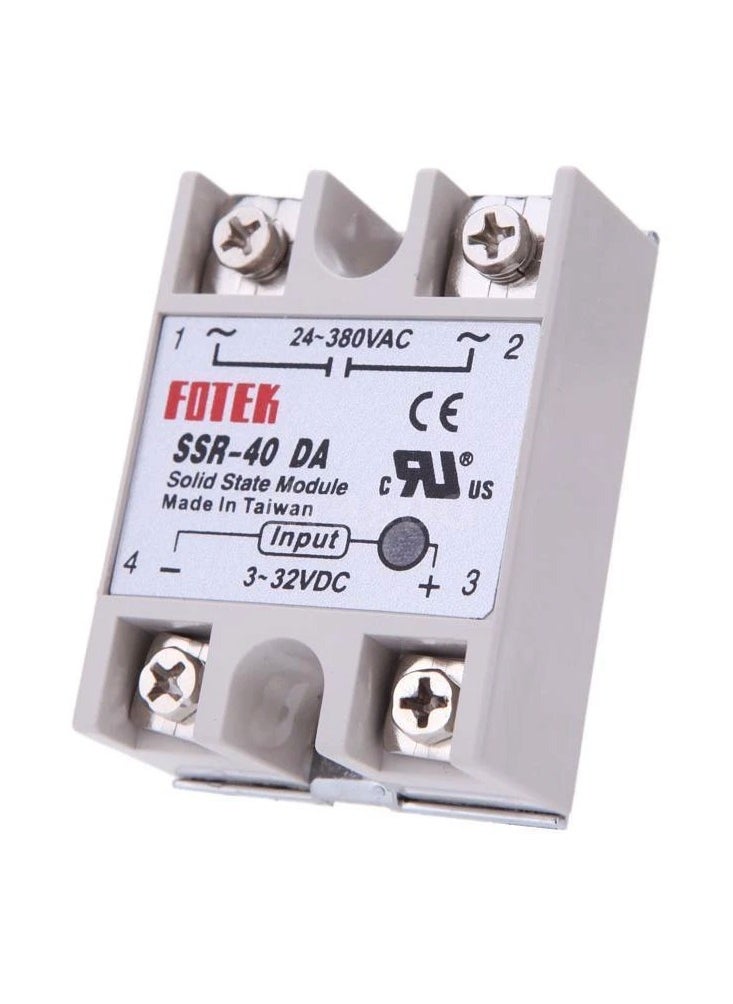

SSR-40 DA SSR Solid State Relay Single Phase Semi-Conductor Relay Output 24-380VAC

Feature
1. High reliability, high efficiency and long lifespan
2. No electric spark, no noise and no contact
3. Fine electro magnetic interference, high sensitivity and fast switching speed
4. Low drive voltage and current
5. Unique shape and novel structure
6. Especially suitable for corrosion, moisture, dust resistant and other harsh environments
7. Widely used in many automatic control systems

Scope of application
Industrial automation Stage light control medical instruments AC motor control Computer peripheral connection Automatic fire control and safety system Street lights, signal lights, traffic lights, etc.

Specification
DC Control DC
Model: SSR-25DC, SSR-40DC, SSR-100DC
Control mode:DC Control DC(DC-DC)
Input Voltage :3-32VDC
Output Load voltage: 5-60VDC
Output current: 25A, 40A, 100A
Control current:5-25Ma
On-state voltage: <=1.5V
One-off Time:<=10ms
Off leakage Current: <=2mA
Work instructions: LED
Fixing method: Bolted
Item size: 67.5*50.3*28mm

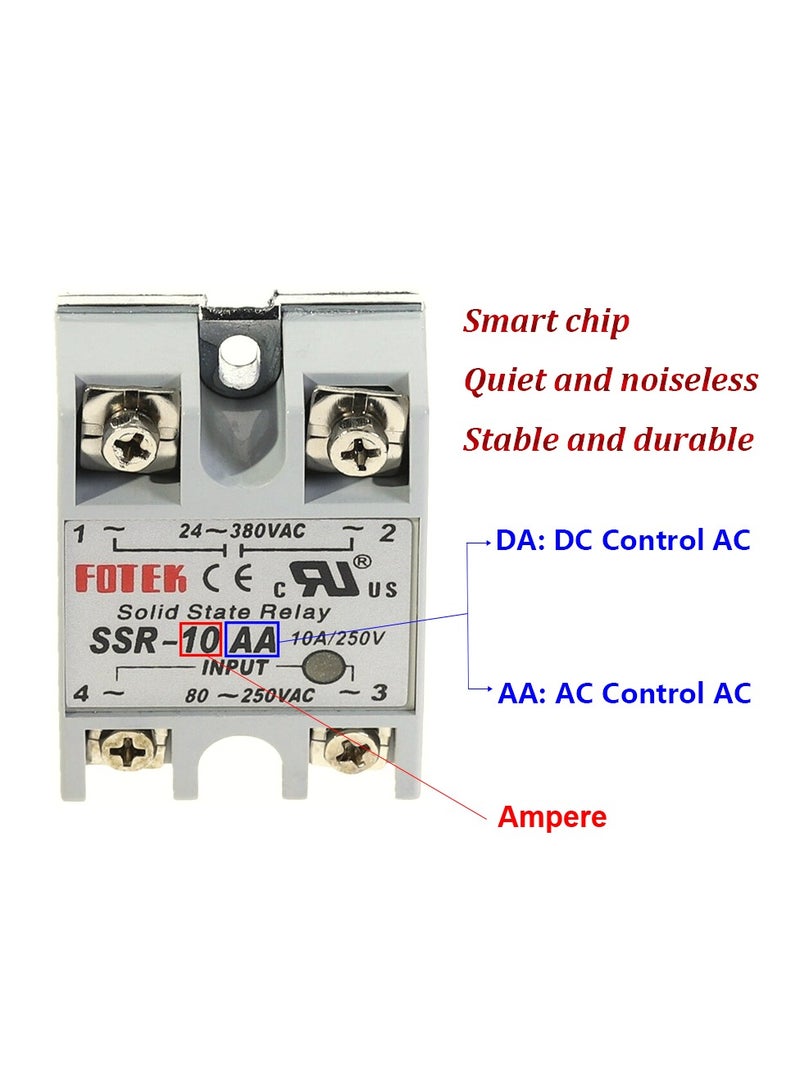

AC Control AC
Model: SSR-25AA, SSR-40AA, SSR-100AA
Control mode: AC Control AC(AC-AC)
Input voltage: 80~250VAC
Load voltage: 24-380VAC
Output current: 125A, 40A, 100A
Shutdown voltage: <=50VAC
Control current:12Ma
Insulation voltage: >= 2500VAC
On-state voltage: <=1.5V
One-off Time: <=10ms
Off Leakage Current: <=4mA
Work instructions: LED
Fixing method: Bolted
Item size: 67.5*50.3*28mm


Package Included
1pc x Solid State Relay
