Highlights- The standing wavemeter adopts aluminum alloy housing, with high hardness, high conductivity, wear resistance and nice durability.
- It is small and portable, built-in rechargeable battery does not require external power supplys.

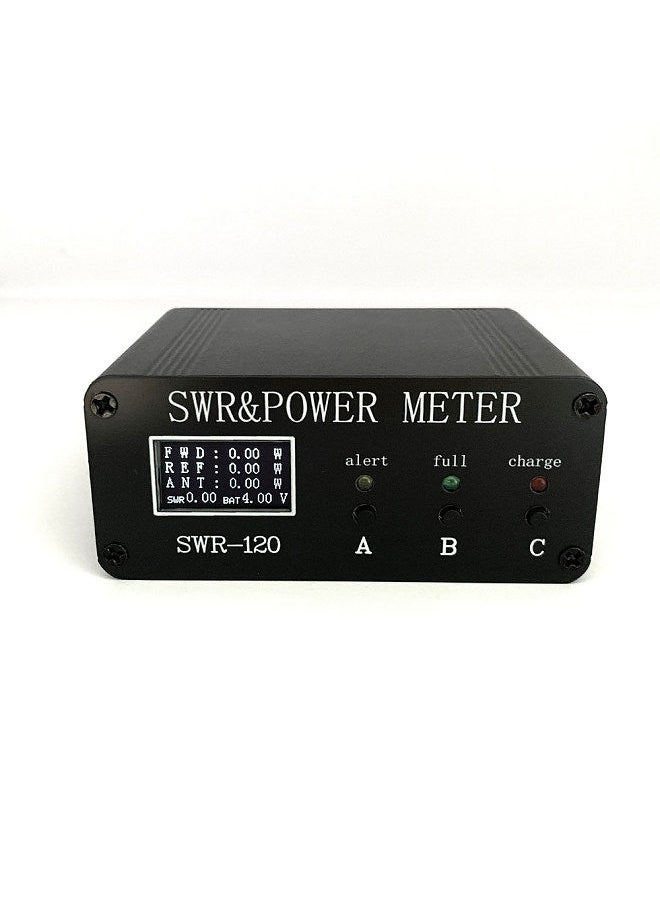

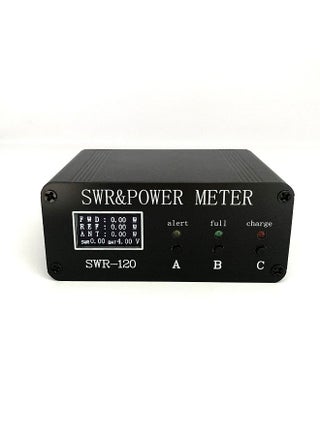

- Equipped with large OLED display, which can directly displays forward power, reflected power, antenna power, antenna efficiency, standing waves and battery voltage.
- The accuracy meets amateur needs, high standing waves, with the battery under voltage buzzer alarm function.

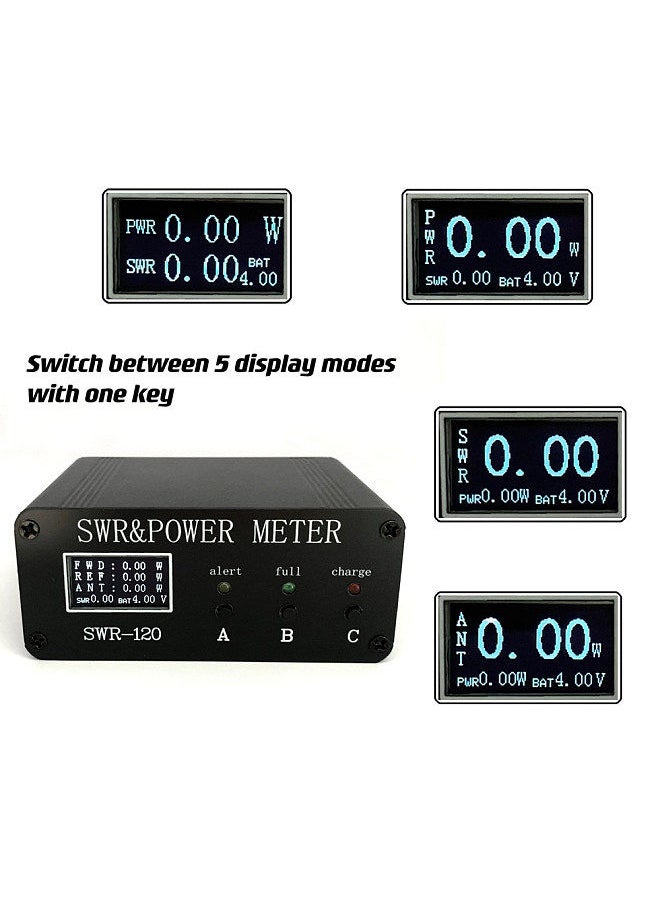

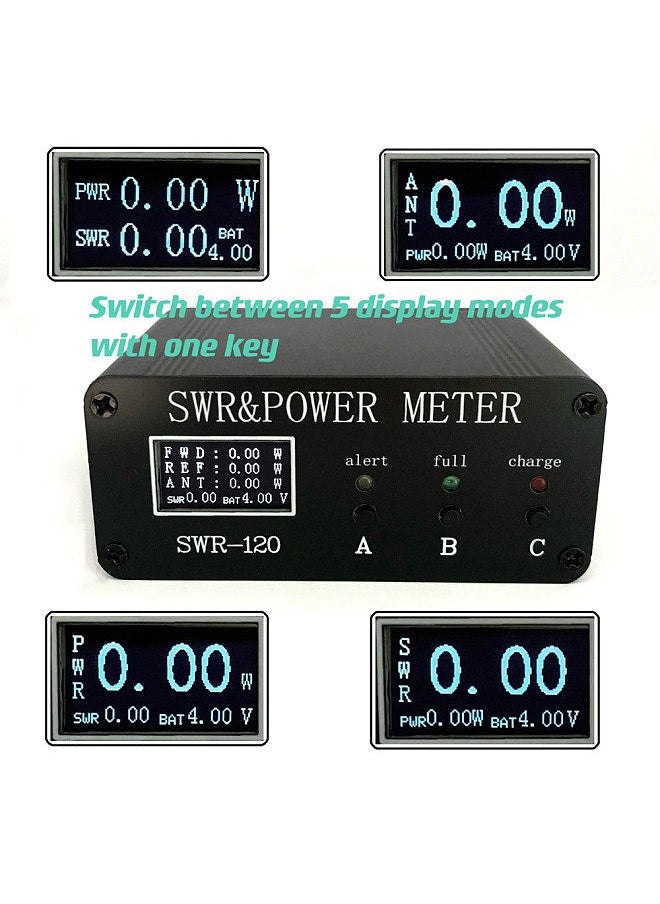

- With the buzzer on/off function, Chinese and English language switch function, and display mode switching function, 5 modes can be switched at will.
OverviewSpecifications:
Name: SWR Meter
Material: aluminum alloy + printed circuit board
Battery: 1 * 1000mAh lithium battery (included)
Frequency ranges: 1.8MHz-50MHz (in fact, there is a reference value to the V segment)
Power ranges: 0.5W-120W (up to 200W, Frequency Modulation, AM, CW mode is recommended for long-term testing below 120W, SSB mode is optional)
Measurement accuracy: ＜±5%
Standing-waves ranges: 1.0-99.99
Access interface: SO239
Charging interface: type-c
Item size: 63 * 89 * 38mm / 2.48 * 3.50 * 1.50in
Package size: 150 * 50 * 50mm / 5.91 * 1.97 * 1.97in
Package weight: 200g / 7.05ounce
