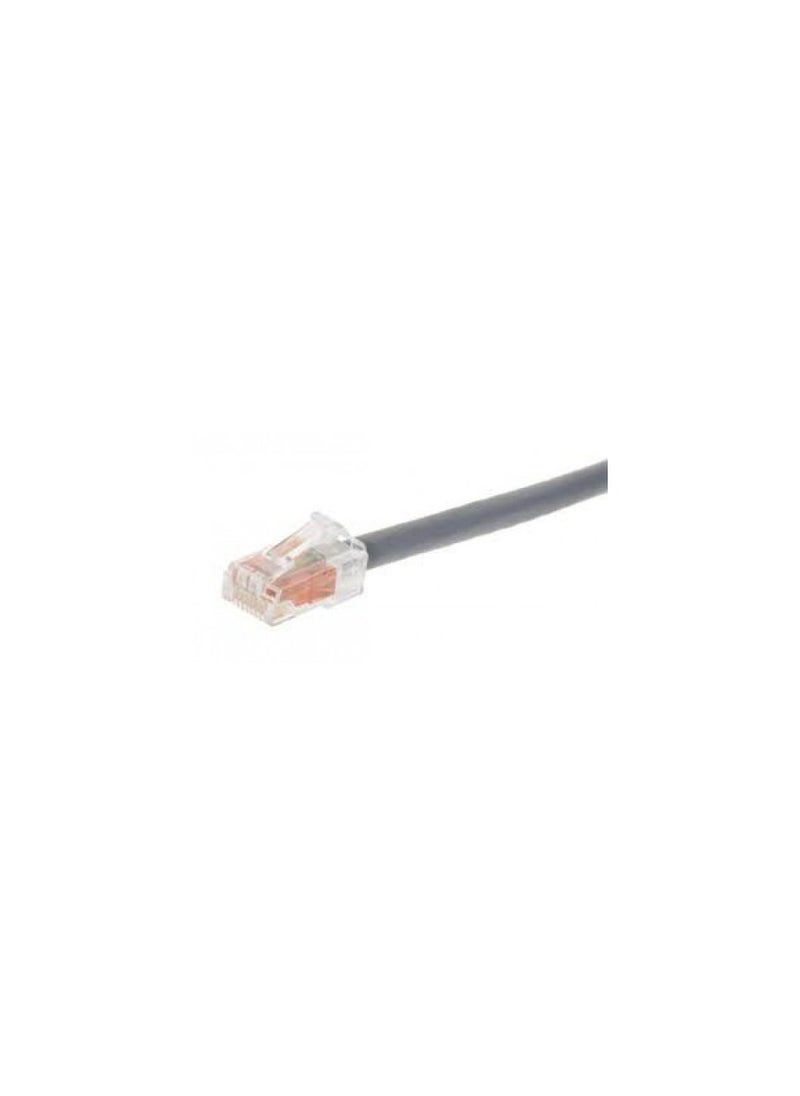

Systimax, Copper CAT6, UTP Patch Cord, GS8E-L-DG-5FT, 5 Ft, Gray LSZH CPC3392-03F005

OverviewProduct Classification Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America Portfolio SYSTIMAX® Product Type Twisted pair patch cord Product Brand GigaSPEED XL® Product Series CPC Ordering Note Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices General Specifications ANSI/TIA Category 6 Cable Type U/UTP (unshielded) Conductor Type Stranded Interface, Connector A RJ45 plug Interface Feature, connector A Standard Interface, Connector B RJ45 plug Interface Feature, connector B Standard Jacket Color Black | Blue | Dark gray | Light blue | Lilac | Orange | Red | Spring green | White | Yellow Pairs, quantity 4 Transmission Standards IEEE 802.3bt Type 4 Wiring T568B Dimensions Cable Assembly Length Range (m) 1 – 30 Cable Assembly Length Range (ft) 1 – 100 Cable Assembly Length Range (cm) 15 – 999 Cable Assembly Length Range (in) 6 – 999 Diameter Over Jacket 6.02 mm | 0.237 in Compatible Conductor Gauge, stranded 24 AWG | 24 AWG Wiring Diagram Click on image to enlarge. Electrical Specifications dc Resistance, maximum 0.3 ohm Safety Voltage Rating 300 V Material Specifications Contact Plating Material Precious metals Material Type Copper alloy | Polycarbonate Mechanical Specifications Plug Insertion Life, minimum 750 times Plug Retention Force, minimum 133 N | 29.9 lbf Environmental Specifications Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F) Environmental Space Low Smoke Zero Halogen (LSZH) Flammability Rating UL 94 V-0 Packaging and Weights Packaging quantity 1
