Sorry! This product is not available.
Available Soon
Product Overview

Specifications: Model: SZ305 Material: ABS AC Voltage: 200mV-750V, 0.1mV-1V, ±(1.5%+5d) DC Voltage: 200mV-1000V, 0.1mV-1V, ±(1.5%+10d) AC Current: 200uA-10A, 0.1uA-10mA, ±(2.5%+10d)  DC Current: 200uA-10A, 0.1uA-10mA, ±(2.0%+10d)  Resistance: 200MΩ, 0.1Ω-100kΩ, ±(5.0%+10d)  Capacitor: 20mF, 0.01nF-10uF, ±(6.0%+20d)  Hz Frequency: 2kHz, 0.1Hz-1Hz, ±(1.5%+8d)  Diode: Yes hFE Triode: Yes Buzzer: Yes NCV Voltage: Yes Screen Backlight: Yes Data Retention: Yes Auto Power Off: Yes Low Battery Indication: Yes Max Cpunt: 1999 counts Power Supply: 2 * AAA batteries (Not included) BAT Battery: 1.5V / 3V / 9V / 12V battery detection Item Size: 188 * 91 * 38mm / 7.40 * 3.58 * 1.49in Item Weight: 158g / 5.57oz Package Weight: 240g / 8.46oz Package Size: 19.2 * 12.8 * 3.8cm / 7.56 * 5.04 * 1.49in

Highlights

  • Multifunction: This digital multimeter can test AC/DC voltage, AC/DC current, diode, resistance, capacitance, buzzer, frequency, hFE Triode measurement.

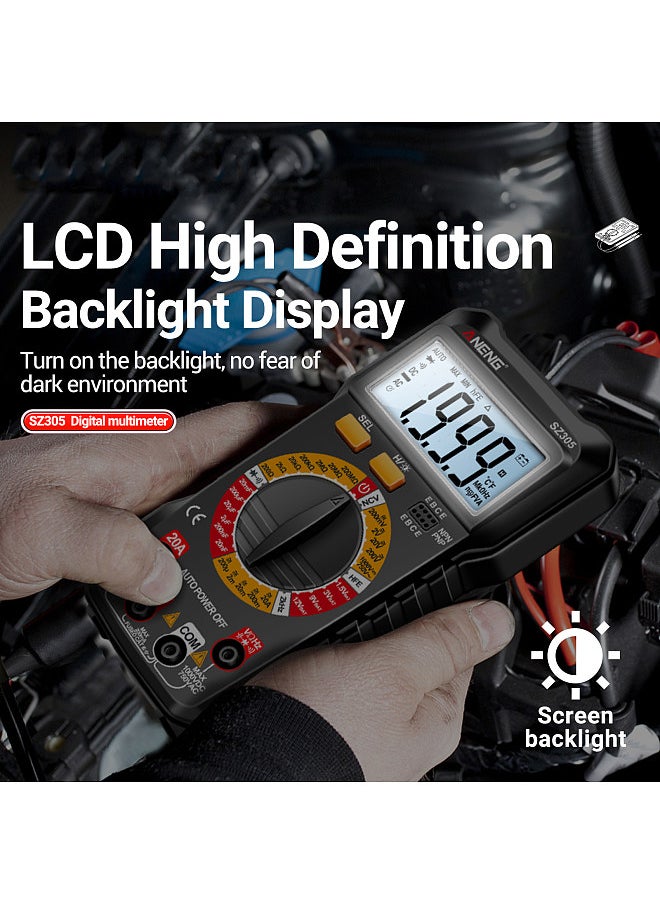

  • LCD High Definition Backliaht Screen: Long press the backlight button to turn on the backlight, and the screen value can be seen clearly in a dark environment.
  • Back Shrink Support Frame: It can be tilted and placed on the table during measurement, which is convenient for standing operation.

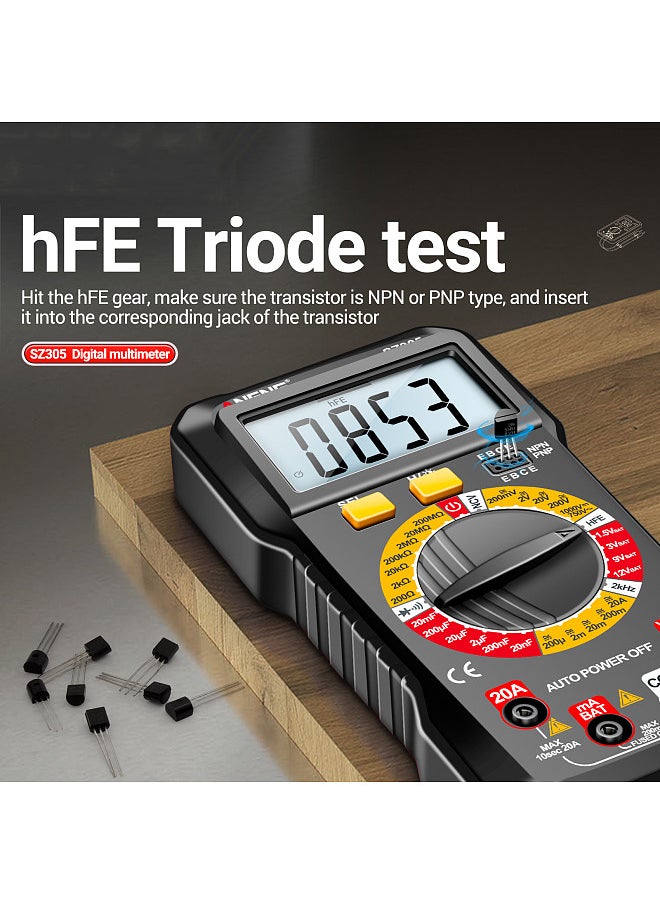

  • HFE Triode test: Hit the HFE gear, make sure the transistor is NPN or PNP type, and insert it into the corresponding jack of the transistor.

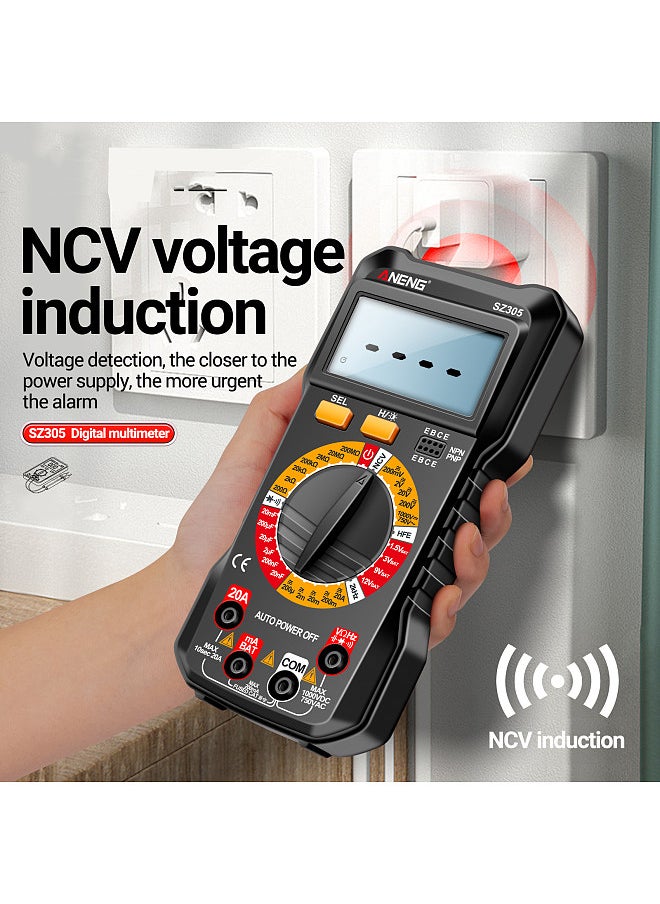

  • NCV Non-contact Voltage Sensing: When the AC voltage is detected, there is an alarm sound, and the closer the power supply is, the more urgent the alarm will be.

Specifications

Colour NameBlack
What's In The Box1 * Multimeter 2 * Test Leads 1 * Packing Box 1 * User Manual (English)
Model NameSZ305
Country of OriginChina
Model NumberSZ305
