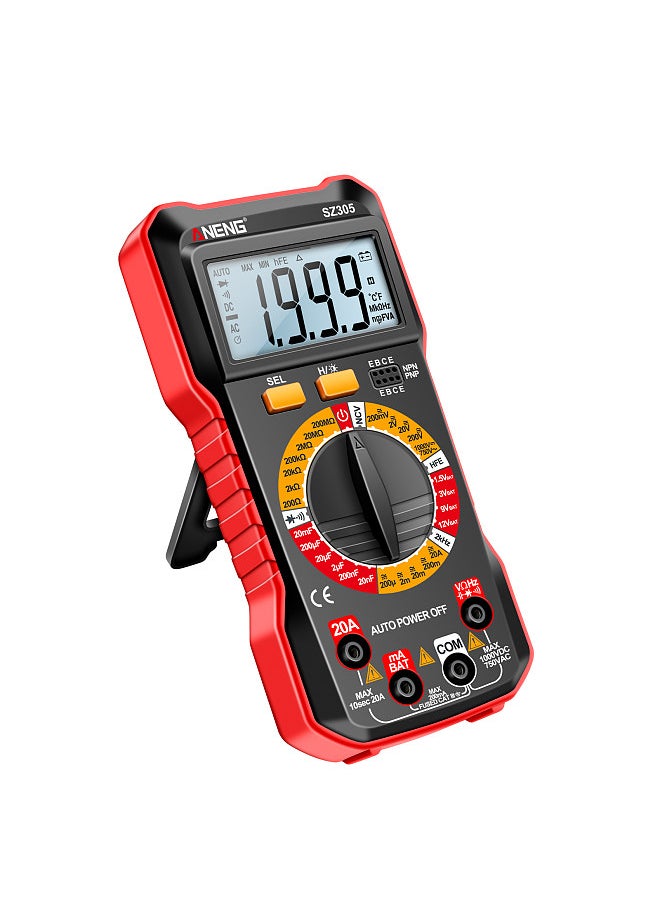

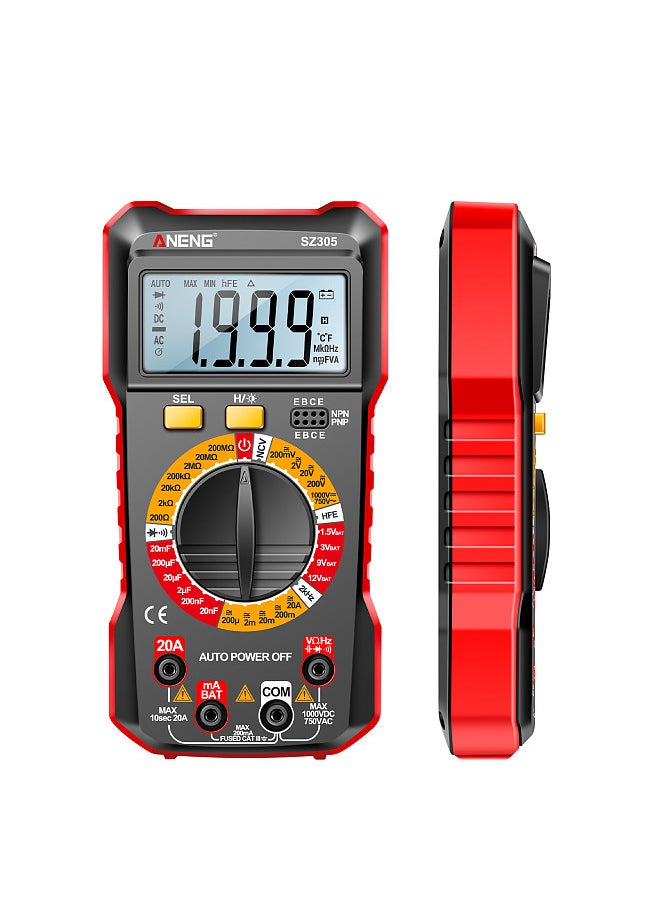

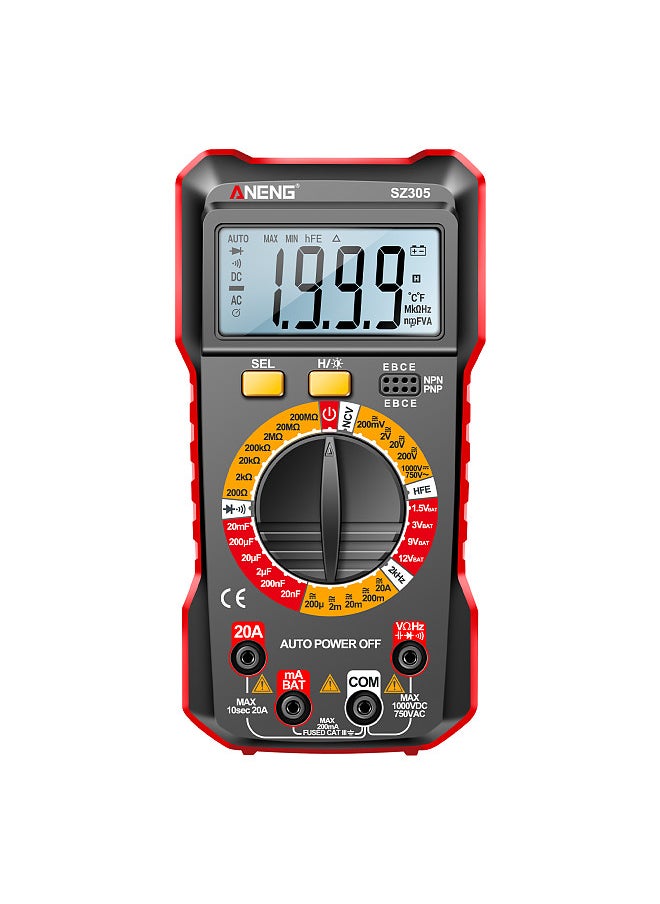

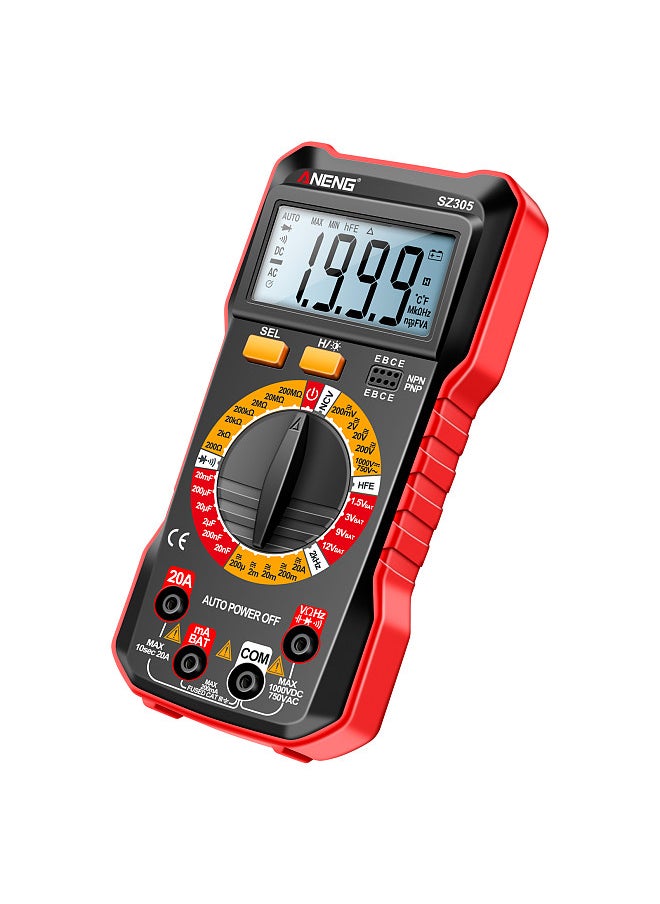

Highlights- Multifunction: This digital multimeter can test AC/DC voltage, AC/DC current, diode, resistance, capacitance, buzzer, frequency, hFE Triode measurement.
- LCD High Definition Backliaht Screen: Long press the backlight button to turn on the backlight, and the screen value can be seen clearly in a dark environment.

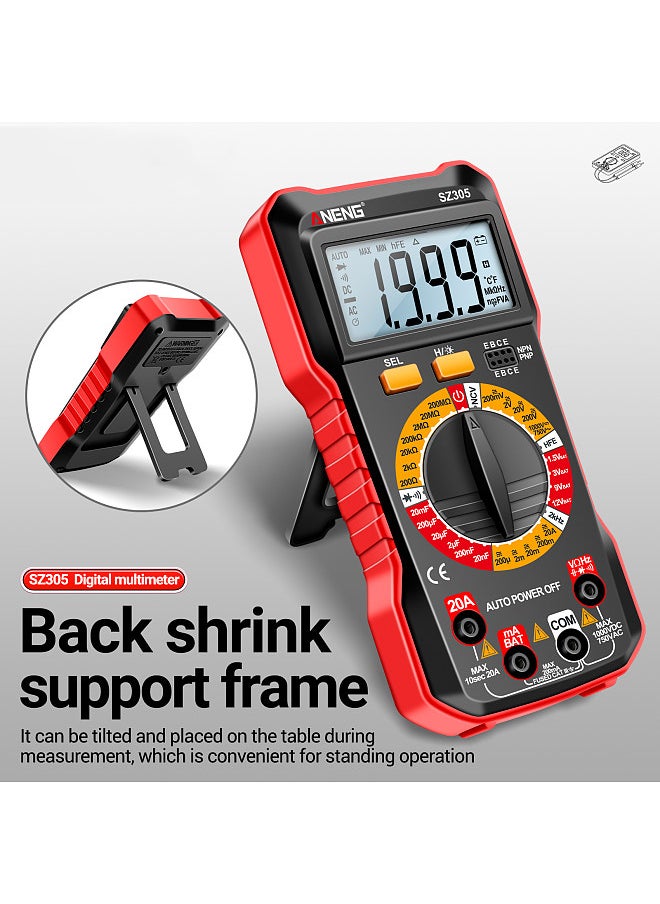

- Back Shrink Support Frame: It can be tilted and placed on the table during measurement, which is convenient for standing operation.
- HFE Triode test: Hit the HFE gear, make sure the transistor is NPN or PNP type, and insert it into the corresponding jack of the transistor.
- NCV Non-contact Voltage Sensing: When the AC voltage is detected, there is an alarm sound, and the closer the power supply is, the more urgent the alarm will be.
OverviewSpecifications:
Model: SZ305
Material: ABS
AC Voltage: 200mV-750V, 0.1mV-1V, ±(1.5%+5d)
DC Voltage: 200mV-1000V, 0.1mV-1V, ±(1.5%+10d)
AC Current: 200uA-10A, 0.1uA-10mA, ±(2.5%+10d)
DC Current: 200uA-10A, 0.1uA-10mA, ±(2.0%+10d)
Resistance: 200MΩ, 0.1Ω-100kΩ, ±(5.0%+10d)
Capacitor: 20mF, 0.01nF-10uF, ±(6.0%+20d)
Hz Frequency: 2kHz, 0.1Hz-1Hz, ±(1.5%+8d)
Diode: Yes
hFE Triode: Yes
Buzzer: Yes
NCV Voltage: Yes
Screen Backlight: Yes
Data Retention: Yes
Auto Power Off: Yes
Low Battery Indication: Yes
Max Cpunt: 1999 counts
Power Supply: 2 * AAA batteries (Not included)
BAT Battery: 1.5V / 3V / 9V / 12V battery detection
Item Size: 188 * 91 * 38mm / 7.40 * 3.58 * 1.49in
Item Weight: 158g / 5.57oz
Package Weight: 240g / 8.46oz
Package Size: 19.2 * 12.8 * 3.8cm / 7.56 * 5.04 * 1.49in
