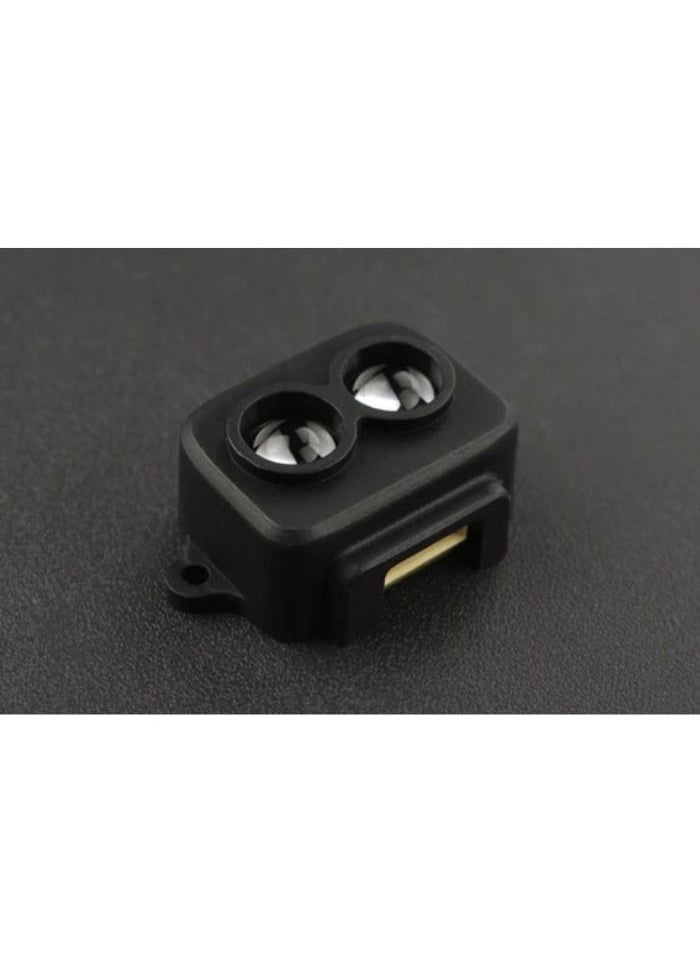

TF-LUNA (TOF) MICRO SINGLE-POINT RANGING LIDAR (8M)

OverviewTF-Luna is a single-point ranging Lidar, based on ToF principle. With unique optical and electrical design, it can achieve stable, accurate, and highly sensitive range measurement. Small TF-Luna, weight as light as <5g. High Performance High stability and high sensitivity. TF-Luna Detection distance is up to 8m, the blind zone is 0.2m, and distance resolution is 1cm. The standard deviation of TF-Luna at 90% reflectivity High precision TF-Luna can detect objects with a minimum edge length of 3.5 cm within a detection distance of 1m; TF-Luna can detect objects with a minimum edge length of 28 cm within a detection distance of 8m; he relationship between the detect distance and effective length of objects. Easy to get start, high level of generality The power supply voltage of TF-Luna is 5V, equipped with UART communication interface, the communication level is 3.3V. TF-Luna is compatible with Arduino, Raspberry Pi and other platforms. Application Scenarios Robot: Robot obstacle avoidance, Robot anti-drop protection UAV: UAV obstacle avoidance, UAV altitude setting Smart City: Smart toilets, Smart trash bins Smart Retail: Smart ad trigger, Smart mirror trigger SPECIFICATION Distance Resolution: 1cm Frequency: 100Hz Ambient Light Resistance: 70klux Detecting Range: 0.2~8m Weight: ＜5g FoV: 2° Supply Voltage: 5V±0.1V Data Interface: UART/ I²C Accuracy: ±6cm@(0.2m-3m)
