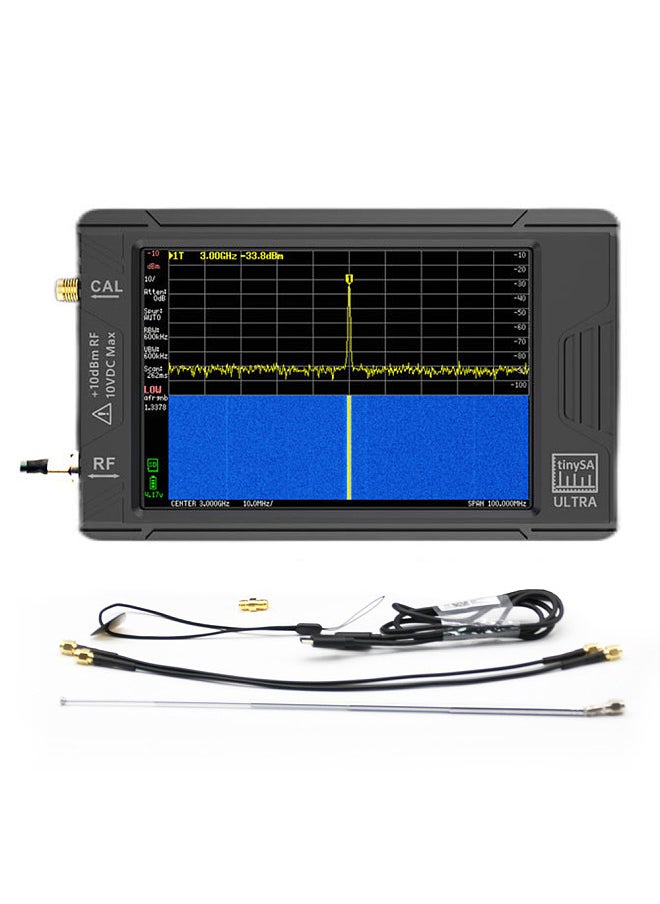

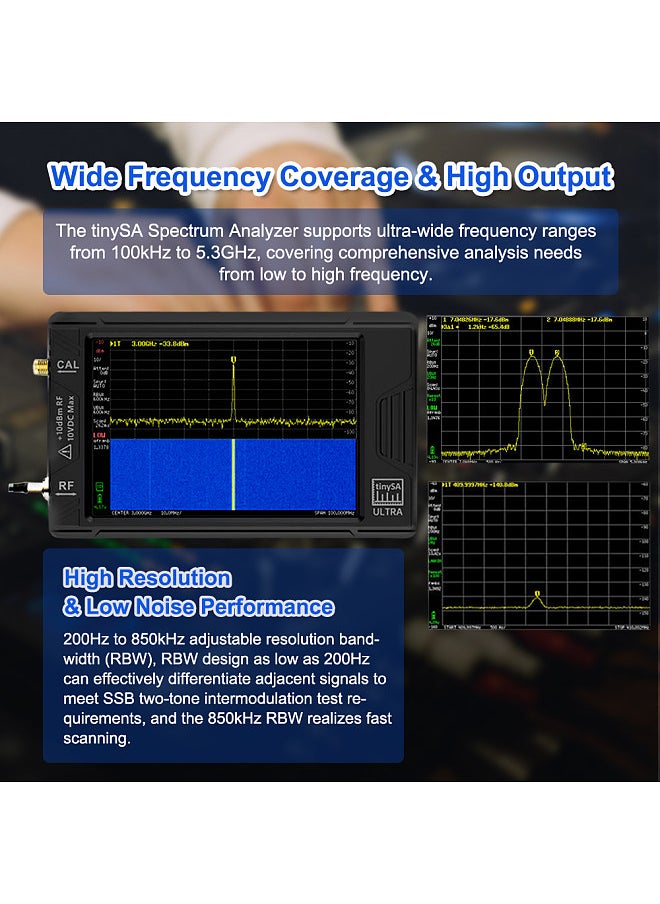

tinySA Portable Spectrum Analyzer Handheld 100k-5.3GHz High Frequency Signal Generator Built-in LNA

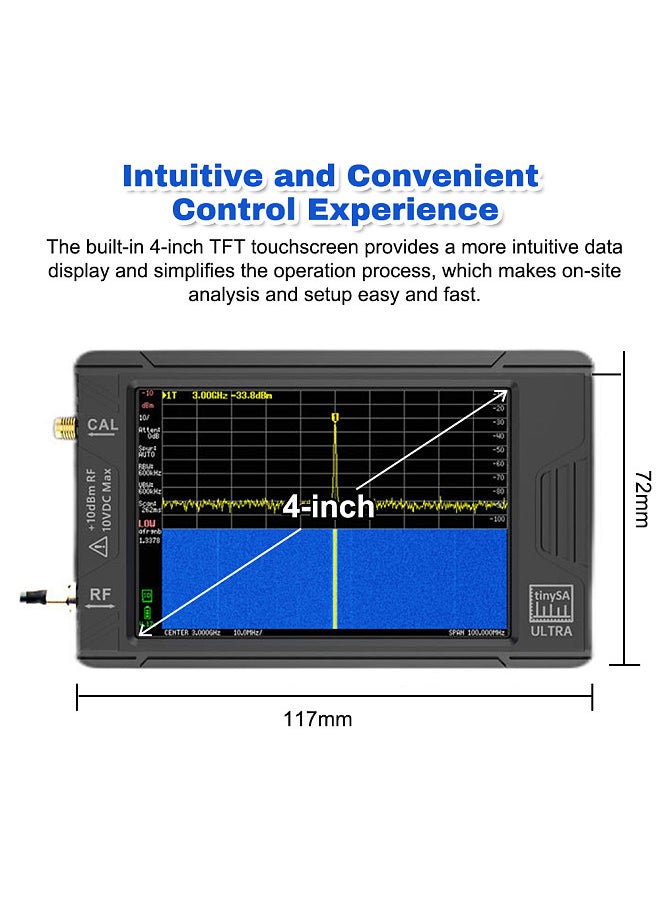

Specifications: Name: Spectrum Analyzer Material: plastics Battery: 1 * 3.7V, 3000mAh li-polymer battery (included) Display: 3.95inch TFT LCD 480*320 Max onput frequency: sinus up to 800MHz, squarewave up to 4.4GHz Output level: -104dBm to -16dBm Ultra mode: level calibrated up to 5.3GHz Internal LNAgain: 20dB up to 4GHz Displayed points per scan: max 450 0-350MHz scan time: 165ms DANL at 100MHz: -153dBm/Hz(LNA Off) / -169dBm/Hz (LNA On) DANL degrading in ultra mode: 10dB above 2.5GHz, 25dB above 5.3GHz Phase noise at 10kHz offset: -92dBc/Hz Phase noise at 100kHz offset: 110dBc/Hz IIP3 without LNA: +18dBm (at least 2MHz apart) /OdBm (500Hz apart) IIP3 with LNA: -8dBm (at least 2MHz apart) Frequency stability: ＜1ppm (-10℃ to +55℃) Audio out: 3.5mm headphone plug FW update mode activation: Push jog button before switch on Maximum current consumption: 330mA Maximum charging current: 1300mA Commumication interface: Type-C, UART-TTL (2.54mm Connector) Item size: 117 * 72 * 23mm / 4.61 * 2.83 * 0.91in Package size: 110 * 160 * 60mm / 4.33 * 6.30 * 2.36in Package weight: 350g / 12.35ounce
