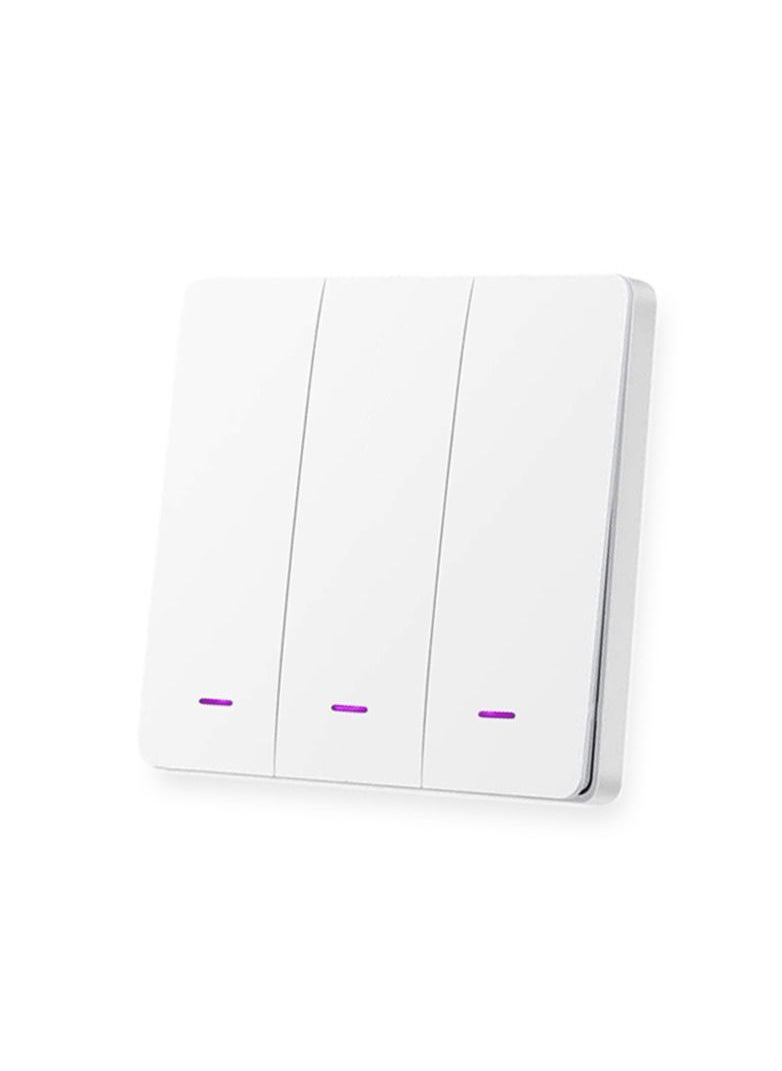

Smart Switch Tuya Wifi Light Wall Switch No Neutral Wire Required App and Voice Remote Control 3 Gang

OverviewHow to connect the smart switch to Smart Life App:

1. Download the App “Smart Life”;
2. Long press one of the on/off button until the blue wifi indicator blinks quickly.
3. Then open smart Life APP tap “+”and select "wifi switch”to add.
4. Choose 2.4ghz wifi router user name and password;
5. Confirm wifi indicator on smart light switch rapidly blink， tap “Next” on smart phone screen;

Caution
1.Keep The Power Off Until You Finish The Installation Otherwise The Switch May Fail;

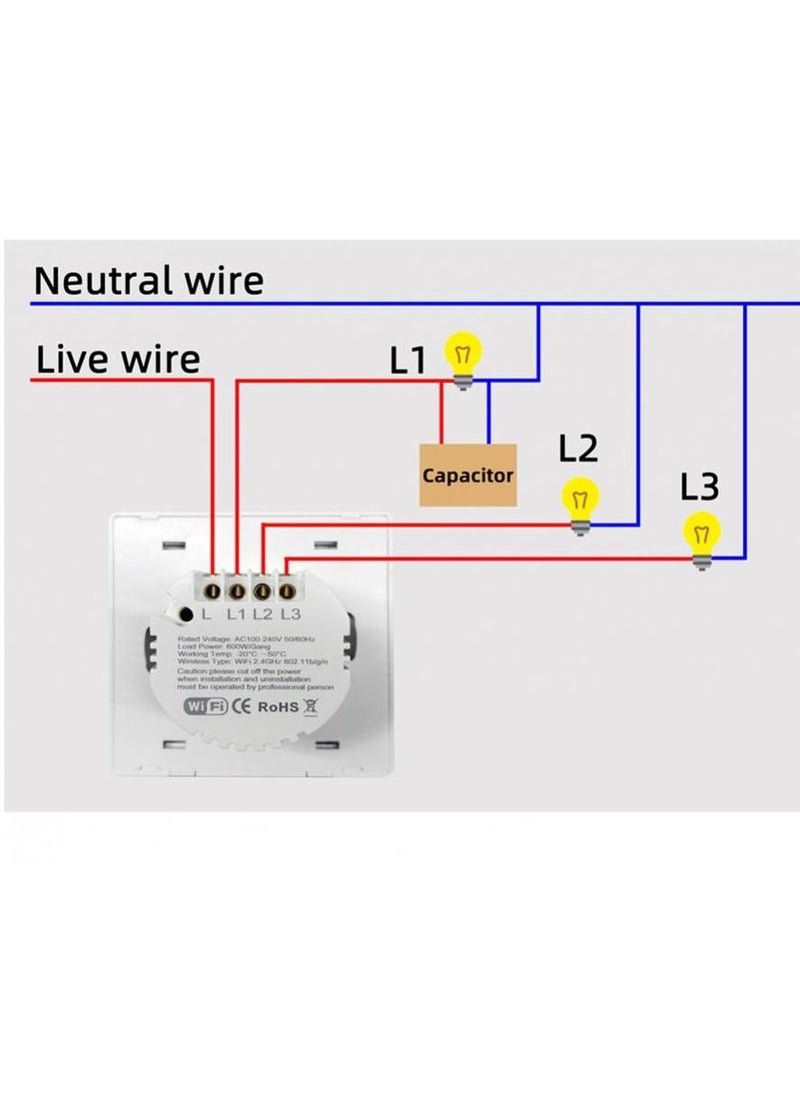

2.For no neutral switch, The Wifi Switch capacitor(inside the box) Should Be Installed To The Terminal "L1".
3.It is Activated by Pressing And Holding On The Glass Panel until it starts to flashing then connect to the Smart Life App.
4.WiFi Switch ONLY works with a 2.4GHz wifi networks when connecting to the app.

Voltage: AC 100-240V 50/60Hz;
Rated Current; 10A
Gang: 1-Gang / 2-Gang / 3-Gang;
Standby power consumption: 0.5W/Hour;
Working Temperature: -20°C - 50°C;
Working humidity: 5%-95% RH，non-condensing;
WIFI Standard: IEEE 802.11bgn 2.4GHz;
Dimension: 86*86*40mm;
Hub requirement: No;
Control Mode: APP/Manual;
Installation method: Embedded（86type）EU UK mounting box;
Voice Control: Alexa、Google Assistant、SmartThings;
APP: TuyaSmart/Smart Life;
