Mechanical Dimensions Ø48.5 x 159.5 mm (Ø1.9 x 6.3") Weight 400 g (14.1 oz) Enclosure material Polycarbonate, aluminum Mount material Polycarbonate Weatherproofing IPX5 Hardware Networking interface (1) GbE RJ45 port Management interface Ethernet Bluetooth Power method PoE Power supply UniFi PoE switch 48V, 0.32A PoE adapter (Included) Supported voltage range 44—57V DC Max. power consumption 13W Max. TX power 2.4 GHz 5 GHz 6 GHz 22 dBm 26 dBm – MIMO 2.4 GHz 5 GHz 6 GHz 2 x 2 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) – Max. data rate 2.4 GHz 5 GHz 6 GHz 573.5 Mbps (BW40) 4.8 Gbps (BW160) – Antenna gain 2.4 GHz 5 GHz 6 GHz 3 dBi 5 dBi – LEDs White/blue Button Factory reset Mounting Wall, desktop, pole (Included) Ceiling (Optional) Ambient operating temperature -30 to 60° C (-22 to 140° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC Software WiFi standards 802.11a/b/g/n/ac/ax (WiFi 6) Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) BSSID 8 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Concurrent clients 300+ Zero wait DFS Yes* *Supported with upcoming firmware versions Supported Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

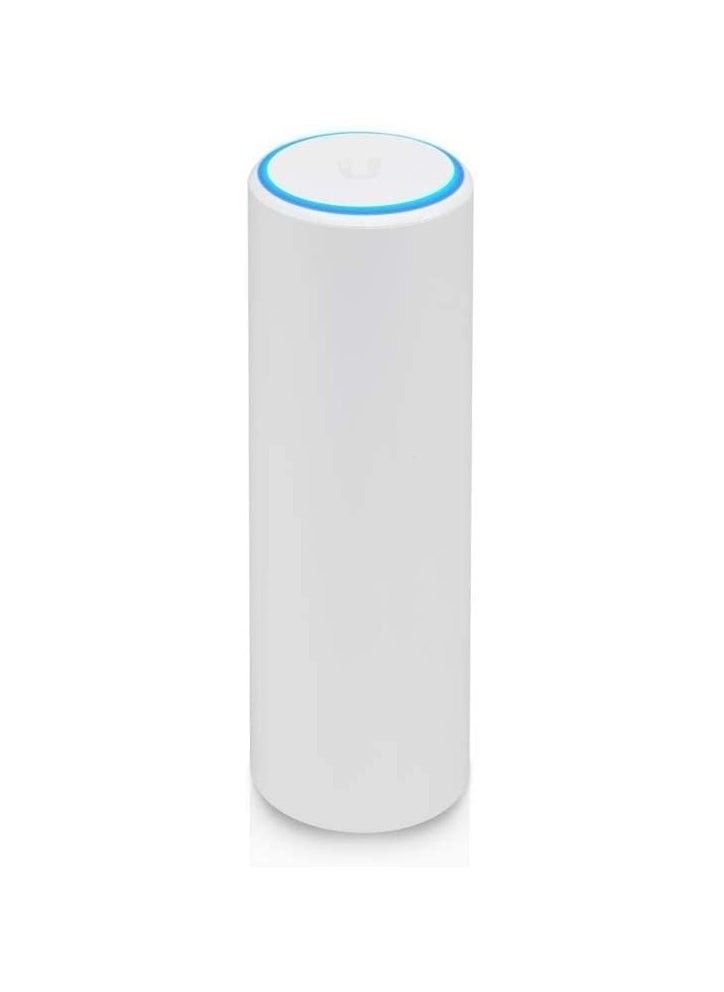

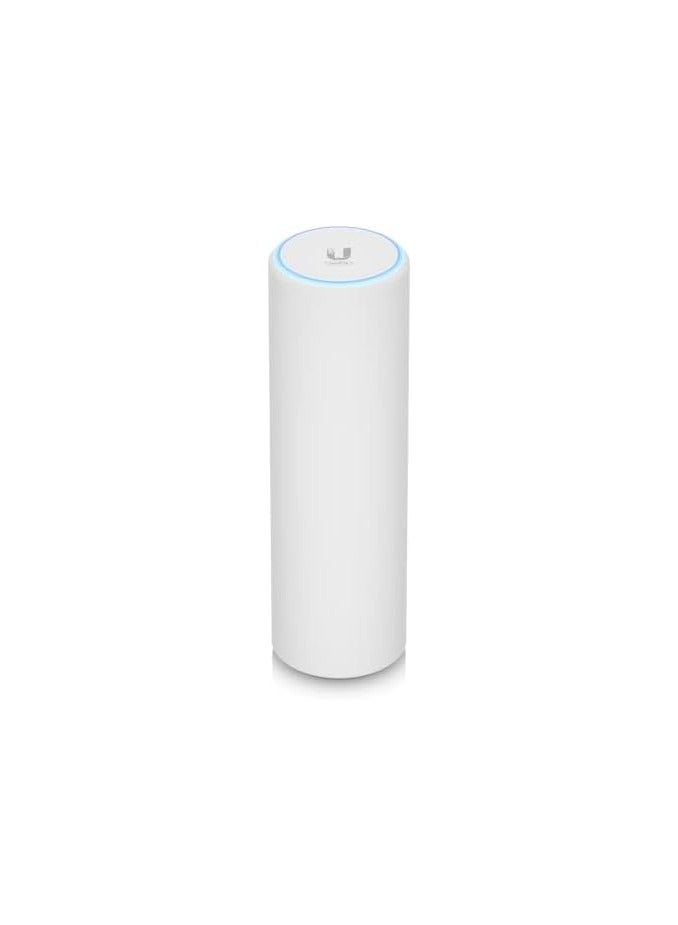

OverviewThe Access Point Wi-Fi 6 Mesh (U6 Mesh) is a high-performance, four-stream Wi-Fi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality Wi-Fi connectivity. It can be set up in minutes and fully managed with the Uni-Fi Network web application or mobile app
Specifications
Set Includes
WPS
Wireless Technology
WiFi 6
Wireless Standard
AX
Model Number
U6 Mesh
Model Name
U6 Mesh
Wireless Standard Value
802.11
