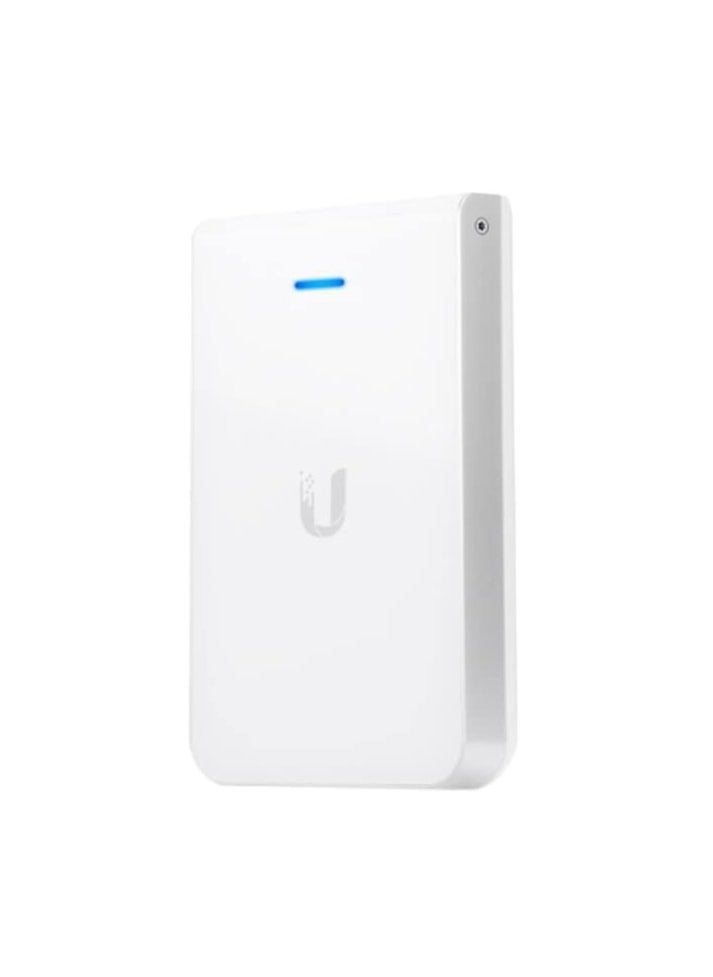

Ubiquiti Networks UniFi in-Wall Wi-Fi Access Point 802.11AC Wave 2 (UAP-IW-HD-US)

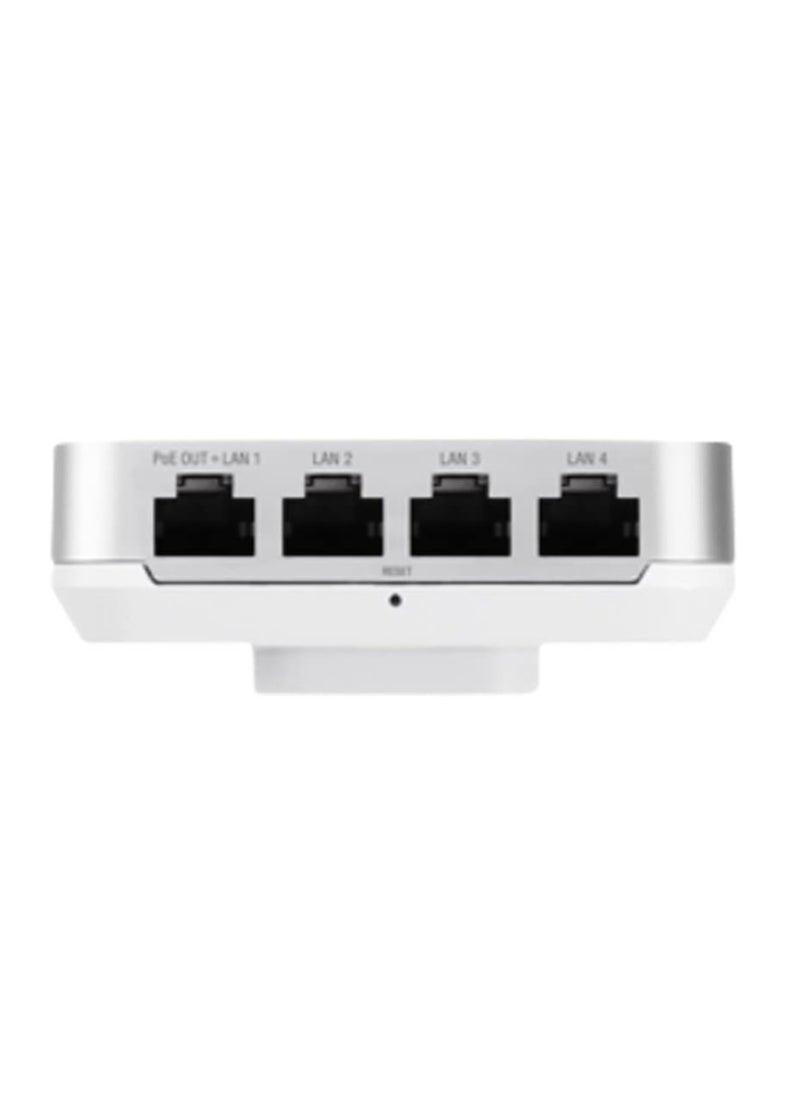

Overview Dual-band, 802.11ac Wave 2 access point with a 2+ Gbps aggregate throughput rate that can be plugged into any non-AC wall outlet. The Access Point In-wall HD (UAP IW HD) is a dual-band, 802.11ac WiFi access point that can be plugged into any non-AC wall outlet. The UAP IW HD can reach a 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (2x2 MIMO) bands, which allows it to support over 200 concurrently connected clients. This access point is powered by 802.3af PoE* and is equipped with (5) GbE RJ45 ports, including one for configurable 48V PoE passthrough. The UAP IW HD is the perfect plug-and-play access point for those looking for an easy-to-use, inconspicuous way to broaden their wireless coverage. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app. Dual-Band Antennas (2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each Single-Band Antennas (2) Single-Port, Dual-Polarity, Single-Band Antennas, 5 GHz: 6 dBi Each Wi-Fi Standards 802.11 a/b/g/n/r/k/v/ac/ac-wave2 Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF BSSID Up to 8 per Radio Mounting 1-Gang Electrical Wall Box (Not Included) Operating Temperature -10 to 60° C (14 to 140° F) Operating Humidity 5 to 95% Noncondensing Certifications CE, FCC, IC Advanced Traffic Management VLAN 802.1Q Advanced QoS Per-User Rate Limiting Guest Traffic Isolation Supported WMM Voice, Video, Best Effort, and Background Concurrent Clients 200+ Supported Data Rates (Mbps) 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
