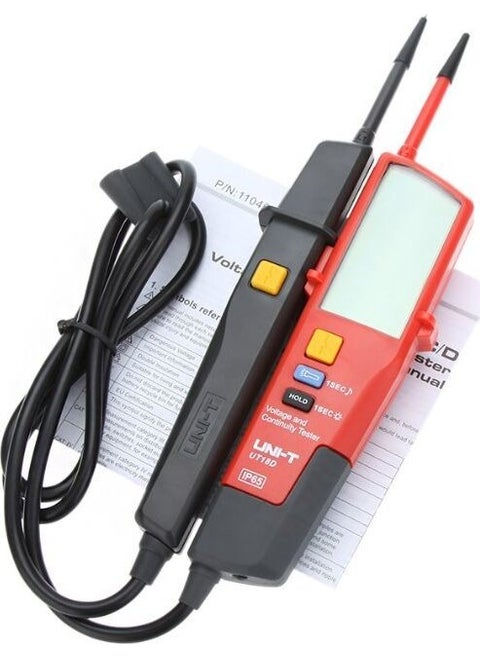

Uni-T Ut 18D LCD Digital Voltage & Continuity Tester Ut18D

Uni-T Ut 18D LCD Digital Voltage & Continuity Tester Ut18D

model		UT18D
LED AC / DC Voltage Indicator (V)	12V	8V±2V
	24V	18V±2V
	50V	38V±4V
	120V	92V±6V
	230V	174V±8V
	400V	320V ± 10V
	690V	550V±15V
Phase Rotation Test	Working Voltage: 100V ~ 690V	√
	Frequency: 50Hz~60Hz
Single Lead (L2) Voltage Detection	Working Voltage: 100V ~ 690V	√
	Frequency: 50Hz ~ 400Hz
Continuity Test	Resistance: 0 ~ 100KΩ	√
	Warning and LED light Indicator
RCD Test	Working Voltage: 230V (50Hz ~ 400Hz)	√
Polarity Detection	Positive Negative	√
Self-control	All LED or LCD display	√
Features
IP65		√
Auto Land	All Distance	√
Overvoltage	Voltage Range: 713V ~ 788V	√
Automatic standby	standby current<10uA	√
silent mode	All Distance	√
work light	All Distance	√
Low Battery Indicator	Voltage Range: 2.2V ~ 2.4V	√
LCD Backlight	All Distance	√
LCD Display (Voltage + frequency)	6V~690V (40Hz~400Hz)	(± 1.5 + 5%)
General Characteristic
Power	1.5V Batteries (R03) × 2
LCD Size	73.5 x 35.5mm
Item Color	Red and Gray
Product Net Weight	280g
Product size	272mm x 85mm x 31mm
Standard accessories	Batteries
Standard Individual Packing	Blister, English Manual
