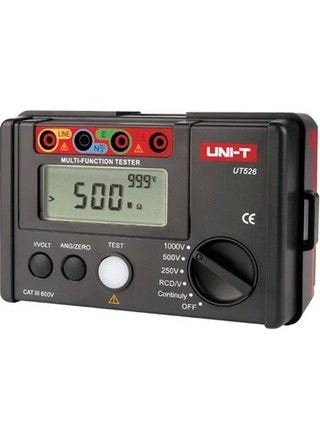

Uni-T Ut-526 Soil Meger

Uni-T Ut-526 Soil Meger

Basic Functions	Measuring Range	Best Accuracy
Insulation Resistance Measurement	Test Voltage 250V/500V/1000V	±(10%+0)
Test Current 100V (R=100kW); 1mA
250V (R=250kW); 1mA
500V (R=500kW); 1mA
1000V (R=1MW); 1mA	±(10%+0)
±(10%+0)
±(10%+0)
±(10%+0)
Test Current Short Circuit <2mA	tic
250V 0.05MW ~ 200MW
500V 0.05MW ~ 300MW
1000V 0.05MW ~ 500MW	±(5%+5)
±(5%+5)
±(5%+5)
RCD	Operational Voltage 220V±10% / 45Hz ~ 65Hz	tic
Test Current 10mA/30mA/100mA/300mA	0~10%
Trip Time 0ms--2000ms, 1?n General (10mA)	±(5%+2)
Earth Resistance Measurement	Test Voltage Around 5.0V	tic
Test Current >200mA (R<2W)	tic
Continuity Resistance Range 0.00W ~ 2000W (UT526)	±(2%+5)
Voltage Measurement	AC/DC Voltage 0~440V	±(2%+3)
frequency	Reference only
Special Functions
AC or DC Judgment	Voltage Measurement	tic
Test Light		tic
Phase Switch (RCD)	0° and 180°	tic
Low Battery Display		tic
